Troubleshooting Overview
Troubleshooting Overview

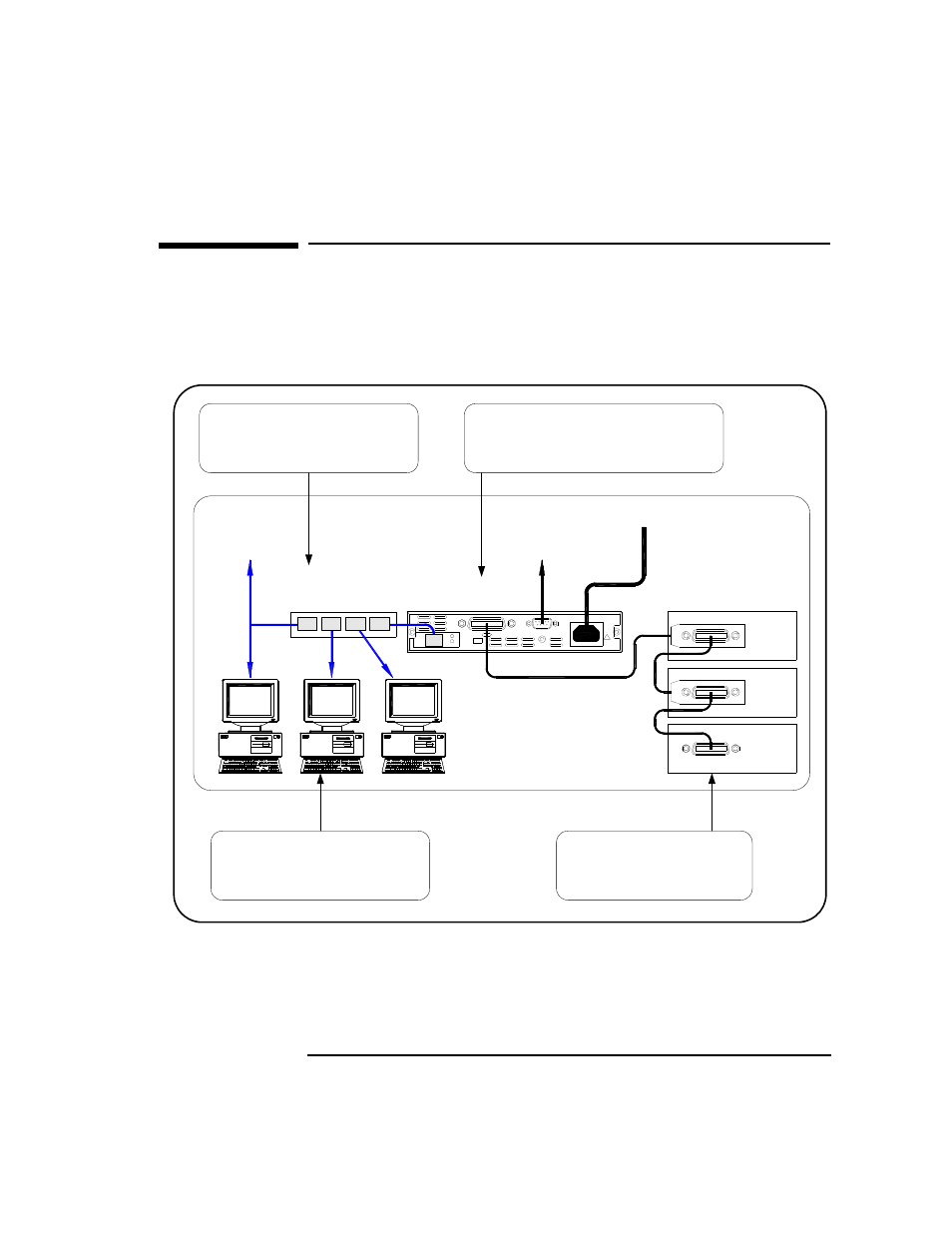

This figure shows a typical network configuration using the E5810 and
shows suggested sequence of steps to troubleshoot the system to
determine if the cause is with the client PC, with the network, with the
E5810, or with connected instruments.
LAN
Tx
Ln
GP IB
RS232
!
POWER
GPIB
GPIB
GPIB
GPIB Instruments
Typically Hub or
Switch
OR
To Enterprise
Network
Instrument
To RS-232
To AC Power
GPIB
LAN
E5810A
Checking the E5810
- Check Front and Rear Panel Displays
- Check E5810 Parameters
Checking the Network
- Check Web Browser Settings
- Check Other Network Problems
Checking PC Clients
- Verify PC Client Connections
- Check syslog Messages
Checking Instruments
- Check GPIB Instruments
- Check RS-232 Instrument
