4 Operation of the converter
4.1 Operation and menu structure of the CONVERTER with LCD
4.1.1 Operation
The current measurement, volume counter, and diagnosis values can be displayed on the
two-line LCD on the front of the CONVERTER. You can select the values you want to display using
a magnetic pen while the front cover is kept closed or using the buttons while the front cover
is open (see Fig. 8.2).
Important
When the CONVERTER housing is open, there is no EMC protection or protection against electric
shock!

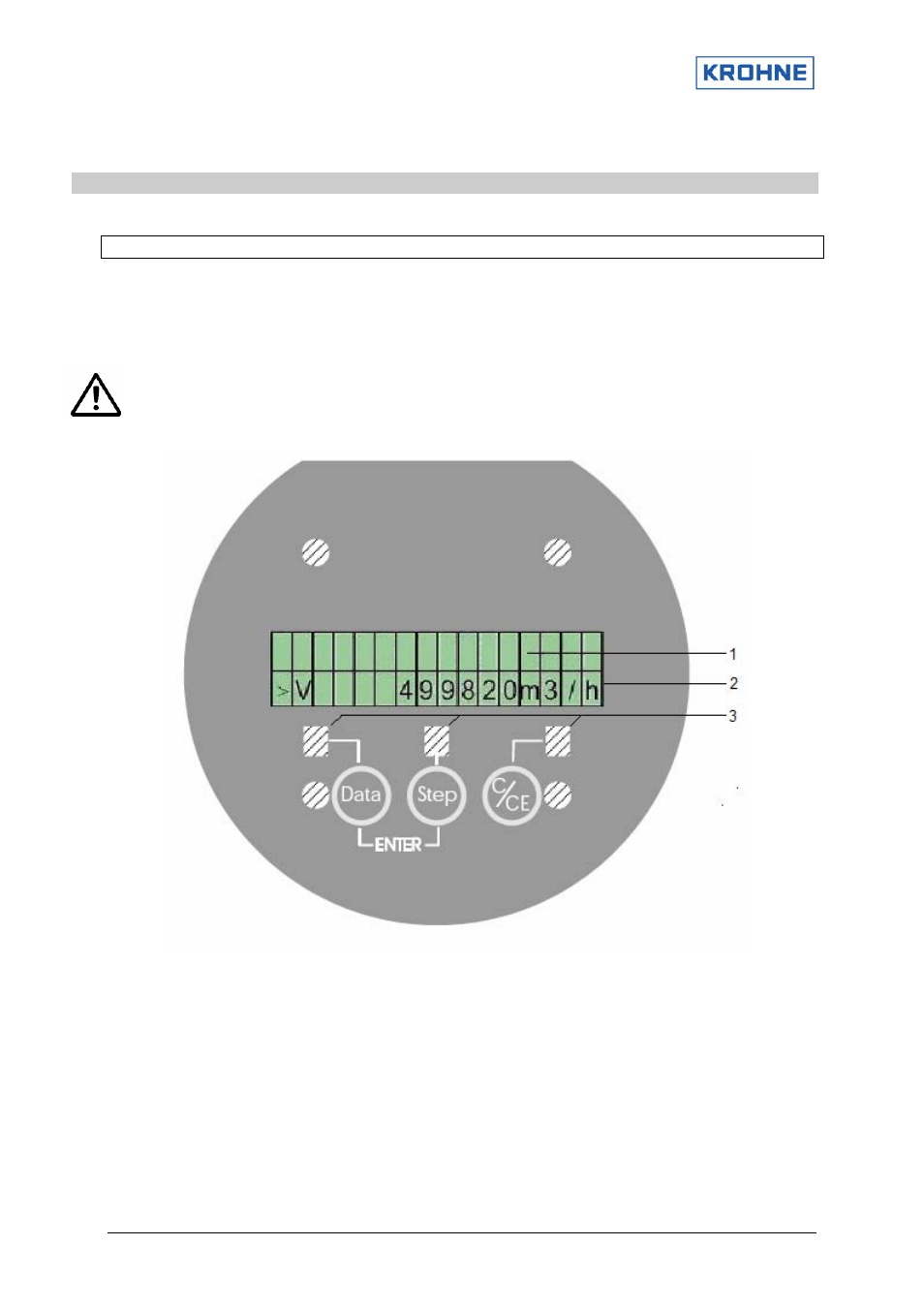

Fig. 4.1 : Front panel with LCD
1. Selected measured value / device status
2. Current measured value
3. Control area for operation by a magnetic pin
The control panels and buttons have the following functions:
• C/CE control panel/ button
Used to call up the menu from the measured value display. Within the menu, you can go
back a level, or return from the top level menu to the measured value display.
IMPORTANT
