66

pump direction is reversed by putting a tick in the box adjacent to reverse direction this will send the

sample back to the sample container.

When the required settings have been entered click on OK to save. Click on Cancel to return to the

sipper pump accessory screen without saving any of the settings.

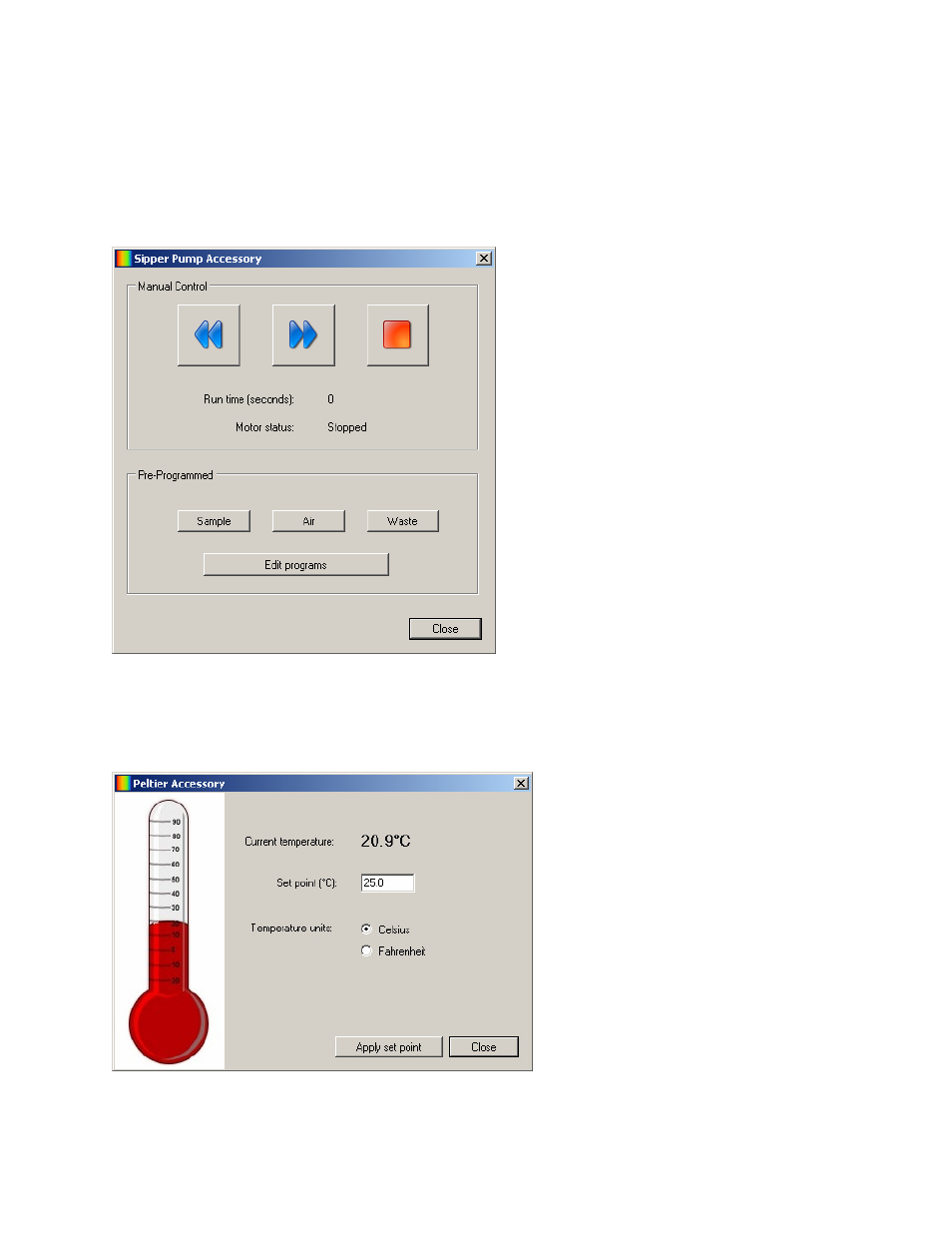

In the Pre-Programmed section clicking on

the sample button will make the instrument

follow the parameters set under program 1.

Clicking on the air button will make the

instrument follow the parameters set under

program 2. Clicking on the waste button

will make the instrument follow the

parameters set under program 3. To stop

any of these actions click on the stop

button.

To exit the sipper pump control click Close.

This control must be closed before

measurements can be performed.

12.3

Peltier

The peltier accessory is used to heat sample.

To open the control for the accessory

click on the Accessories tab on the

toolbar at the top of the screen and

click on the Peltier accessory.

Type the required set point into the

text box and click on Apply set point.

Depending

on

the

current

temperature the peltier will begin

either heating or cooling.

The

temperature

units

can

be

changed by clicking in the circle

adjacent to Celsius or Fahrenheit.
