31

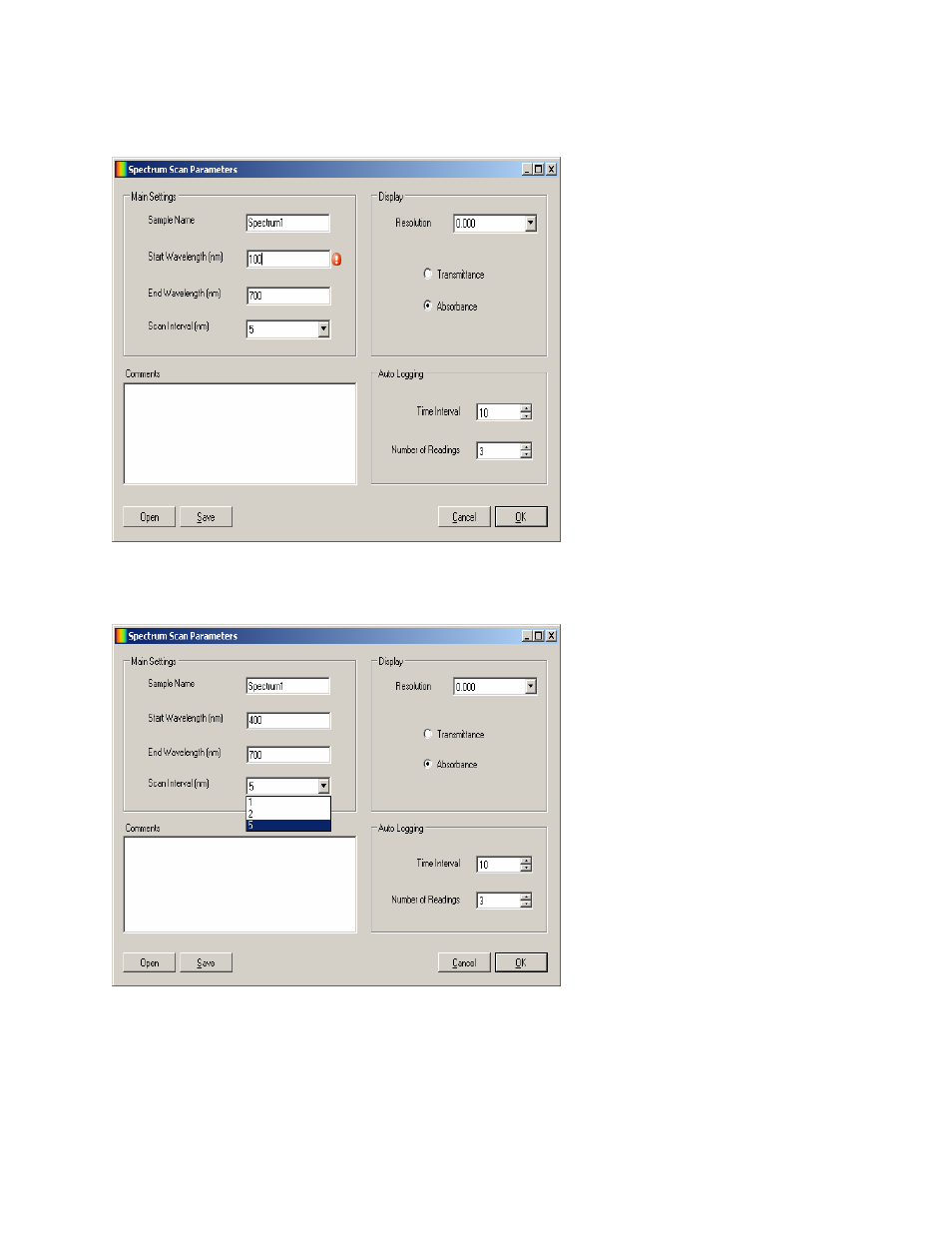

5.1.2

Setting start and end wavelengths

This function enables the start

and end wavelengths of the

spectrum scan to be set. To

select the wavelength range that

the baseline scan and sample

scan will be performed across

type

the

start

and

end

wavelengths into the text boxes. If

a value entered is outside of the

range of the spectrophotometer

an error icon will be displayed and

this must be corrected before the

settings screen can be exited.

Only numeric values can be

entered.

5.1.3

Setting the scan interval

This function enables the interval

between wavelengths measured

in the spectrum scan to be set.

The scan interval is selectable

between 1, 2 or 5nm. Click on the

arrow on the drop down box to

select the scan interval required.
