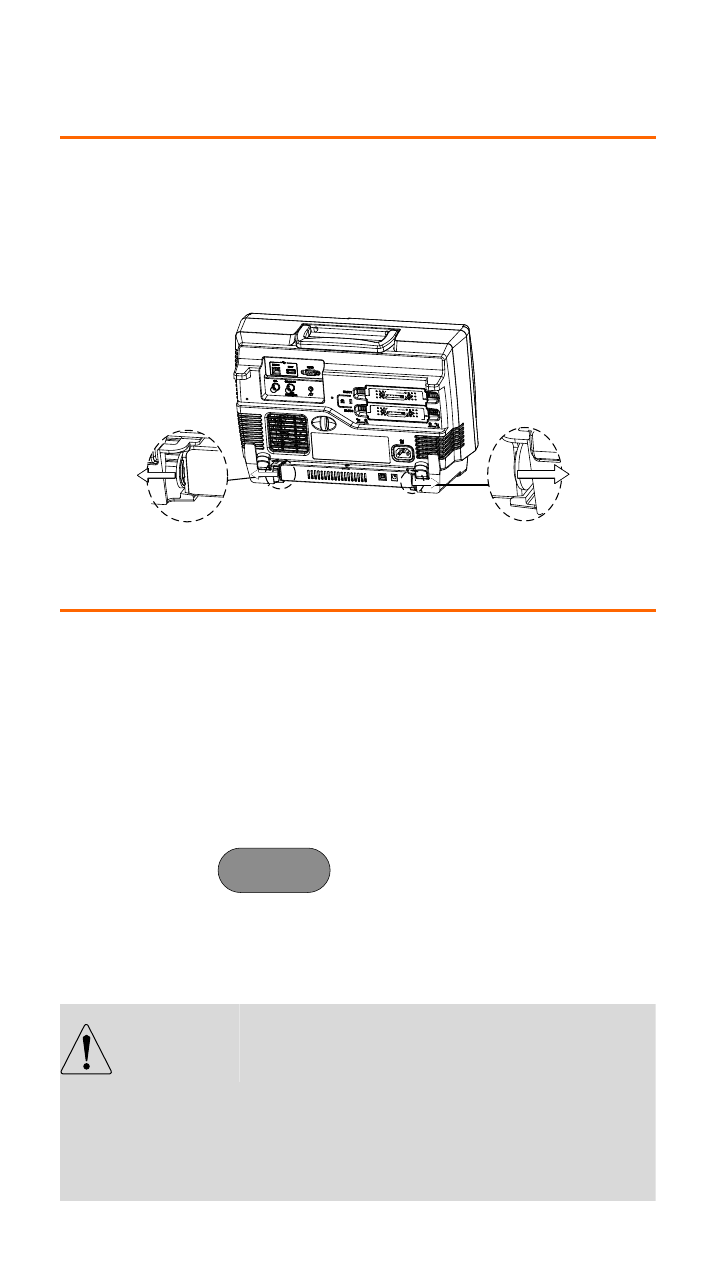

Removing an Installed Module
1. At the rear of the housings are two tabs. Pull both
tabs outwards.
2. The module can now be slid out from the
housing.
USB Configuration
The USB Device port needs to be configured to provide
power for the AFG-125/225 if an external power
supply is not used.
1. As shown previously in the “Installing the AFG-
125/225 Module” section, connect the GTL-254
USB cable.
2. Press the Utility key and select USB Device
Port > USB Power.
The USB device port will now supply power to
the AFG-125/225.
Caution
The USB Device Port should be
reconfigured to “Computer” or
“Printer” when the AFG-125/225 is
not used. Failure to do so may damage
the PC or printer when connected in
the “USB Power” mode.
