Fire-Lite DACT-UD2 Digital Alarm Communicator/Transmitter User Manual
Page 16

DACT-UD2 Installation
16
DACT-UD2 Communicator PN 53037:B 4/01/08
Important! The DACT-UD2 must not be used to dial a phone number that is call-
forwarded.

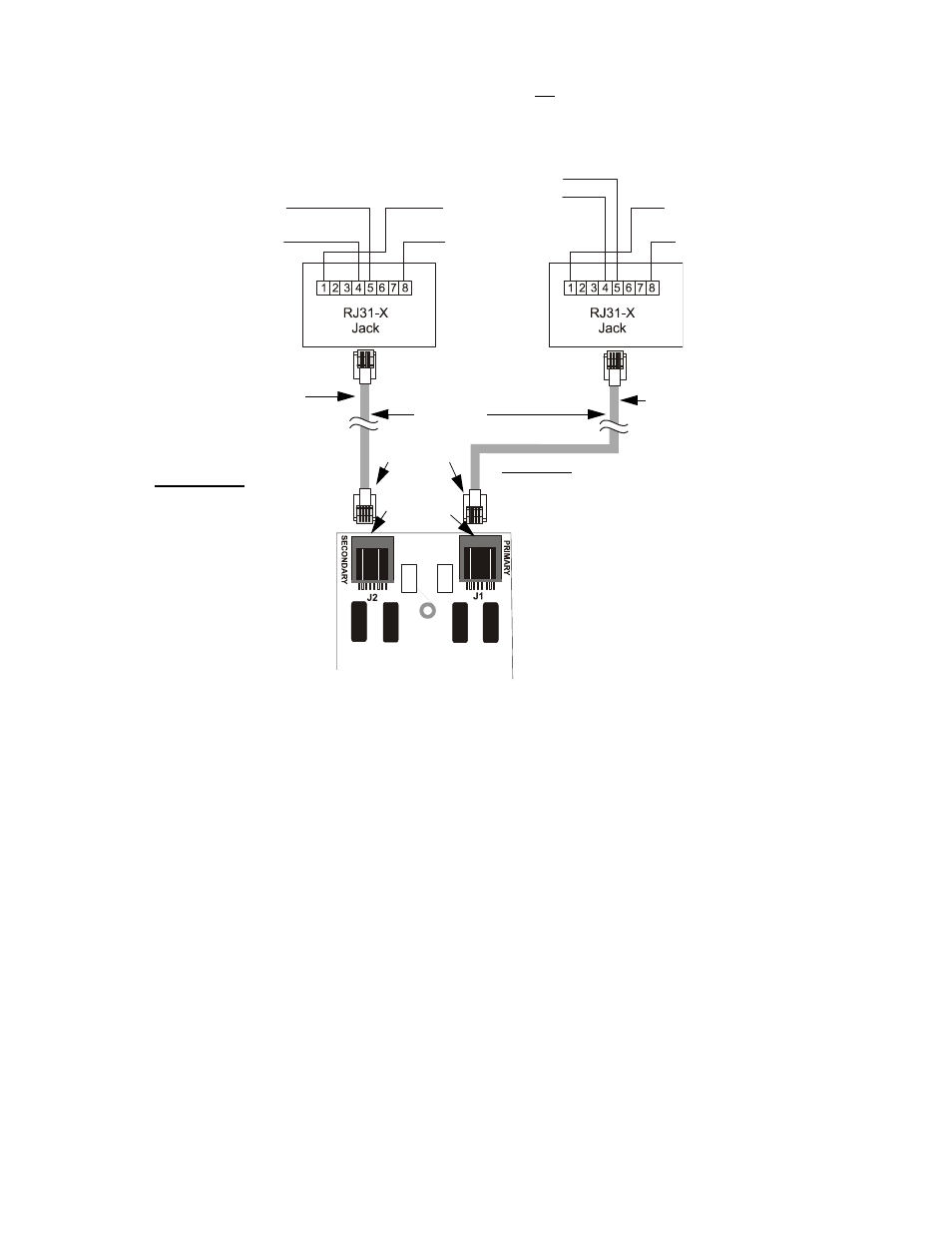

Figure 2.5 Wiring Phone Jacks
Green Wire
Red Wire
Green Wire
Red Wire
Tip
Ring
Ring
Tip
Ring
Tip
Tip
Ring
To premises phones
To premises phones
Secondary Lines
Incoming Telco Phone Lines
Primary Lines
Incoming Telco Phone Lines
Note: Shorting bars inside RJ31X Jack
removed during male plug insertion
Primary Phone Line PRI
Secondary Phone Line SEC
Male Plug
Connectors
Female
Connectors
7 foot cable
(MCBL-7)
order separately
DACT-UD2
CAUTION: It is critical that the DACT-UD2
be located as the first device on the incoming
telephone circuit to properly function
IMPORTANT: Improper use
of correct cable connector
will void Warranty!
