Installing the Charger
Mounting the Charger
14
CHG-120F Instruction 03/21/01 PN 50888:B0
Mounting the Charger
Mounting the Charger into a CAB-A3F or CAB-B3F A charger can be mounted into the
bottom row of a CAB-A3F or CAB-B3F Cabinet, as long as the charger is within 20 feet of
the load. Typically, a charger mounts into the lower right corner of the CAB-A3F or
CAB-B3F—next to the power supply (Figure 7, position 2). If using an additional
CAB-A3F or CAB-B3F, the charger can be mounted in the lower left corner (Figure 7,
position 2). Figure 7 shows the two mounting positions of a charger in a CAB-A3F or
CAB-B3F.

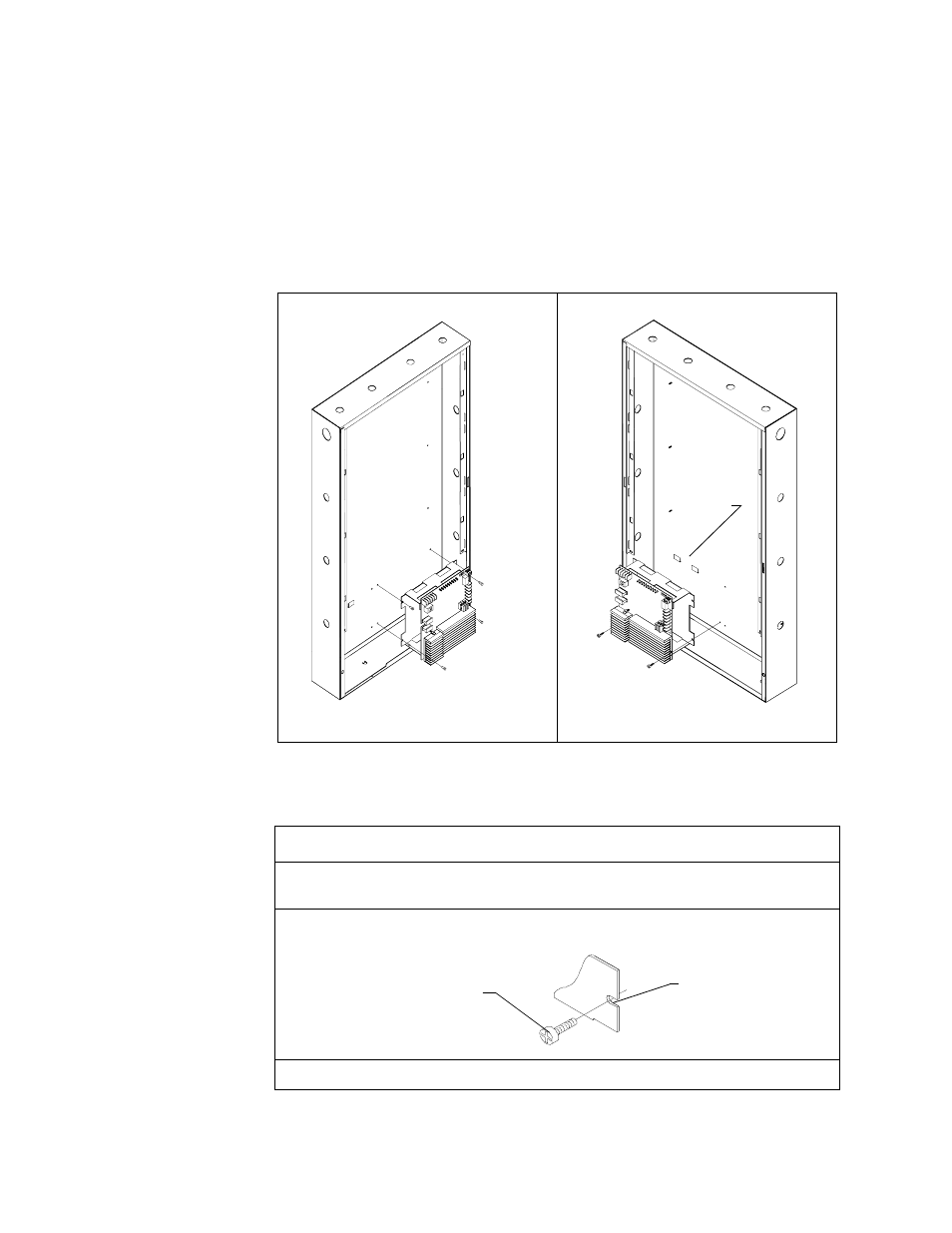

Figure 7 Mounting a Charger in a CAB-A3F or CAB-B3F
To mount a charger in a CAB-A3F or CAB-B3F Cabinet, follow these instructions:
Position 1: Lower right corner. Position 2: Lower left corner.
Step Action
1 Align the charger chassis mounting slots with the mounting holes in the cabinet. If
mounting in position 2, place the charger chassis on the mounting hooks in the cabinet.
2 Insert the self-tapping screws through the charger chassis mounting slots and into the
mounting holes in the cabinet.
3 Tighten the self-tapping screws.
Mounting
hooks
Self-tapping screw
Chassis mounting slot
