Installing the Charger
Connecting Batteries to the Charger
12
CHG-120F Instruction 03/21/01 PN 50888:B0
Connecting Batteries to the Charger
Overview - 25 AH –120 AH batteries can be connected to the charger. This section
provides illustrations and instructions for connecting two batteries or for connecting four
batteries.
Connecting Two Batteries - Figure 5 illustrates how to connect two 25 AH batteries to
the charger:

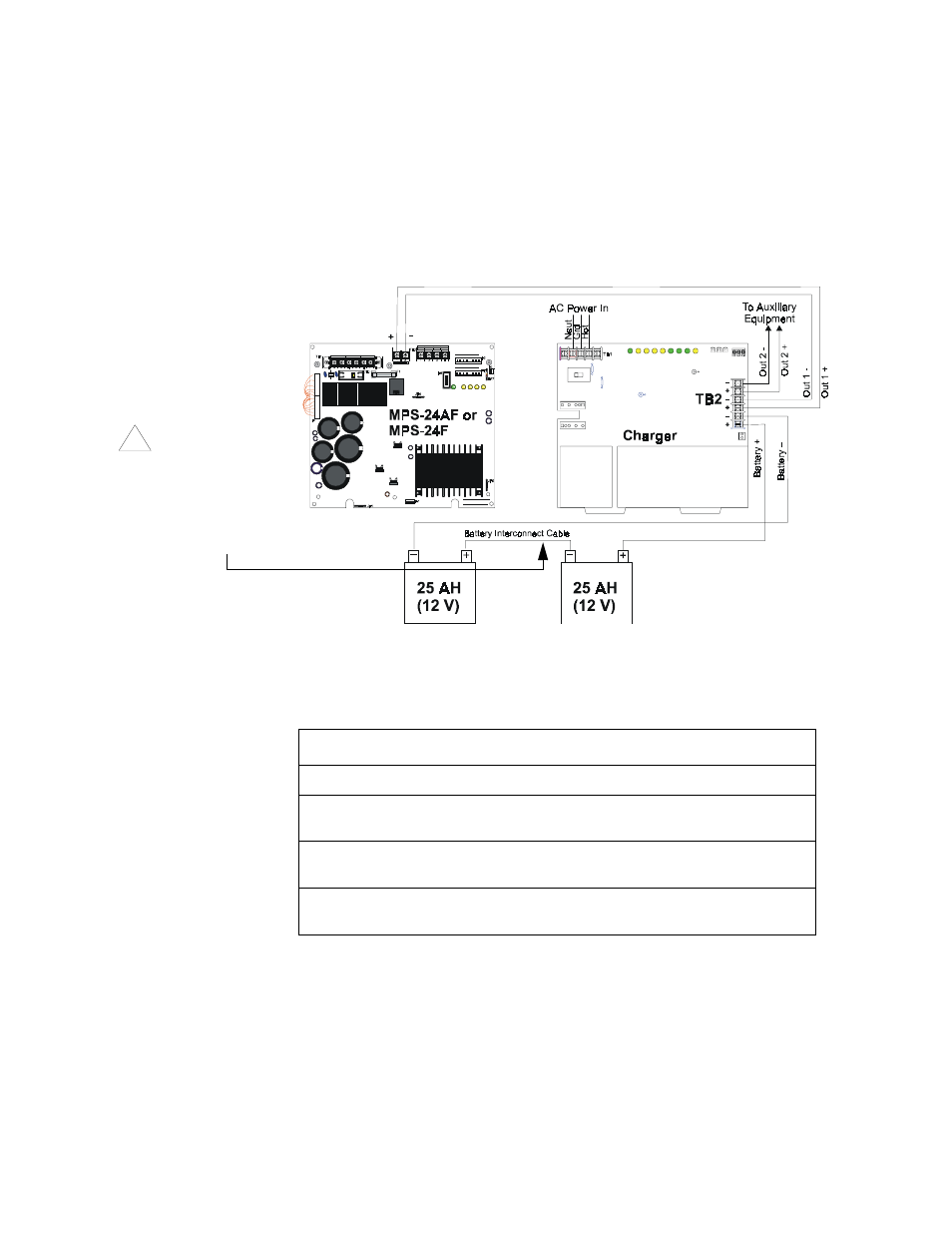

Figure 5 Connecting 25 AH Batteries
Table 3 contains instructions for connecting batteries to the charger:
Warning: Do not
connect the Battery
Interconnect Cable
at this time.
Refer to “Starting the
Charger” on page 25.
!
TB2
Step Action
1
Remove all power sources to the charger.
2
Connect the battery negative cable to the TB2 terminal (on the charger)
labeled “Battery –” as shown in Figure 5.
3
Connect the battery positive cable to the TB2 terminal (on the charger)
labeled “Battery +” as shown in Figure 5.
4
Proceed to the section “Connecting the Charger.” Do not connect the Battery
Interconnect Cable at this time—refer to “Starting the Charger” on page 25.
Table 3 Connecting 25 AH Batteries
