7007B-N5 Audible/Visible Signal-Strobe
Installation Sheet
Description
The 7007B-N5 series of devices are UL Listed audible/visible-
signal-strobes for general purpose signaling applications.
Table 1: 7007B-N5 models
Models Lens color
7007BA-N5 Amber lens
7005BB-N5 Blue lens
7007BG-N5 Green lens
7007BR-N5 Red lens
Installation
WARNINGS
• Electrocution hazard. A qualified electrician familiar with
National Electrical Code and local code requirements must
install this product. Failure to follow the safety precautions
in this installation sheet could result in product or property
damage, or severe personal injury or death.
• Electrocution hazard. To reduce the risk of shock, do not
remove the lens or tamper with the unit when the circuit is
energized. Do not connect AC power until the installation
is complete.
The 7007B-N5 (Figure 1) can be mounted on any single gang
2 × 4 in. (51 × 102 mm) electrical box, double gang 4 × 4 in.
(102 × 102 mm) electrical box, or standard 4 × 4 in. (102 × 102
mm) junction box with a plaster ring.
To install the 7007B-N5:
1. Install an appropriate electrical box using suitable
hardware.
2. Connect the wire leads as shown in Figure 2.
3. Mount the device to the electrical box. Secure it using two
screws (supplied).
4. Perform an operational test.

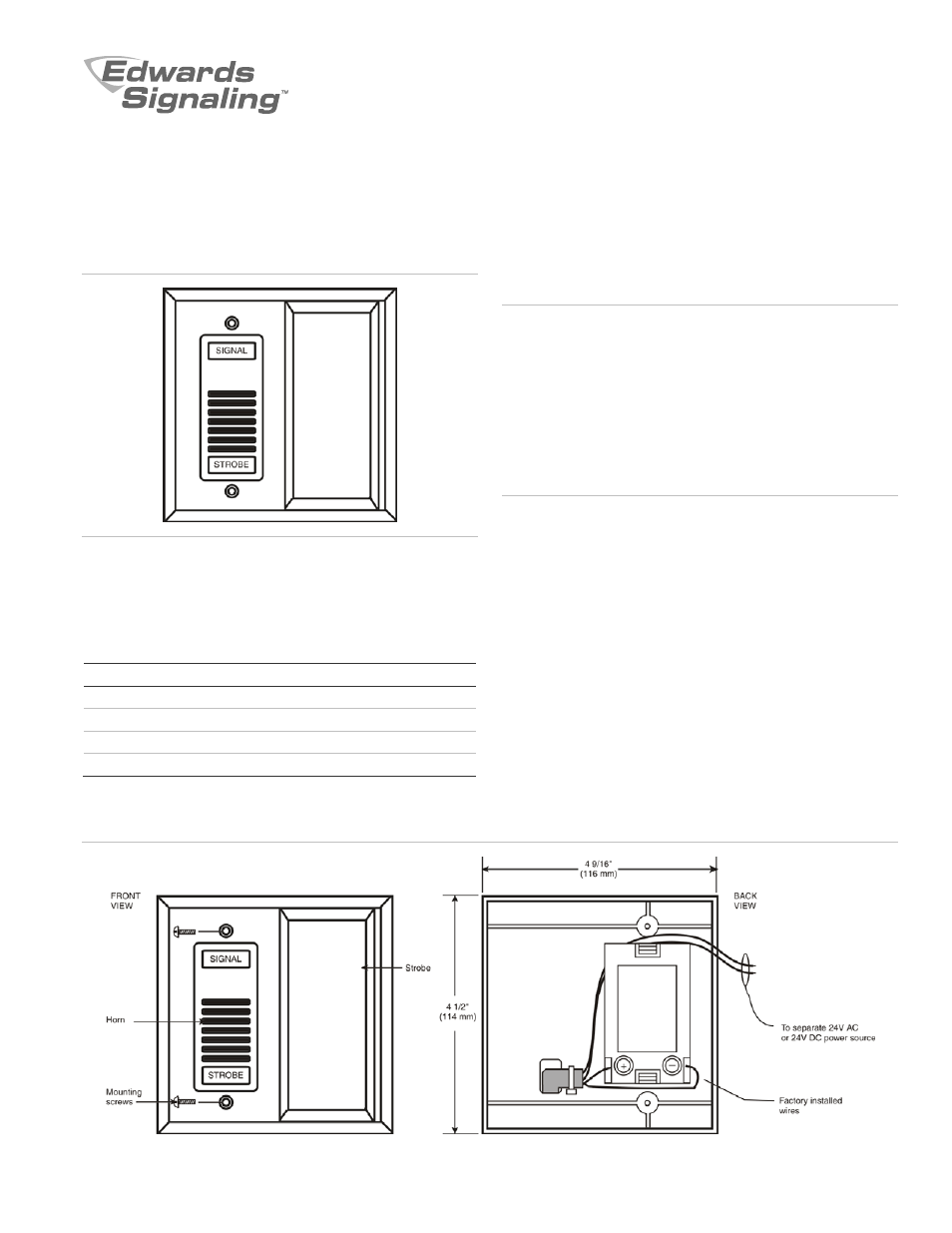

Figure 1: Details of 7007B-N5
