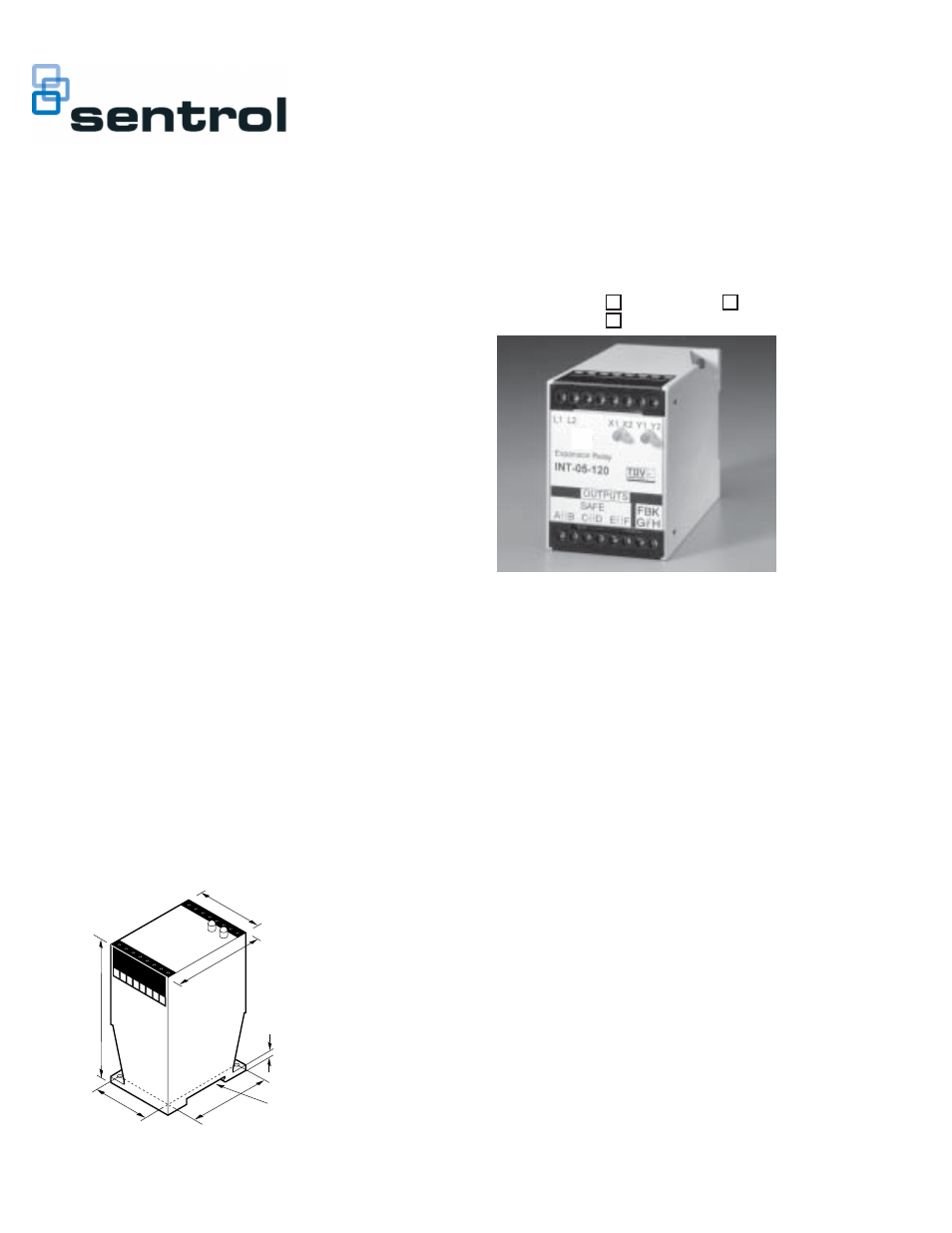

Safety Expansion Relay
INT-05-024
INT-05-120 INT-05
TUV Notes:
1. Relay conforms to Pollution Degree II, meets EN1760-1:1998, and must be installed
in an IP54-type enclosure.
2. The wire insulation of connected devices must be rated for 250VAC. The relay meets
basic insulation requirements only.
3. Input devices must meet requirements of EN60947-5-1.
4. The relay must be connected to a primary disconnect device that meets the
requirements of EN60947-3.
5. Controller meets IP20.
6. Test system before operation and after machine maintenance. Controller does not
require maintenance.
7. The complete system should be tested weekly. If a fault occurs, contact
Sentrol Industrial.
8. To be used in conjunction with INT-03 or INT-04.
The INT-05-024 or INT-05-120 Expansion Safety Relay is intended for use as part of a
safety circuit. It provides three additional safe output contacts when used with the
INT-03 Safety Monitor Relay or INT-04 Emergency-Stop Safety Relay.
The INT-05 uses positive-guided relays along with feedback contacts to the INT-03 or
INT-04 safety relay to prevent machine start-up in the event of a component failure.
Voltage to the INT-05 is switched thru the contacts of the INT-03 or INT-04. If a
component failure occurs, the feedback loop to the
INT-03 or INT-04 prevents machine restart.
Description
Installation
1. Mount the relay on a 35mm DIN rail or panel. See Dimensions.
2. Connect the wiring for the switches and relay. See Wiring Diagrams. (For proper
operation, DO NOT jumper terminal 1 to terminal 2. Use a momentary button.) For
floor mat applications, connect the two floor mat loops from terminal X1 to X2 and
from Y1 to Y2.
Caution! The relay is available in either a 24 VDC, 120 VAC, or 230 VAC model.
Make sure correct model is used before
applying power.
3. Use one of the following methods to energize the relay:
• For E-stop installations, close all E-stop button contacts and monitored contacts,
and then press the START button.
• For floor mat installations, press the START button without an object on the mat.
Note: The INT-05 must be wired as shown as the unit on its own does not fulfill any
safety requirements.
Dimensions
Slot for 35mm
DIN rail mount
2.46"
6.25cm
1.48"
3.75cm
4.53"
11.5cm
2.95"
7.5cm
2.17"
5.5cm
0.26"
0.66cm
INT-05 __________
Integrity Series
P/N 1030524 • REV D • REB 20MAR13
