Warning – Edwards Signaling 5533MD-AW User Manual
Page 3
3
Installation and Operation
Cat. No. 5533MD-AW
Alarm mode shown below. On a
supervised notification appliance circuit,
the signal sounds when polarity of signal
source voltage reverses from that of
supervisory mode.
Use instructions furnished with fire
alarm systems and those on this figure
to ensure correct installation.

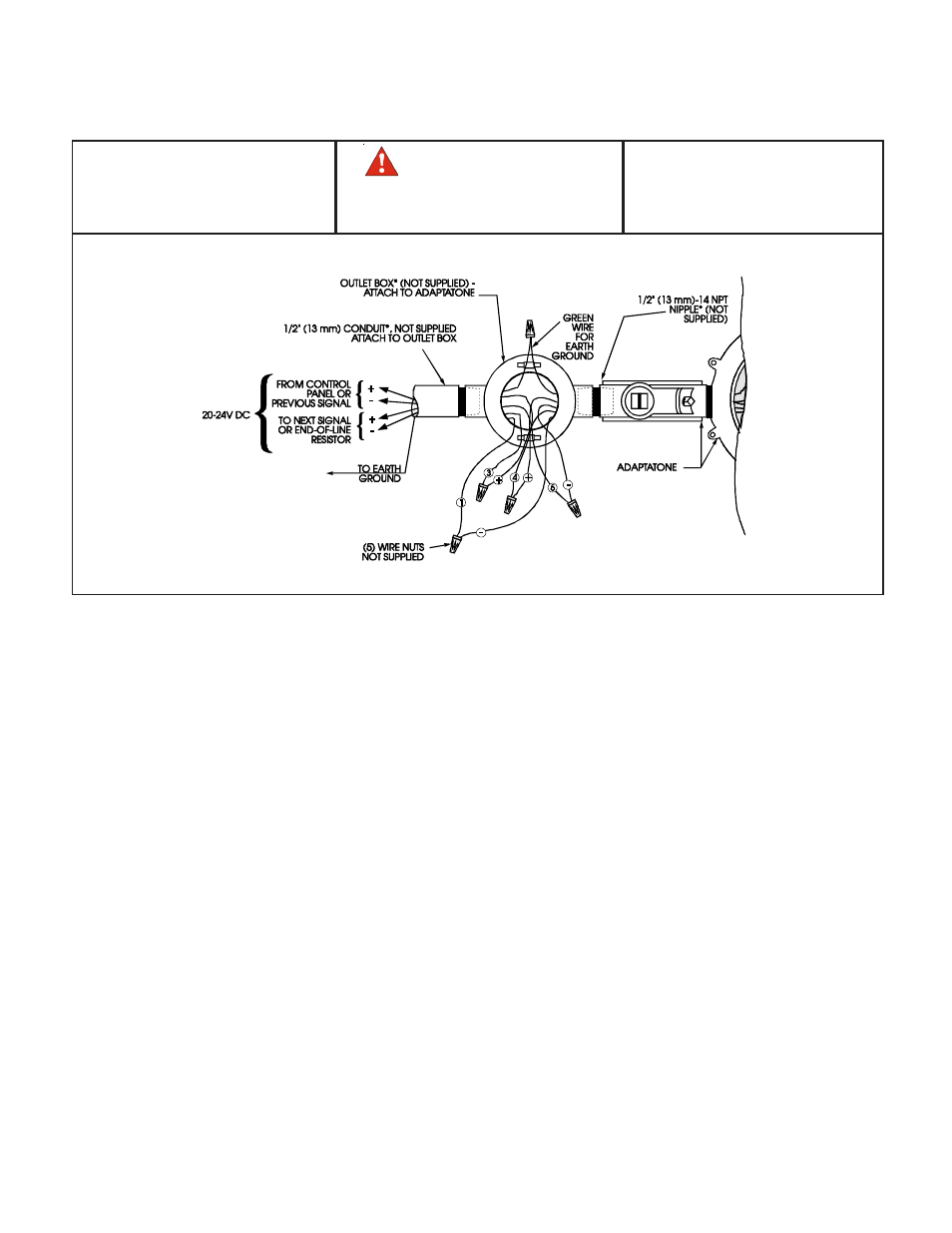

Figure 4. Wiring of 5533MD-AW Adaptatone to Supervised Signaling Circuits
*The outlet box, conduit and nipple must be suitable for hazardous location applications.
WARNING
Do not apply power until installation is
complete and housing covers are secure.
