Perpendicular
Actuation
Door
Actuation Parallel Actuation
Best Best Not Recommended
Pivot Actuation
Good

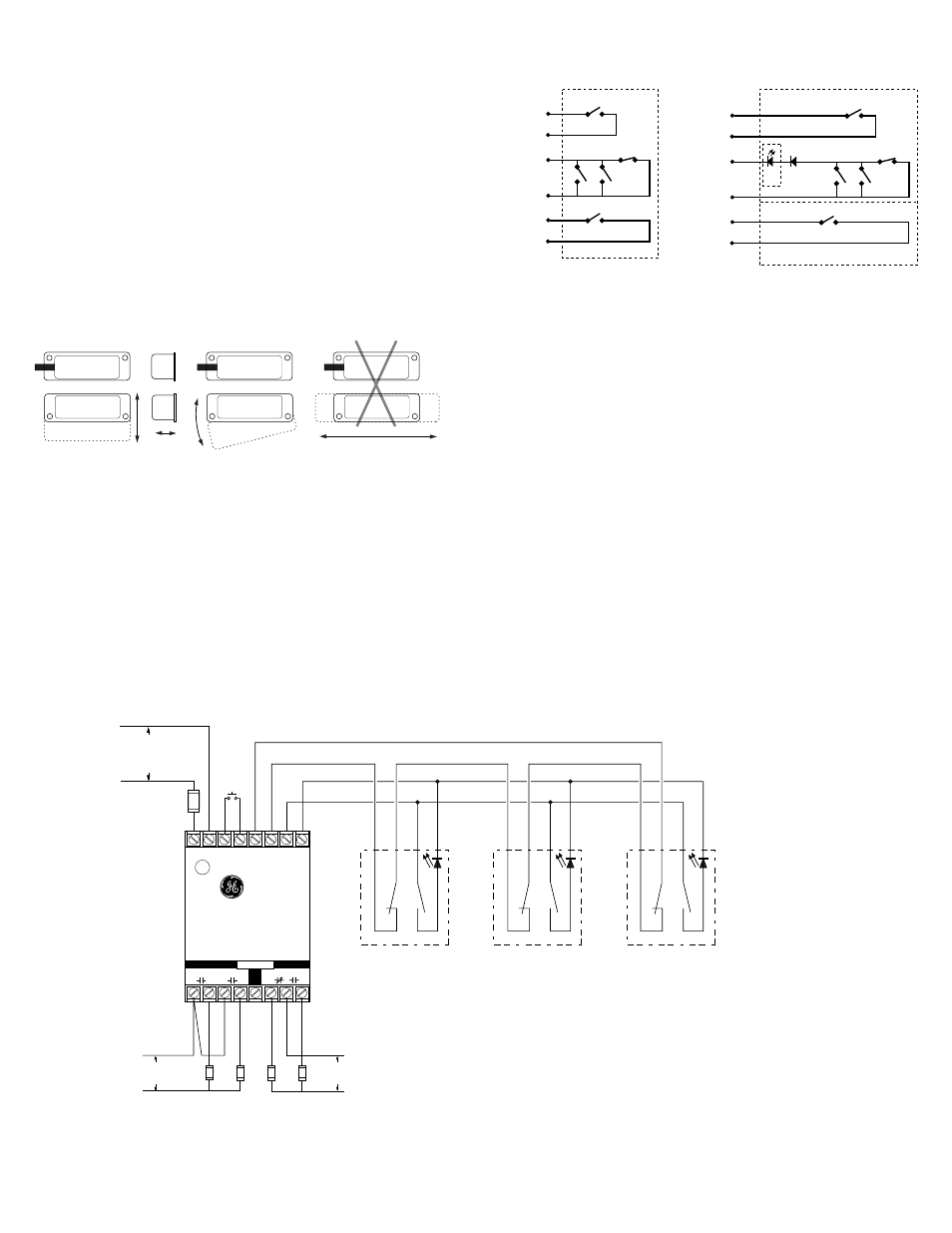

Three configurations are appropriate for safety interlock applications. The parallel
actuation can result in on/off/on signal if the actuator passes by the switch rather
than coming to rest in proximity to it. This is NOT a recommended configuration for
safety interlock applications.
Figure 2
Mounting Configurations
The interlock switch and actuator magnet should be mounted in only three
configurations for actuation.
Wiring Diagram for Category 3
Inputs shown with safety gates/guards in closed position. One Series 300-BT GuardSwitch ™ required for each safety gate.
*300-BLT-
*Or other DPST GuardSwitch
(See the 300-BT Series installation instructions)
( – )
( + )
INT-03-230: 230V AC
INT-03-120: 120V AC
INT-03-024: 24V DC
R e q u i r e d F a s t o r
S l o w - A c t i n g F u s e :
( 2 5 0 V , 5 x 2 0 m m F )
I N T - 0 3 - 2 3 0 : 4 0 m A
I N T - 0 3 - 1 2 0 : 8 0 m A
I N T - 0 3 - 0 2 4 : 1 / 4 A
Required Fast or Slow-
Acting Fuses: 4A (250V,
5x20 mm F
W
H
T B
L
K R
E
D B
L
U
*300-BLT-
W
H
T B
L
K R
E
D B
L
U
Note – The LED on the BLT model will be ON when the guard is open
Fuses: 1 A (250 v)
Multiple DPST GuardSwitches – Shown with actuators in position, all guards closed.
The L.E.D of the BLT model will be on when the guard is open. If multiple guards
are open, L.E.D will be dimmer. The maximum number of GuardSwitches that can
be used is 50, although troubleshooting and line resistance must be considered.
(Do not exceed 30 Ohms of combined contact and line resistance. Each GuardSwitch
will have less than 0.5 Ohms of resistance.)
RESET
A
SAFE AUX.
B C D
Safety Monitor Relay
INT-03
E F G
OUTPUTS
230 VAC
60 VDC
120 VAC
30 VDC
LOADS
*300-BLT-
W
H
T B
L
K R
E
D B
L
U
Series Circuit
Parallel Circuit
– +
L1 L2 1 2 X1 X2 Y1 Y2
N.O. N.C.
S1
BLK
WHT
BLUE
RED
BRN
ORG
S2 S3
S4
CIR. 2
CIR. 1
S5
CIR.3
*Circuits shown with actuator away from switch.
S1,S5 Normally open reed switch, closed when actuator is within 0.6"
S2, S3 Normally open reed switches, will close if misaligned or tampered with a
standard magnet
S4 Biased closed reed switch, open when actuator is between 0.3" and 0.6"
N.O. circuit: Black and white wires.
N.C. biased tamper circuit: Red and blue wires.
N.O. monitor circuit: Orange and brown wires.
Circuits *
without LED
Circuits 2*
with optional LED
S1
BLK
WHT
BLUE
RED
D1 D2 S2 S3
S4
CIR. 2
CIR. 1
S5
ORG
BRN
CIR. 3
Optional LED
the inrush current (at least 48 ohms for 24 Volt applications). The resistor can be
added in series just before the load. The voltage drop and the power rating of the
resistor must be considered. Voltage drop = I•R; Watts = I
2 •R
(I = maximum continuous current of the load).
6. When mounting the switch on an ungrounded machine, ground the switch housing
by connecting your ground lead to one of the switch mounting screws.
