Specifications
Operating Voltage
24 VDC or 24 VFWR nominal
Operating horn-strobe
current
See Table 7
Sound level output
See Table 3 and Table 4
Audible directional
characteristics
See Table 5 and Table 6
Light output
Selectable at 15, 30, 75, and 110 cd
Synchronization
Maximum allowed resistance between any
two devices is 20 Ω. Refer to specifications
for the synchronization control module, this
strobe, and the control panel to determine
allowed wire resistance.
Default settings
1 flash per second (fps)
Wire size
12 to 18 AWG (0.75 to 2.50 mm²)
Compatible electrical
boxes
2-1/2 in. (64 mm) deep single-gang box
4 in. square box 1-1/2 in. (38 mm), 2-gang
4 in. octagonal with G1T or G1RT trim
accessory
Operating environment
Temperature
Relative humidity
32 to 120°F (0 to 49°C)
0 to 93% noncondensing
Table 3: UL Ratings, temporal output
Signal and voltage
Low
High
Temporal
76.0
81.4
Continuous
80.1
85.5
UL 464: Sound level output at 10 ft. (3.05 m) measured in a
reverberant room at 16 V.
Table 4: Sound level output (dBA, temporal tone)
Voltage
High
Low
16 VDC
97.6
93.8
24 VDC
101.4
97.3
33 VDC
103.8
99.7
16 VFWR
101.3
97.3
24 VFWR
104.2
100.4
33 VFWR
106.0
102.7
CAN/ULC-S525: Meets or exceeds 85 dBA in an anechoic chamber at
10 ft. (3.05 m)
Table 5: Audible directional characteristics (horizontal pattern)
Angle (°) [1]
Output (dB) [2]
0
0
+18
−3
+42
−6
-50
−3
-75
−6
[1] Angles are measured from a perpendicular axis; positive angles to
the right.
[2] Peak output at 16 VDC, set for steady tone
Table 6: Audible directional characteristics (vertical pattern)
Angle (°) [1]
Output (dB) [2]
0
0
+20
−3
+45
−6
−20
−3
−52
−6
[1] Angles are measured from a perpendicular axis; positive angles are
up.
[2] Peak output at 16 VDC, set for steady tone.
Table 7: Operating horn-strobe current in RMS (A)
Voltage
Strobe (cd)
Operating current
VDC
15
0.129
30
0.167
75
0.281
110
0.337
VFWR
15
0.176
30
0.230
75
0.397
110
0.443
VDC = Volts direct current, regulated and filtered
VFWR = Volts full wave rectified
Operating currents shown above were measured by UL at 16 VDC and
16 VFWR and high dB setting.

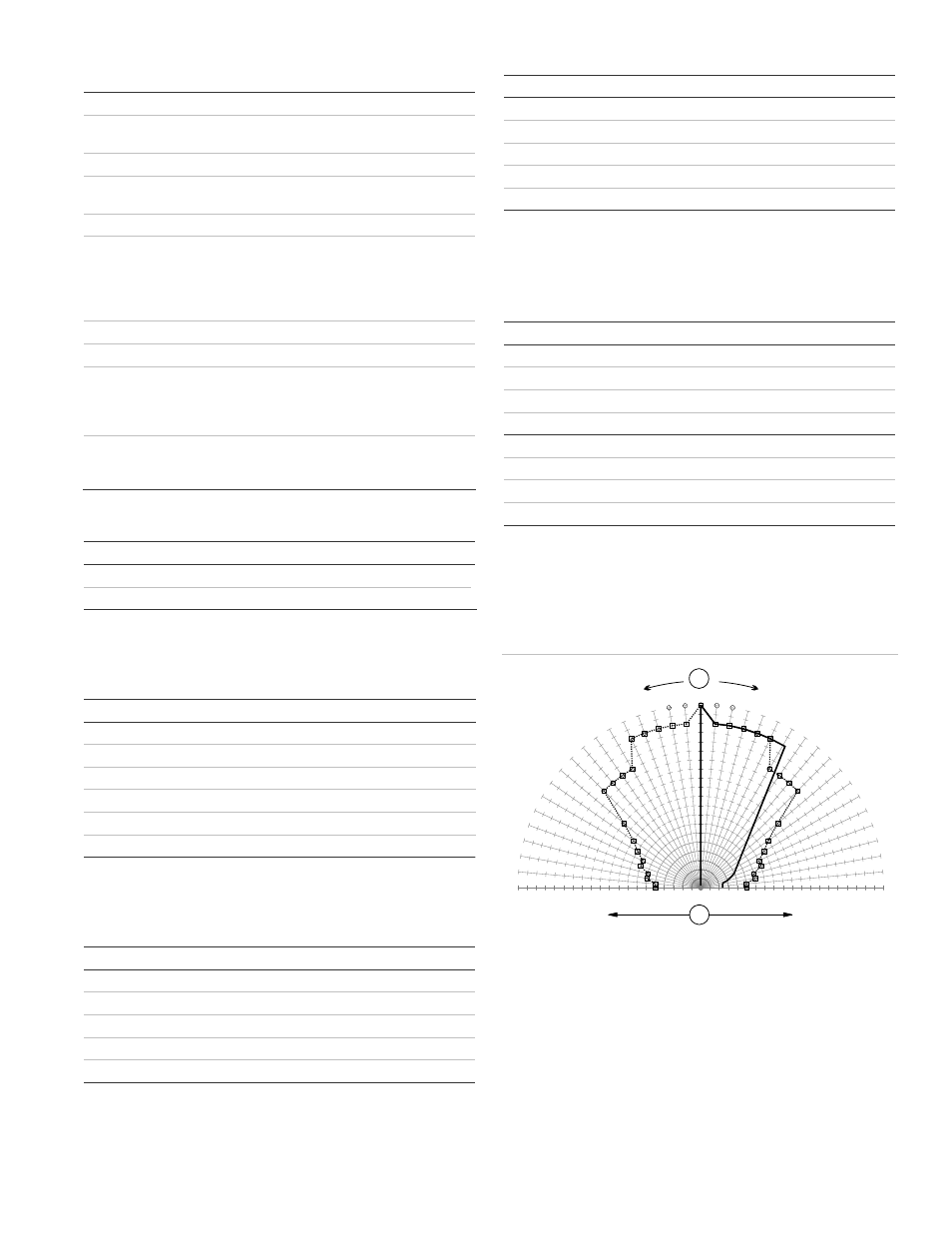

Figure 4: UL 1971 minimum light output (% of rating vs. angle)
100
95
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
0
5
10 15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
-5
-10
-15
-20
-25
-30
-35
-40
-45
-50
-55
-60
-65
-70
-75
-80
-85
-90
1
2
1. Angle
2. Minimum UL required candela light output
____ % of rated candela vertical specification
- - - - % of rated candela horizontal specification
