4 / 7 P/N 3100006 • REV 4 • ISS 09AUG10

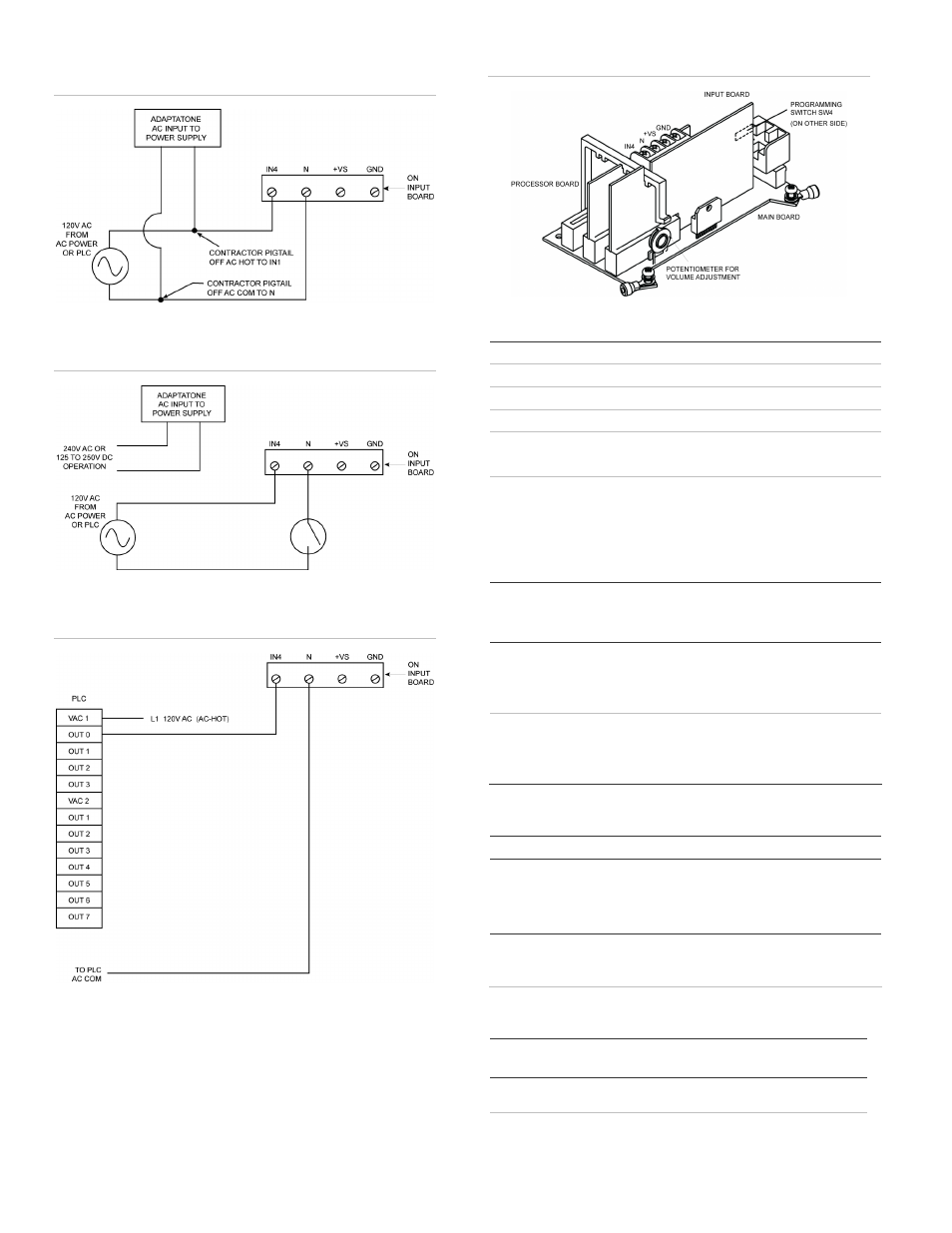

Figure 11: 120 VAC strapped input, 120 V input board
Figure 12: 120 VAC to 240 VAC or 120 VDC – 250 VDC, 120 V
input board
Figure 13: Connecting from a PLC to 120 V input board. See
Table 5
Figure 14: PC board locations
Specifications
Voltage Refer to Table 2 and Table 3
Current Refer to Table 2 and Table 3
Dimensions Refer to Table 4 on page 5
Weight 9 lb (4.1 kg)
Hazardous locations
Ambient
temp.
-31 to 104°F (-35 to +40°C)
Non-hazardous
locations
Variable
ambient
temp -40 to 151°F (-40 to +66°C)
Table 1: Operating temperature codes
Catalog number
Class I, Div. 2
Groups A, B, C, D
Class II, Div. 2,
Groups F, G
Class III, Div. 1 and 2
5530M-24AQ
5530M-24N5
5530MHV-24AQ
5530M-120N5 135°C (T4) 100°C (T5)
5530M-24Y6
5530MHV-24Y6
5530M-120Y6
5530MHV-120Y6 180°C (T3A) 100°C (T5)
Table 2: Input board
Catalog number Voltage Current
5530M-24AQ
5530M-24N5
5530MHV-24AQ
5530MHV-24Y6 24 VDC 6 mA
5530M-120N5
5530M-120Y6
5530MHV-120Y6 120 VAC 50/60 Hz 13 mA
Table 3: Main power
Catalog number Voltage Standby
current Tone on
current
5530M-24AQ 24 VDC
24 VAC 50/60 Hz 0.10 A
0.10 A 0.74 A
1.3 A
5530M-24N5 120 VAC 50/60 Hz 0.10 A 0.36 A
