Model AM-DFA Non-Contacting Doppler Flow Monitor
Technical Data
Specifications
Flow Rate Range +0.25 to +40 ft/sec and -0.25 to -40 ft/sec (+0.075 to +12.2 m/sec and -0.075 to
-12.2 m/sec) in most applications
Pipe Size Any pipe ID from ½" to 180" (12.7 mm to 4.5 m)
Accuracy ±2% of scale. Requires solids or bubbles minimum size of 100 microns, minimum
concentration 75 ppm. Repeatability: ±0.1%, Linearity ±0.5% of full scale
Displays White, backlit matrix - displays flow rate, totalizer, relay states, operating mode
and calibration menu
Sensor
Model SE4 single-head ultrasonic with 20 ft (6 m) shielded cable and stainless
steel mounting kit for pipes ½"
Sensor Operating Temperature 40° to 200°F (-40° to 93°C)
Options
Sensors Intrinsic Safety Barriers for Sensor mounting in hazardous locations, SE3H High
Temperature model rated up to 302°F (150°C), ISE Insertion type for special ap-
plications
Sensor Cable 50 ft. (15 m) or 100 ft. (30 m) continuous shielded coaxial pair, or splice up to 500
ft (152 m) with junction box. Self tunes to extended cable
Enclosure Heater for outdoor installation, 16 watt thermostatically controlled to -40°F (-40°C)
Data Logger Built-in 2 million point logger with USB output and Windows™ software
Power Input 9-32 VDC
Control of Relays 4 additional (6 total) rated 5 ampere SPDT
Data Logger Built-in, 50,000 data point capacity, with Windows™ software and RS232 output
Enclosure Panel Mount Flange assembly mounts standard enclosure
Sensor Mounting Stand For Open Channel Flow applications
Applications
Recommended for Liquids containing suspended solids or bubbles minimum size of 100 microns,
minimum concentration 75 ppm. Sensor mounts on Vertical or Horizontal pipes
Sensor Mounting Location 6-10 pipe diameters from elbows, tees (turbulence increasing devices) and
>30 pipe diameters from pumps, controlling valves and pipe discharge
Pipe Materials Steel, stainless steel, cast iron, PVC, fiberglass, any contigu-
ous pipe material that conducts sound, including lined pipes with
liner bonded to pipe wall. Avoid pipes with loose insertion lin-
ers and pipe walls which contain air (concrete, wood etc.)
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)

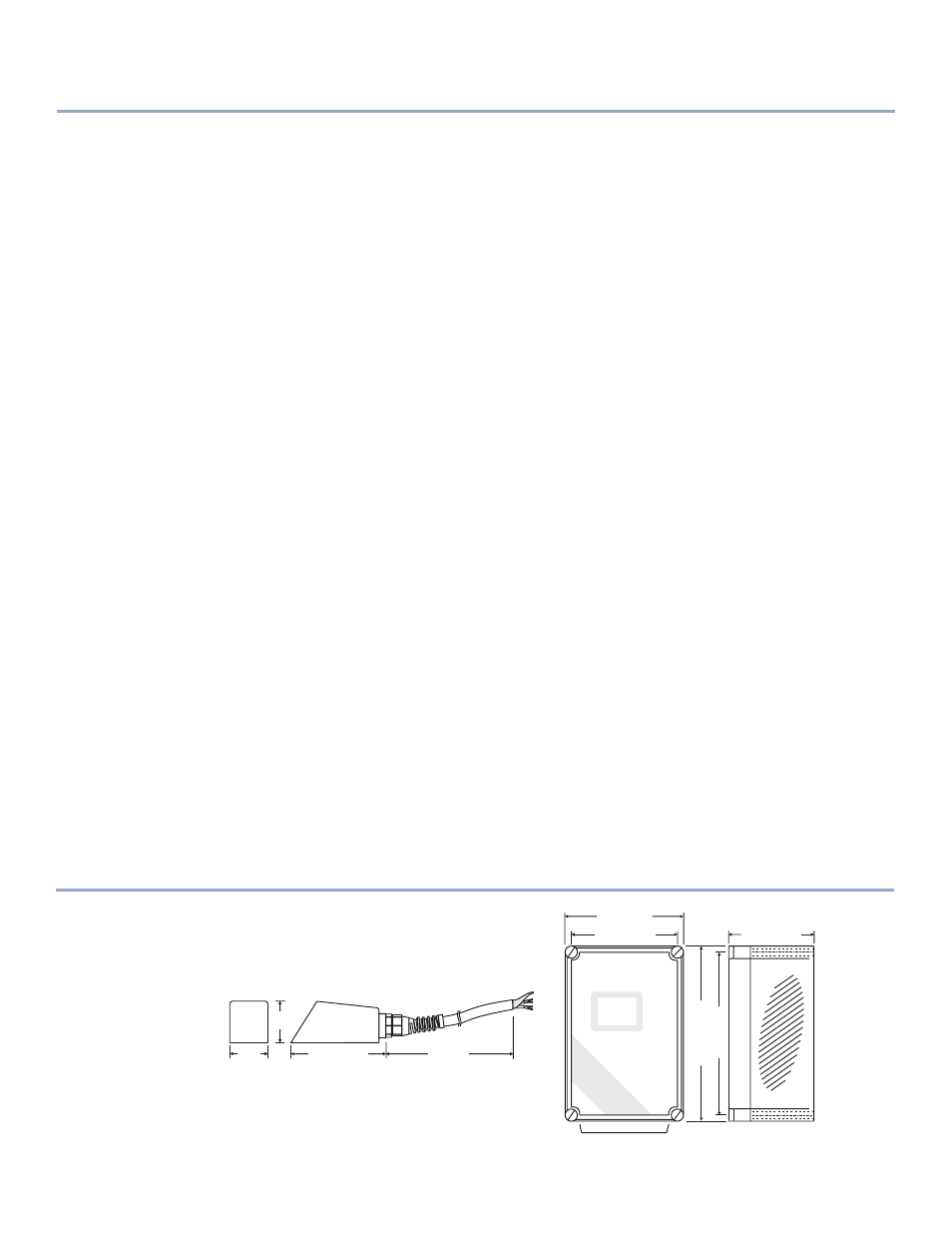

Dimensions
SE4 ULTRASONIC
DOPPLER SENSOR
ENCLOSURE
7.4” / 188 mm
6.46” / 164 mm
10.9
4” / 278
m
m
10” /
254 mm
CONDUIT ENTRY
LOCATION
SIDE VIEW
5.12” / 130 mm
20 ft / 6 m
SIDE VIEW
3.375” / 85 mm 1.375”
35 mm
1.5”
38 mm
END
VIEW
DFM-5.0
Doppler
Flow Meter
