30
M
ODEL
RT2000 (X2) I
NSTALLATION
G
UIDE
R
EAR
O
PERATOR
S
ERVICE
P
ANEL
The Operator Service Panel (OSP) is a touchscreen panel that
provides convenient user-access to cassette close and replen-
ishment functions from inside the facility. It also provides
diagnostics functions, reset error(s) capability, and terminal
shutdown/restarts.
1. If the unit is ON, enter
M
ANAGEMENT
F
UNCTION
> S
YSTEM
P
ARAMETERS
> S
HUT
D
OWN THE
T
ERMINAL
.
:KHQ SURPSWHG RQ WKH VFUHHQ RSHQ WKH VOHHYH FDELQHW DQG WXUQ WKH SRZHU VZLWFK RQ WKH SRZHU VXSSO\
to the OFF (0) position.
The panel is shipped in the accessory box. Follow the proce-
dures for installing the OSP.

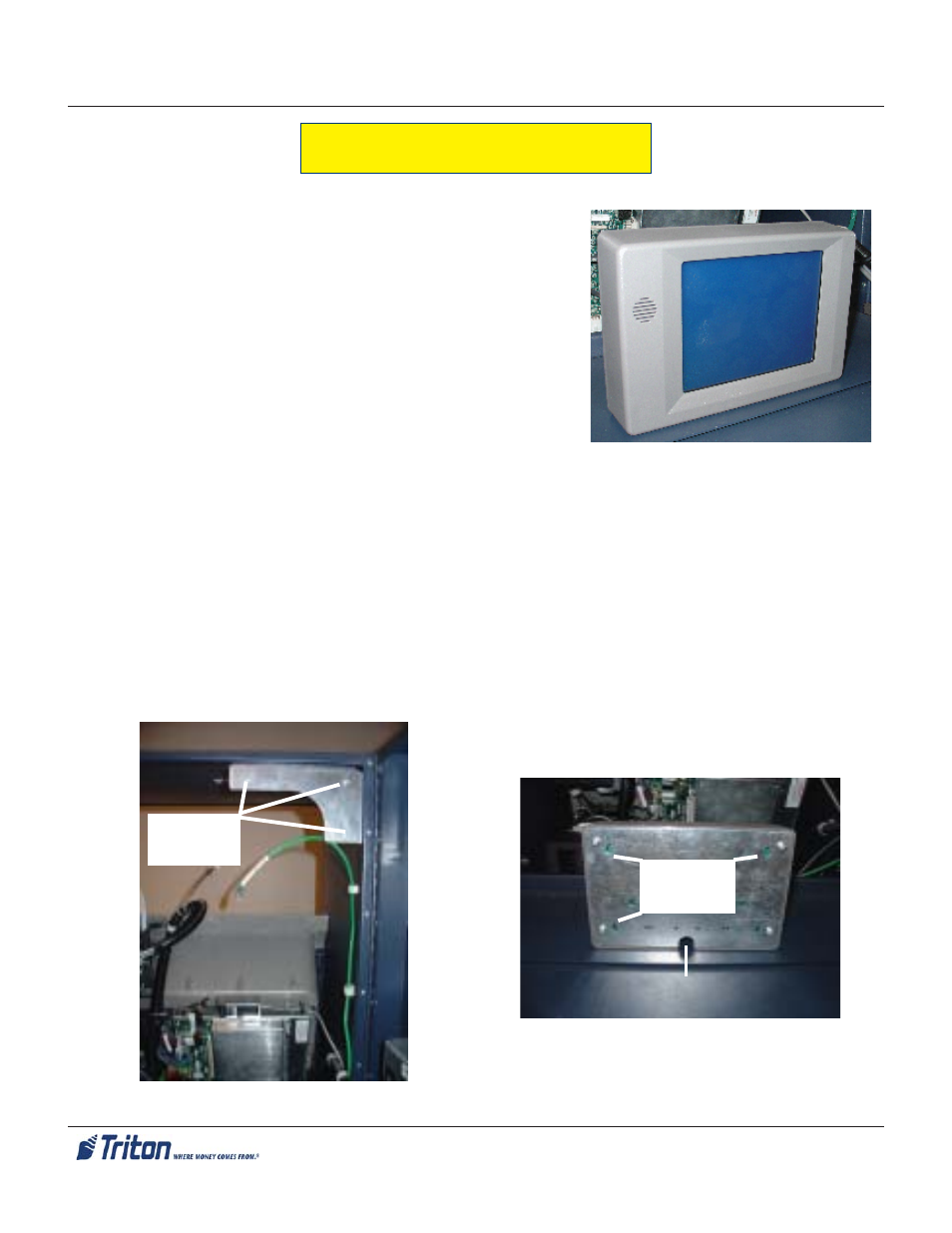

Operator Service Panel
Carefully inspect the panel for any shipping damage and report
any damage immediately to the shipping company. Refer to
the warranty information in the User or Service manual (as
applicable) for information about reporting shipping damage.
Figure 2. Rear view of OSP.
Figure 1. Mounting bracket.
2. The mounting bracket for the OSP is located in the upper right corner of the rear cabinet sleeve. There
are three (3) mounting studs visible. 6(( :$51,1* : next page
3. The back of the panel has four (4) mounting slots (3 will be used).
0RXQWLQJ
studs
'DWD FDEOH FRQQHFWRU
0RXQWLQJ
slots
