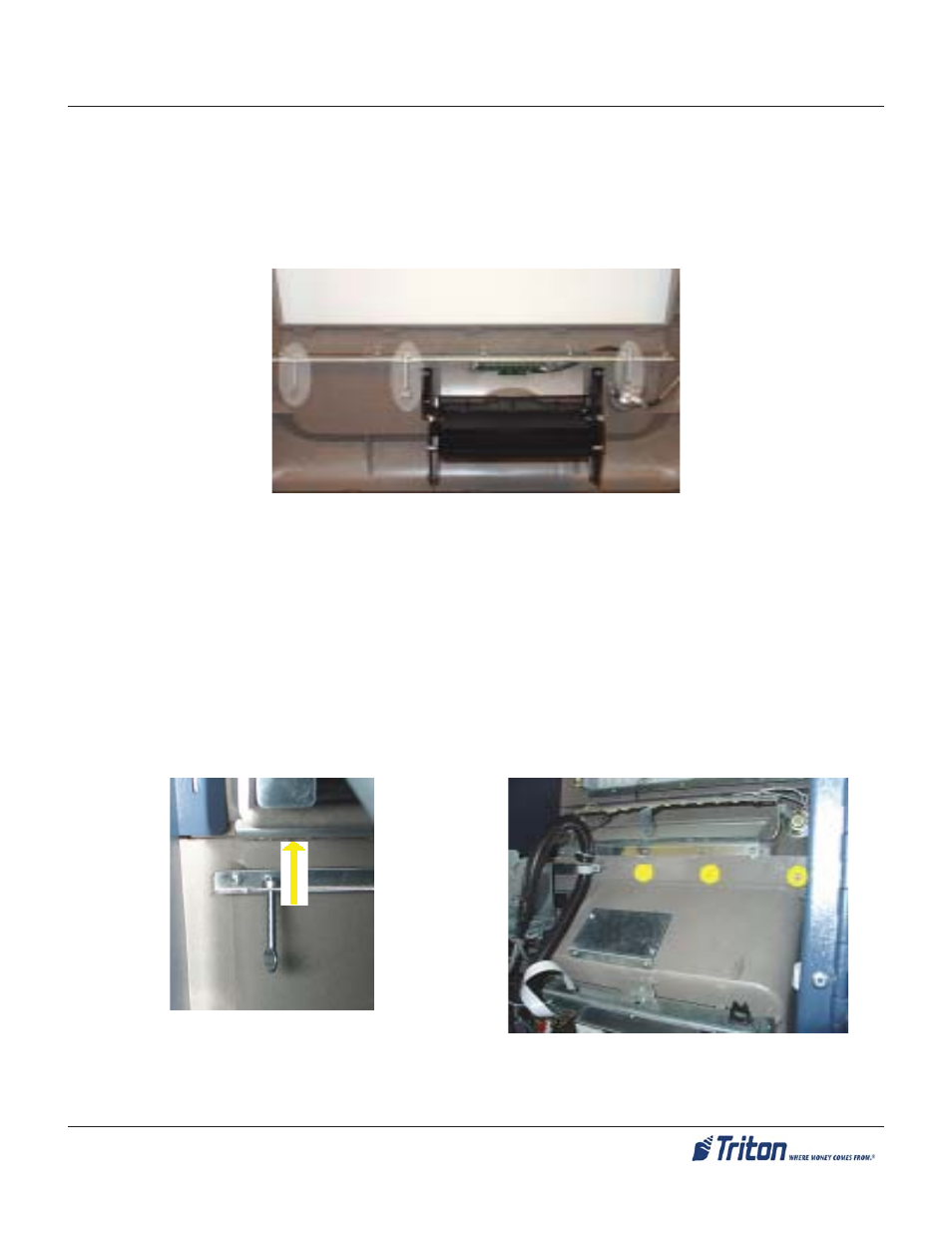

2. (Reference previous steps for mounting control panel trim) Align the trim clips with the sleeve slots
and insert until the trim is seated on the control panel.
1. Loosen the three (3) thumbscrews on the backside of the fascia trim hardware. Loosen until the ends
DUH ÀXVK ZLWK WKH EUDFNHW
3. Once the trim is in place, open the rear cabinet door. To secure the fascia trim:
Five (5) screws (K40x12 - included in accessory kit) and the three (3) thumbscrews (pictured above)
need to be secured. First, tighten the three (3) thumbscrews toward the bottom of the control panel lip
LQVLGH 1H[W LQVWDOO WKH ¿YH .[ VFUHZV DQG VHFXUH XVLQJ D SKLOOLSVKHDG VFUHZGULYHU
Note: Picture below shows 3 of the 5 screw holes. The other 2 are located in line to the left.
Three (3) thumbscrew.
Screw locations.
Tighten thumbscrew to secure bottom .
