ODEL

RT2000 (X2) I

NSTALLATION

UIDE

Route AC Power and

Communication Cable

1. Open the vault cabinet door. Route the AC power cord and the phone (or Cat-5) cable through either

the main or alternate cable access hole (as applicable). Install the supplied snap bushing into the access
hole that carries the power and phone cords.

2. Plug the AC power cord into the wall outlet. Plug the phone cable (or CAT-5) into the wall mounted

jack.

127( %HIRUH \RX VWDUW XQORFN DQG RSHQ WKH UHDU FRQWURO SDQHO FDELQHW GRRU 9HULI\ WKDW WKH SRZHU
VZLWFK RQ WKH XQLW¶V SRZHU VXSSO\ LV LQ WKH OFF SRVLWLRQ &ORVH WKH FRQWURO SDQHO GRRU

3. Secure/plug the unused access hole with the grommet or plug provided.

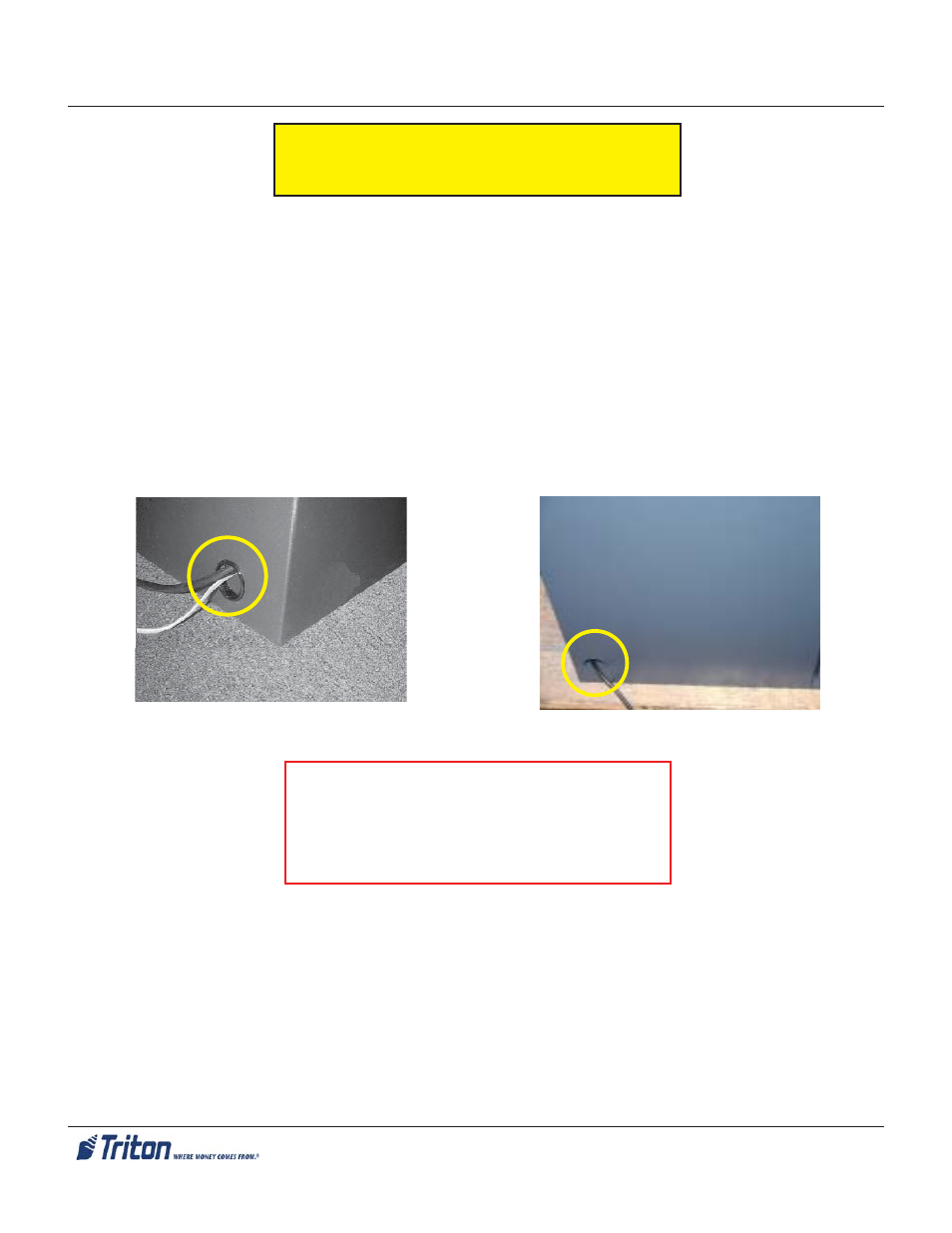

Right front side access hole with snap bushing.

Left front side access hole.

*** WARNING***

This unit may be equipped with more than one
power cord. DISCONNECT ALL POWER
CORDS PRIOR TO SERVICING!
