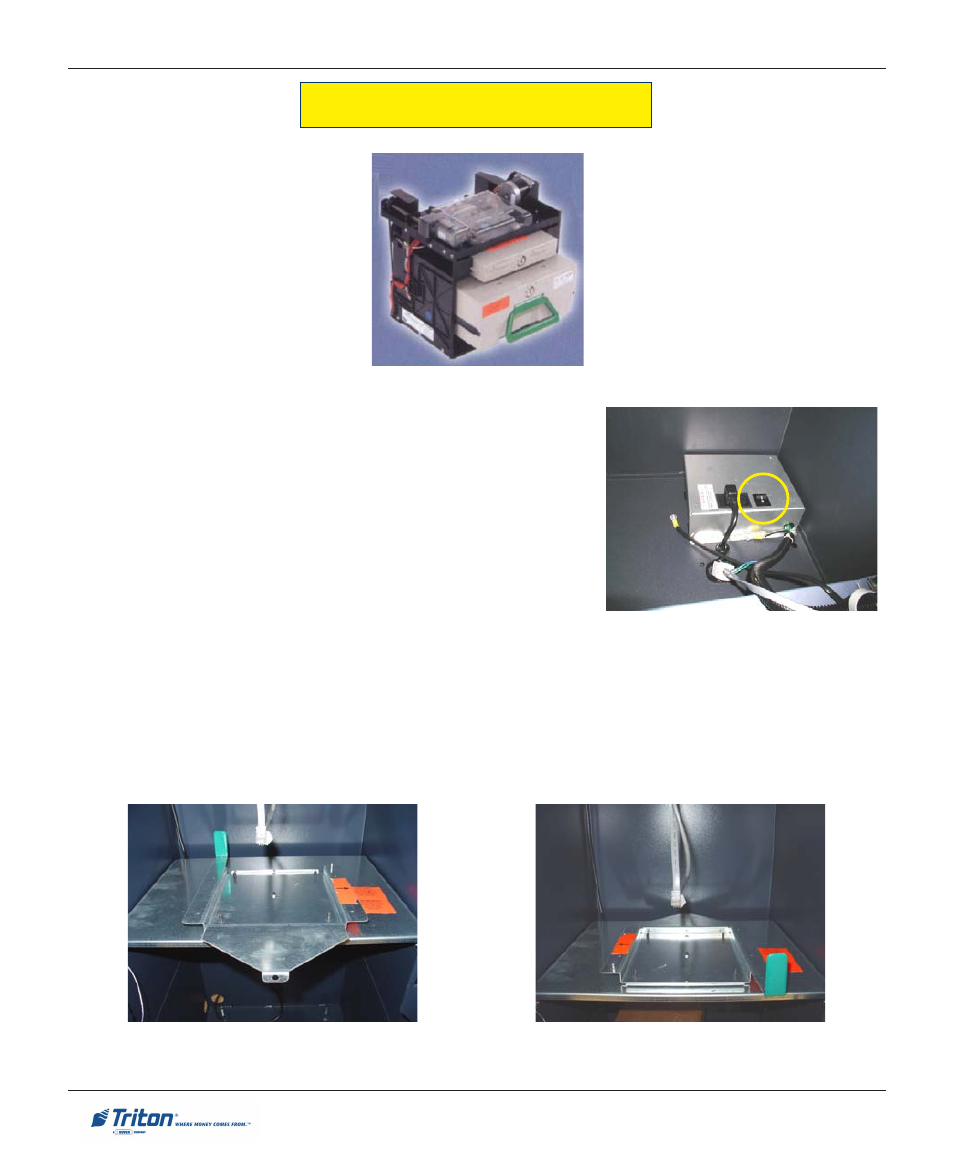

1. Unlock and open the control panel. Verify that the power switch
is in the OFF (0) position. Close the control panel.
4. Open the security cabinet and check the position of the turntable. The turntable must be in the cassette
“S
ERVICE
” position to correctly install the dispensing mechanism. The turntable is in the “Service”
position when the green handle is towards the rear of the cabinet.
2. Remove the packing material from the ends of the dispenser
data and power cables that are hanging inside the cabinet.
3. Unpack and remove the dispensing mechanism from its shipping
container. Remove the currency and reject cassette from the
dispenser.
TDM-100 I
NSTALLATION
Turntable in cassette
“Service” position.
Turntable in cassette
“Operate” position.
Power switch on right side of
power module.
