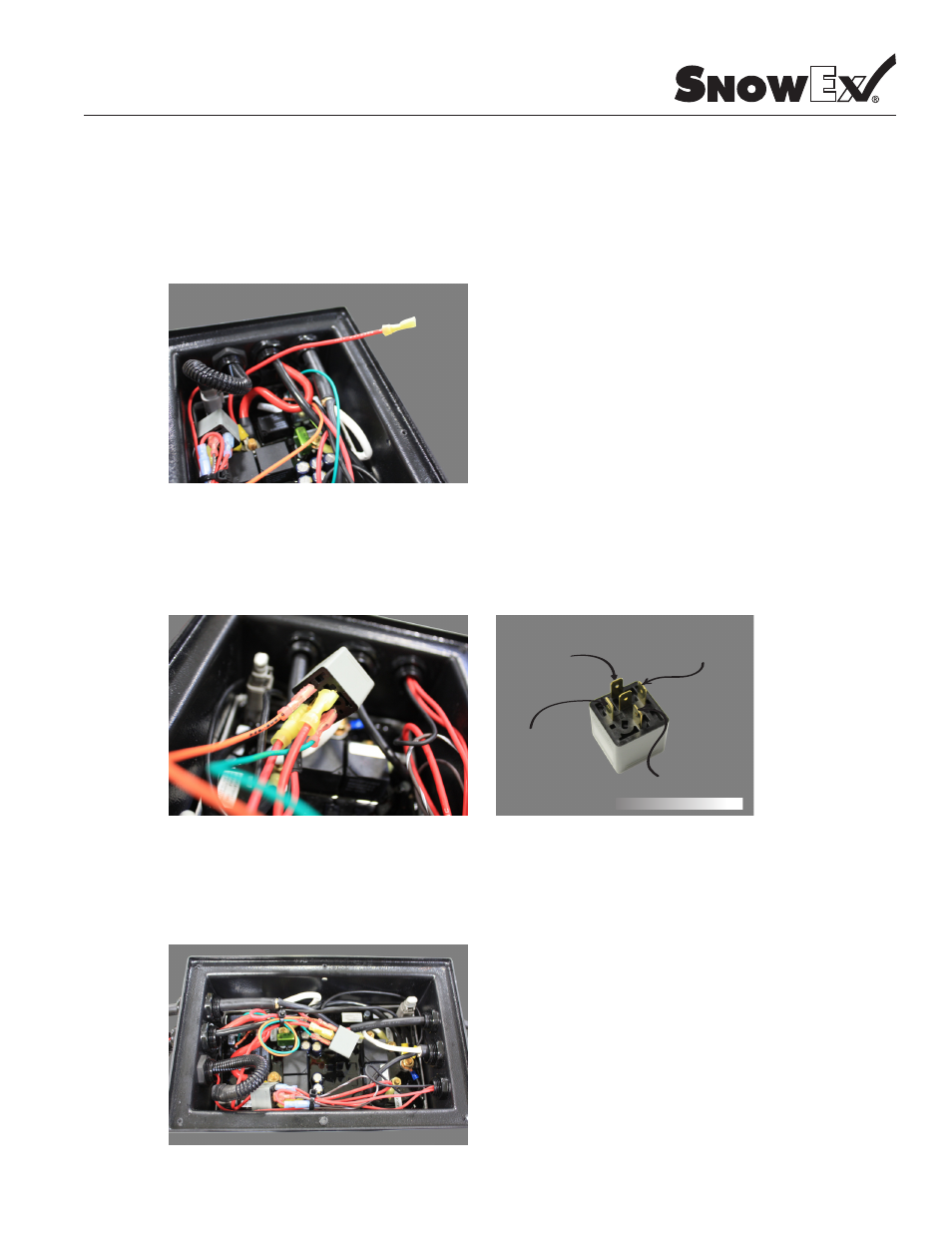

Installation Instructions
Connecting to the Spreader’s Control Module
Coil the Wires to the Relay back around and tie to the one of the large wires with Zip Tie [F50202].
Replace Power Box Cover. Leave Auger Extension Cover off.
Wire the Relay [D6083] as shown. Use Dielectric Grease.
Install the round Terminal End of the Relay Wire [F50681] onto the “BAT +” stud. Replace Nut and Washer. Tighten. Step 12:
Step 13:
Step 14:
Orange Wire
from Control Board
Red Wire
from F50679
Pump Harness
F50681
Prewet Battery Wire
Green Wire
from Control Board
Dielectric Grease...
1/2” Nutdriver...
