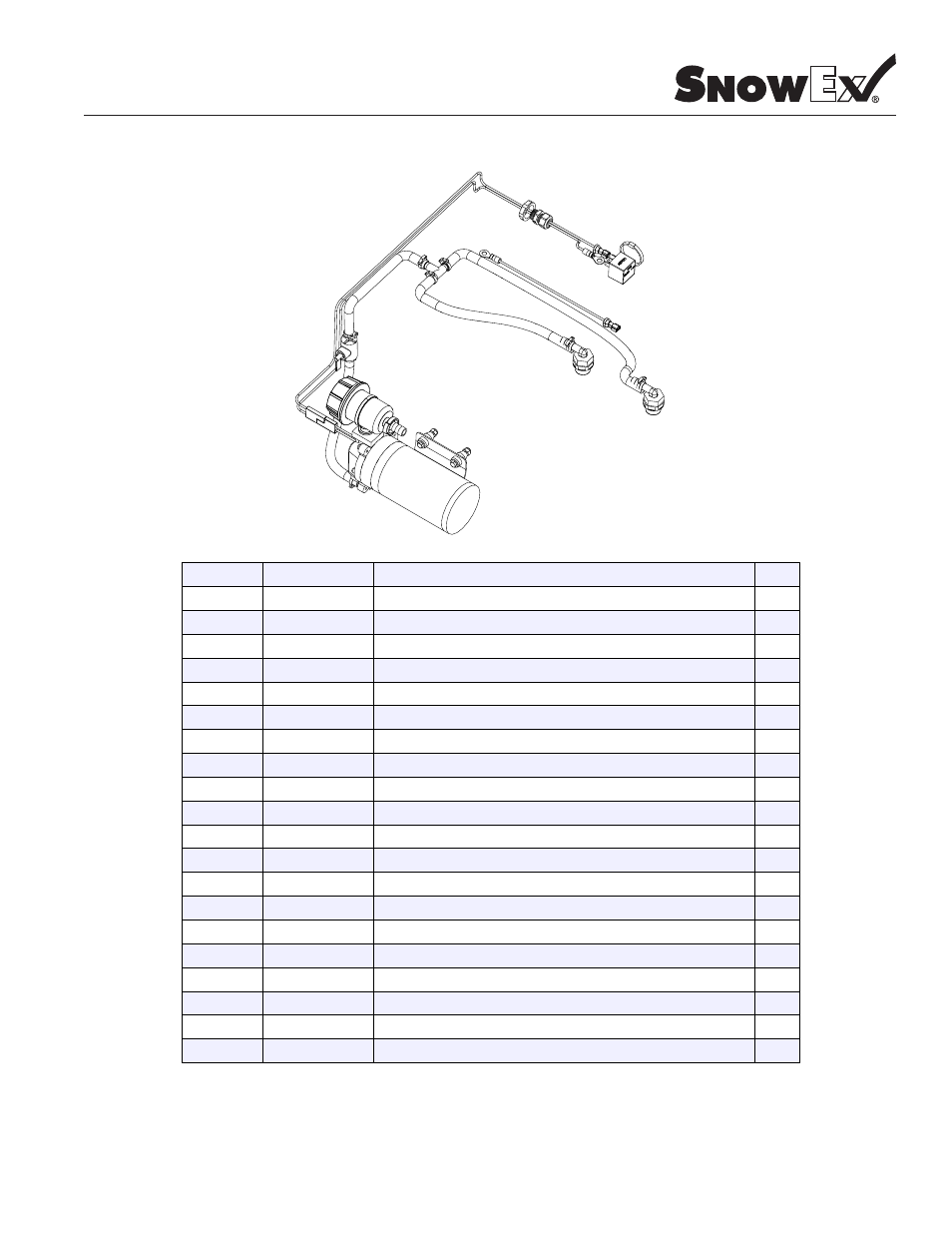

Pump Assembly Parts Breakdown
Model # PWX-200 / PWX-250
BOM ID Description Description Qty
1 D5265 Pump | 2.0 GPM Diaphragm 1
2 D5267 Line Strainer | Quick Attach Black Bowl 1
3 D5269 Hose Barb | 5/8" Quick Attach X 3/8" 90° 1
4 D5292 Washer | #10 Flat Stainless 4
5 D5294 Bolt | #10-32 X 1-1/4" Hex Head MS Stainless 4
6 D5377 Hose Barb | 1/2" Male Thread X 3/8" 90° 2
7 D5948 Nut | #10-32 Nylox Waxed Stainless 4
8 D6083 Relay | 30 Amp 1
9 D6781 Nut | 1/2" NPT Black Nylon 3
10 D6988-8 Hose | 3/8" X 1" X 8" PVC Clear 1
11 D6988-8.25 1
Hose | 3/8" X 1" x 8.25" PVC Clear
12 D6988-9 Hose | 3/8" X 1" X 9" PVC Clear
1
13 D6988-9.25 Hose | 3/8" X 1" x 9.25" PVC Clear 1
14 F50145 Hose Clamp | 3/8" Double Tooth Poly 8
15 F50146 Hose Clamp | Double Tooth Poly 3/8" 1
16 F50148 Hose Barb Tee | 3/8" 1
17 F50202 Cable Tie | 6" 30lb 1
18 F50672 Valve | 3/8" Hose Barb X 3/8” Hose Barb
1
19 F50679 Prewet | Supermaxx | Pump Whip 1
20 F50681 Relay | Jumper | Supermaxx 1
