© Trynex International 2012 (REV A) F50766 12
Installation Instructions
Installing on the Spreader

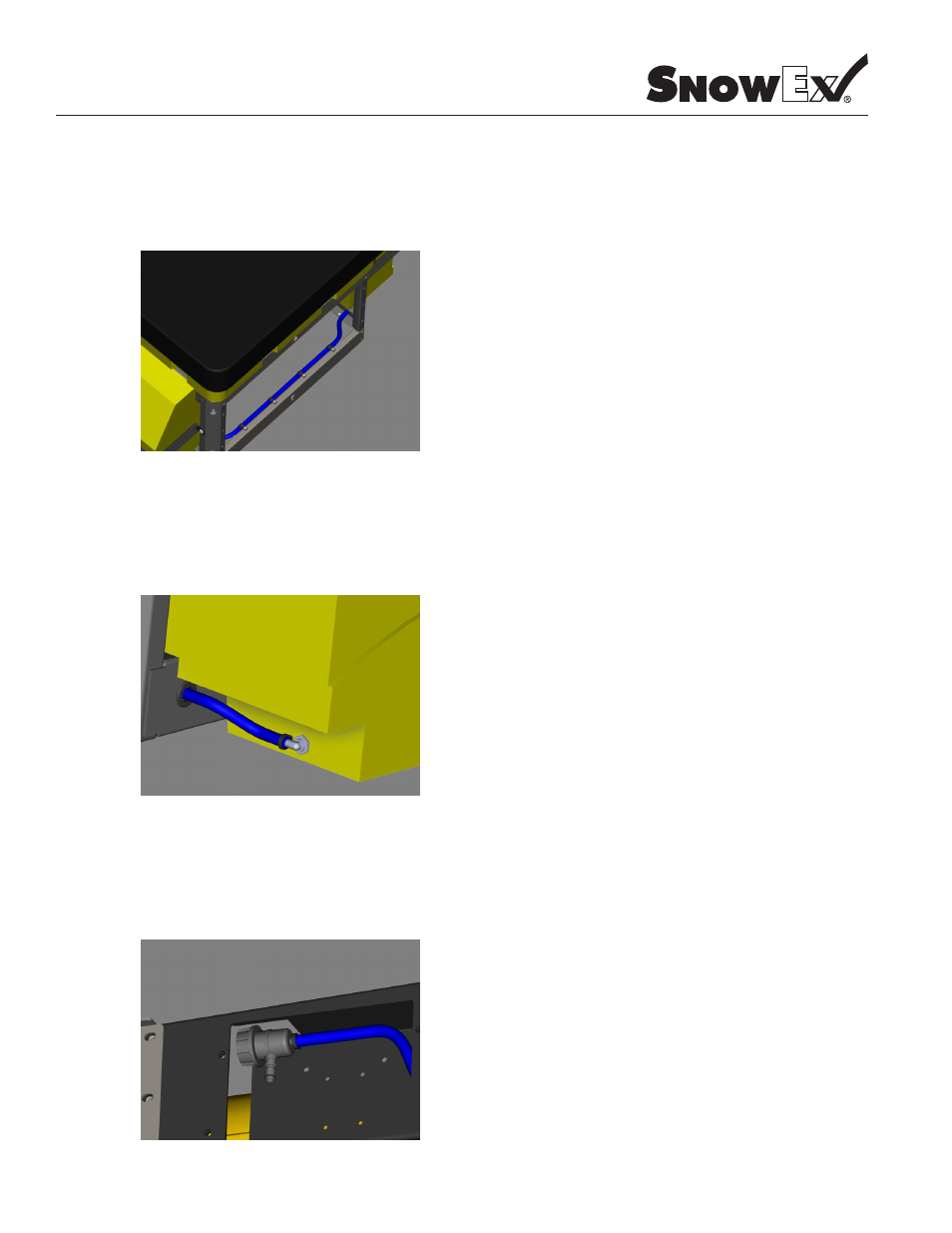

Secure the Hose to the Lower Frame Rail using the four metal Clamps [D7220] and the Driller Bolts [D6447].
Space the Clamps evenly.
Install the remaining Hose Grommet [D5602] into the hole in the frame by the Passenger-Side Tank. Slide the
Hose [D6989] through the Grommet and onto the Hose Barb already installed on the Tank. Tighten with a 1/2”
Plastic Hose Clamp [F50146] from the Tank Connection Hardware Kit.
Push hose through the hole (oval-shaped) in the Rear Auger Extension [where the pump will be mounted]. Install
the Filter [D5267] onto the end of this Hose. The Hose fits onto the Hose Barb coming off the end on the Filter.
Clamp with the remaining 1/2” Plastic Hose Clamp [F50146].
Step 7:
Step 8:
Step 9:
Channellocks...
Channellocks...
1/2 Socket...
Drill with Socket Adapter...
