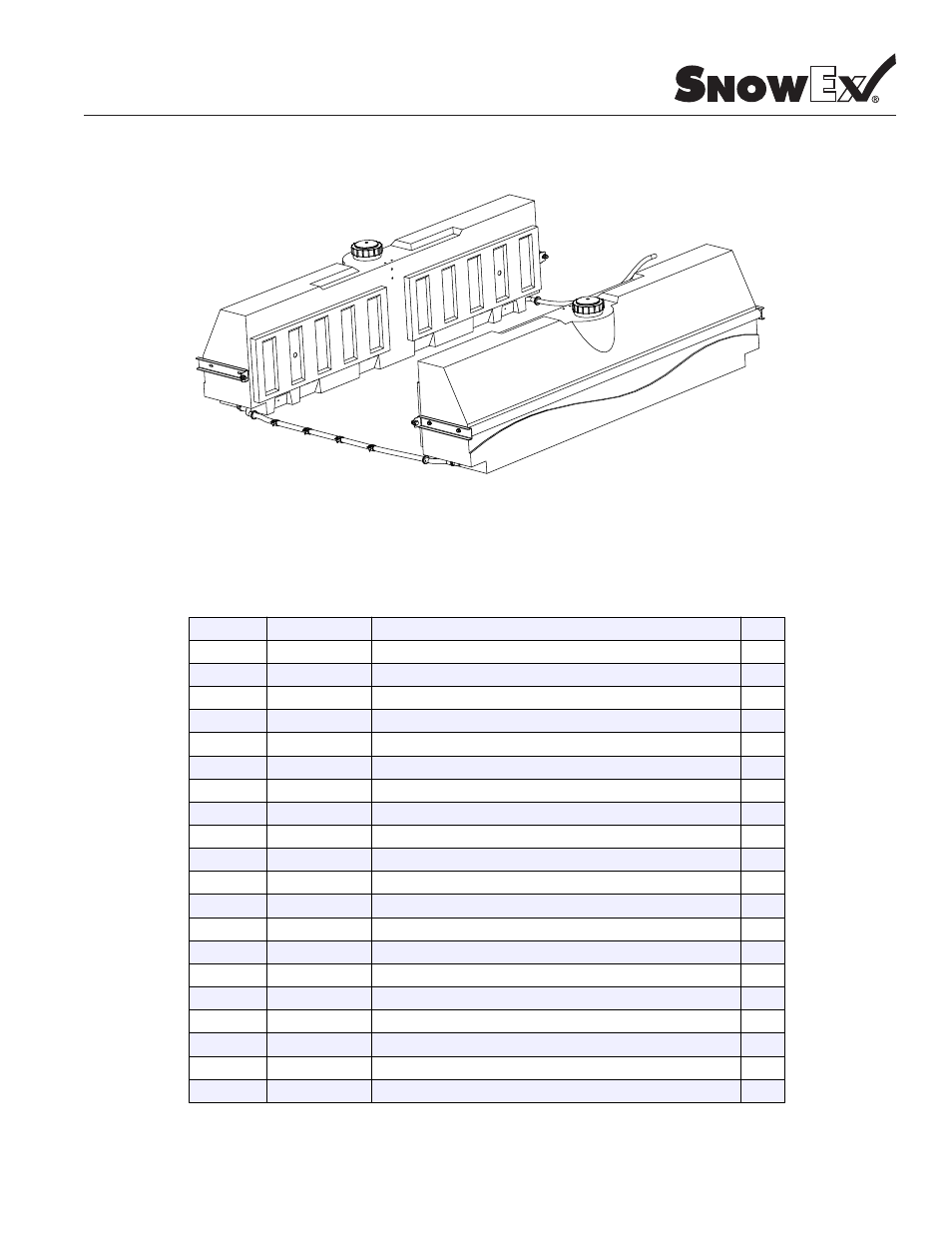

Tank Assemblies Breakdown
Model # PWX-200
BOM ID Description Description Qty
1 D5357 Garden Hose - 1/2 NPT Adapter
1
2 D5535 Nut 1/2"-13 Serrated Flange Zinc 4
3 D5602 Hose Grommet 3
4 D6447 5/16" X 1" Driller Zinc 4
5 D6452 Bolt 3/8"-16 X 1" Serrated Flange Type F Zinc 8
6 D6528 Bolt | 1/2"-13 X 1" Serrated Hex Zinc 4
7 D6928 Hose Barb | 3/4" Male Thread X 3/4" Straight 2
8 D6908 Pipe Plug | 3/4" NPT 2
9 D6925 3/4 NPT x 1/2 NPT Reducer 1
10 D6989-42 Hose | 1" X 42" PVC Clear 1
11 D6990-60 Hose | 3/4" X 1" X 60" PVC Clear 1
12 D7220 Clamp | 1" Rubber Coated 4
13 F50146 Hose Clamp | Double Tooth Poly 3/8"
1
14 F50251 Tank | 100 Gallon Yellow 2
15 F50447 Tank Mounting Tube | PWX-200 2
16 F50487 6 Inch Lid With Vent Gasket 2
17 F50577 Hose Clamp | 3/4" Double Tooth Poly 2
18 T20131 Garden Hose Cap | 3/4" Plastic 1
19 T20136 Washer | Garden Hose 1
20 D5255 Hose Barb | 3/4" Male Thread X 1/2" Straight
1
