Installation Instructions
Installing on the Spreader

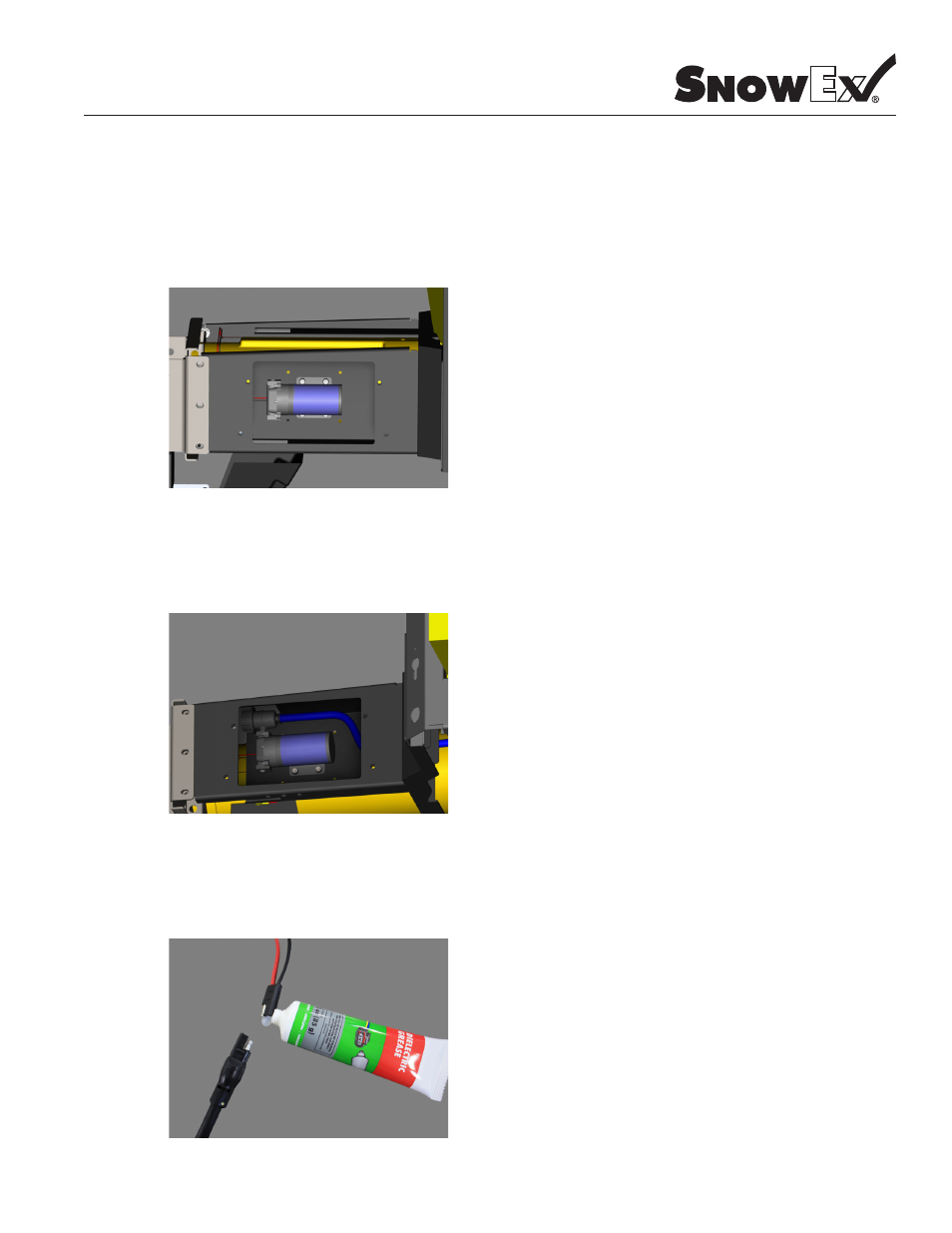

Mount Pump [D5265] to the Rear Auger Extension. Use the Pump Mounting Hardware Kit. The Pump should be
mounted so the head of the Pump faces rearward. The Washers [D5292] and the Bolts [D5948] should be on the
“Pump-Side” and the Nut [D5948] should be on the other side of the metal. Tighten until the Rubber Pump Feet
are slightly squished.
Connect the Filter to the Inlet of the Pump. This should be on the upward side. Secure the connection by pushing
the Tab on the Pump until it clicks into position.
Plug the pump into the Pre-Wet Harness (installed in “Electrical Installation”). Use Dielectric Grease on the
connection. Route the Harness over the Auger Tube.
Step 10:
Step 12:
Step 11:
Dielectric Grease...
Channellocks...
