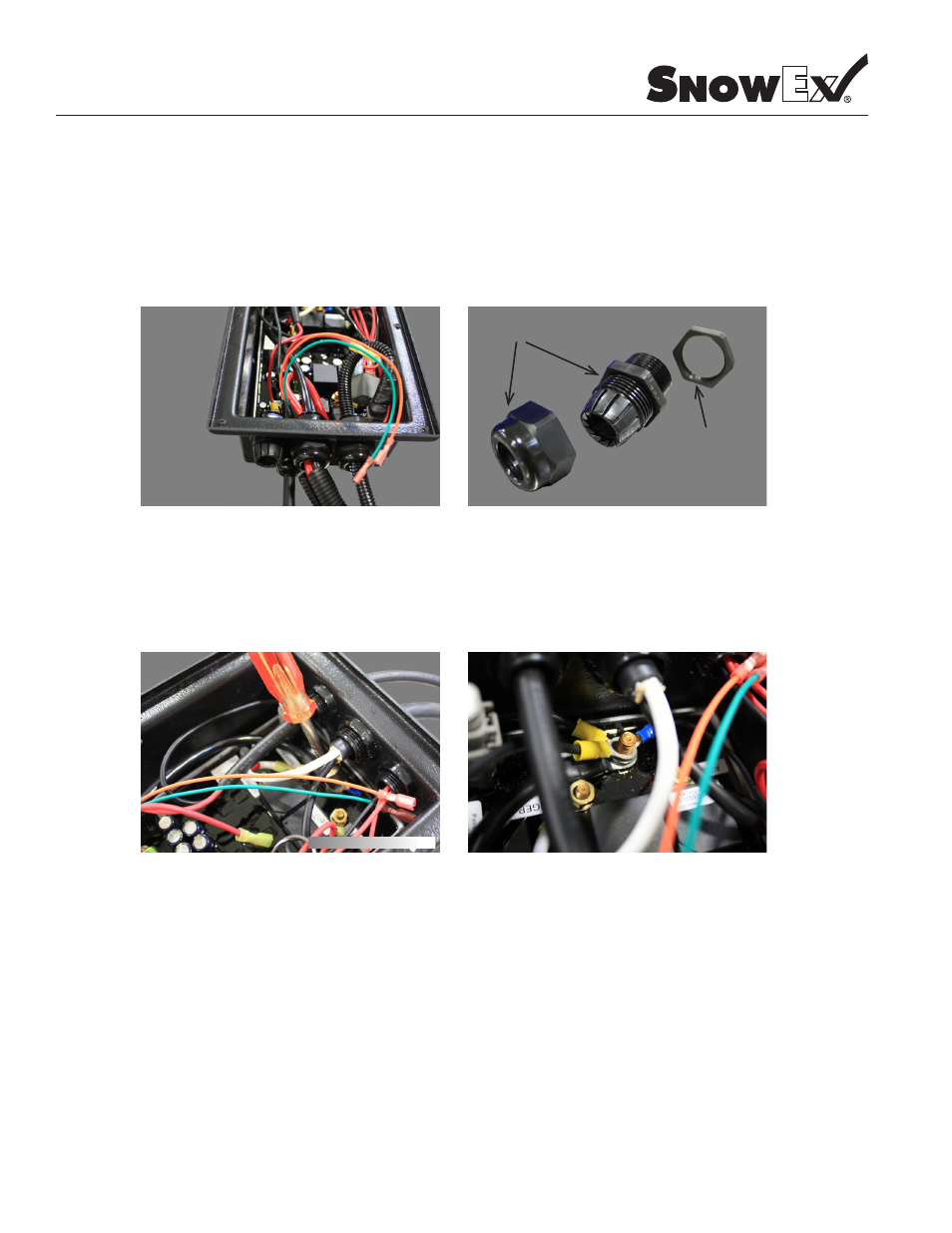

Installation Instructions
Connecting to the Spreader’s Control Module
Insert PWX Harness [F50679] through the hole from which the plug was removed. Install Restraint Nut [D6781]
on inside. Tighten. Do not tighten the Cord Restraint yet.
Remove the Nut and Serrated Washer from the “GND -” Terminal. Place the Black Wire of the PWX Harness onto
the “GND -” Terminal. Reinstall the Nut and Washer. Tighten.
Reinstall the Spinner Harness. The White Wire belongs on the “Spinner +” Terminal; the Black Wire belongs on the
“Spinner -” Terminal. Place Nut and Washer on Stud. Tighten both nuts and the Cord Restraint.
7/16” Nutdriver... 15/16” Wrench... Adjustable Wrench...
Step 9:
Step 10:
Step 11:
15/16” Wrench
Cord Restraint
Restraint Nut
1/2” Nutdriver...
