m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 7

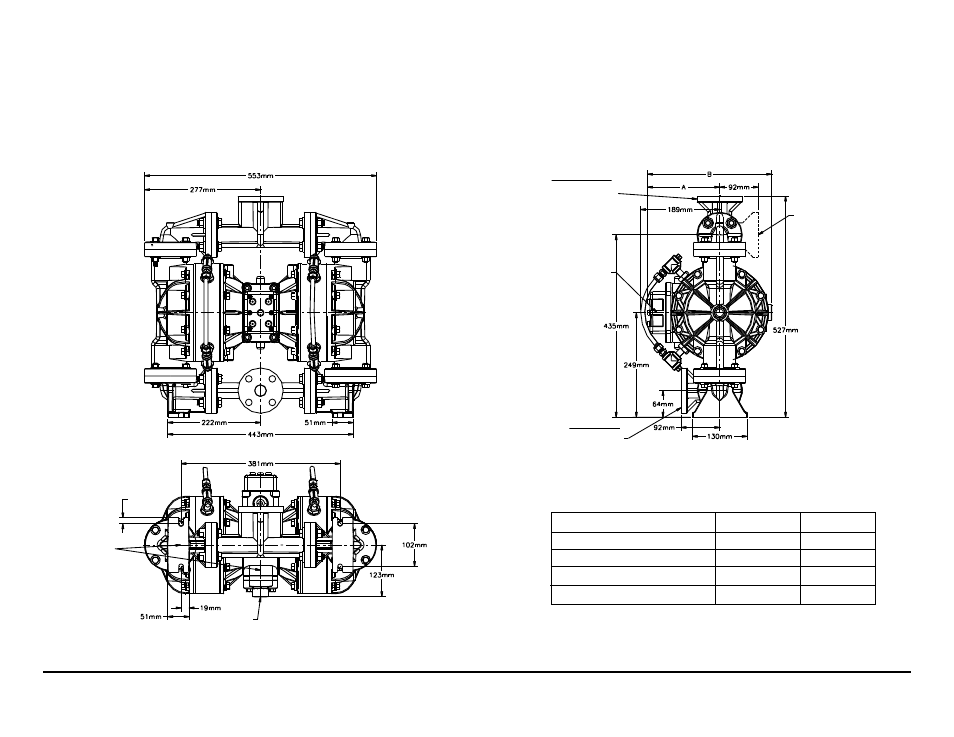

Metric Dimensions: M1F Non-Metallic
with Spill Containment
Dimensions in Millimeters
Dimensional tolerance: ±3mm
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
DISCHARGE PORT
14mm X 17mm SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
SUCTION PORT
14mm X 17mm SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
BOLT PATTERN IS
SYMMETRICAL
ABOUT CENTERLINES
14mm TYP.
4 PLACES
AIR INLET
1/2” NPT
MANIFOLD CAN ROTATE
±90° FROM VERTICAL
CENTERLINE
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST AIR IN
SUBMERGED APPLICATIONS
DIMENSION A B
Standard Pump 143mm 260mm
Pulse Output Kit 143mm 260mm
Mesh Muffler 167mm 283mm
Sound Dampening Muffler 167mm 283mm
