m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 16
Option For Virgin PTFE Equipped Pumps

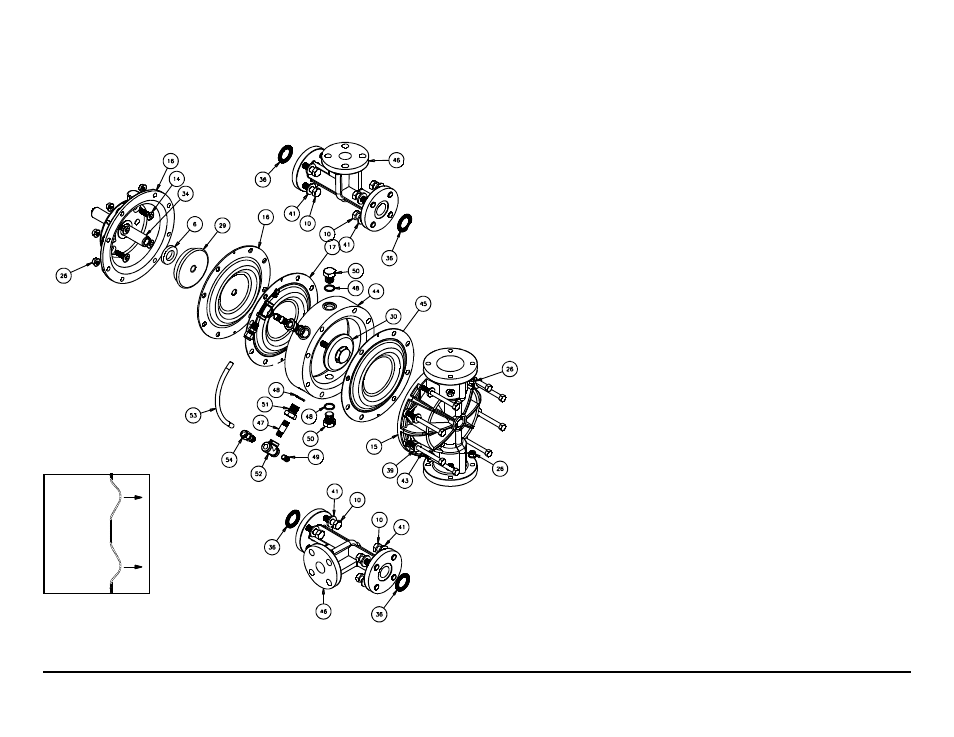

Drawing
Note:
Item 45
The diaphragm is
to be installed with
the convex side
facing toward the
outer chambers.
M1F SPILL CONTAINMENT REPAIR PARTS LIST FOR VIRGIN
PTFE EQUIPPED PUMPS
Item Part Number Description Qty
43 170-114-115 Capscrew, Hex HD 3/8 - 16 x 4.50 16
(Replace 170-052-115)
170-114-308 Capscrew, Hex HD 3/8 - 16 x 4.50 16
(Replace 170-052-115)
44 196-159-552 Chamber, Spill Containment 2
196-159-520 Chamber, Spill Containment 2
45 286-094-600 Diaphragm, Pumping 2
46 518-180-520 Manifold, Spill Containment 2
(Replace 518-179-520)
518-180-552 Manifold, Spill Containment 2
(Replace 518-179-520)
47 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
48 560-078-611 O-ring 8
49 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
50 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
51 618-031-110 Threaded Bushing 4
618-031-308 Threaded Bushing 4
52 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
53 860-056-606 Tube, Sight 2
54 866-060-110 Connector, Tube 4
*Note: The Diaphragm is to be installed with the convex side facing
toward the outer chamber. See drawing.
Note: Pump units with One-Piece Bonded Diaphragm option will not
include Overlay Diaphragms (Items 18) and Outer Diaphragm Plate
(Item 30).
