m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 33

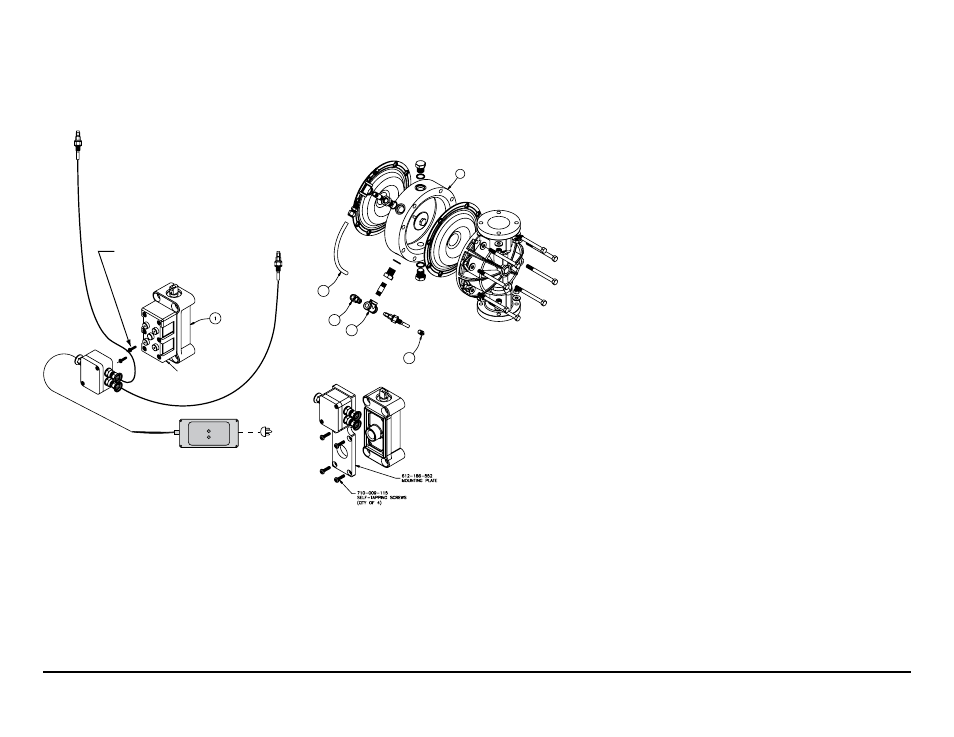

Leak Detection Options Drawing
LEAK DETECTION OPTION A (ELECTRONIC)
Follow instructions found elsewhere in this manual, “Filling the Spill
Containment Chambers” when installing leak detectors.
Electronic Leak Detector Installation
Kit 032-037-000 100VAC 50Hz
or 110-120VAC 50 / 60Hz
or 220-240VAC 50 / 60Hz
Kit 032-045-000 12-32VDC
To install electronic leak detectors, remove the bottom ¼" NPT pipe plug
on the visual sight tube (item 53). Insert leak detector into the ¼" pipe tee
(item 52).
Leak Detection Option B (Mechanical)
Follow instructions found elsewhere in this manual, “Filling the Spill
Containment Chambers” when installing leak detectors.
Mechanical Leak Detector Installation
Kit 031-023-110
To install mechanical leak detectors, remove the bottom ¼" NPT pipe plug
on the visual sight tube (item 53). Insert leak detector into the ¼" pipe tee
(item 52).
53
54
52
49
44
MUFFLER CAP
710-014-330
Self-tapping Screws
(Qty of 2)
For pumps with Alternate Mufflers
For pumps 530-028-550
Enclosed Muffler
