CAUTION: Nonmetallic pumps and plastic components are not UV stabilized. Ultraviolet radiation can damage these parts and negatively affect material
properties. Do not expose to UV light for extended periods of time.
Nitrile General purpose, oil-resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not be used with highly polar
solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.
PVDF A durable fluoroplastic with excellent chemical resistance. Excellent for UV applications. High tensile strength and impact resistance.
NEOPRENE All purpose. Resistant to vegetable oils. Generally not affected by moderate chemicals, fats, greases and many oils and
solvents. Generally attacked by strong oxidizing acids, ketones, esters, nitro hydrocarbons and chlorinated aromatic hydrocarbons.
PTFE Chemically inert, virtually impervious. Very few chemicals are known to react chemically with PTFE: molten alkali metals, turbulent
liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at
elevated temperatures.
FKM (Fluorocarbon) shows good resistance to a wide range of oils and solvents; especially all aliphatic, aromatic and halogenated hydro-
carbons, acids, animal and vegetable oils. Hot water or hot aqueous solutions (over 70°F) will attack FKM.
Santoprene ® Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex life. Excellent abrasion resistance.
Polypropylene A thermoplastic polymer. Moderate tensile and flex strenght. Resists strong acids and alkalie. Attacked by chlorine, fuming
nitric acid and other strong oxidizing agents.
CAUTION! Operating temperature limitations are as follows:
Materials
Maximum* Minimum*
Operating Temperatures
For specific applications, always consult the Warren Rupp “Chemical Resistance Chart”
190°F -10°F
88°C -23°C
250°F 0°F
121°C -18°C
200°F -10°F
93°C -23°C
220°F -35°F
104°C -37°C
350°F -40°F
177°C -40°C
275°F -40°F
135°C -40°C
180°F 32°F
82°C 0°C
Maximum and Minimum Temperatures are the limits for which these
materials can be operated. Temperatures coupled with pressure affect the
longevity of diaphragm pump components. Maximum life should not be
expected at the extreme limits of the temperature ranges.

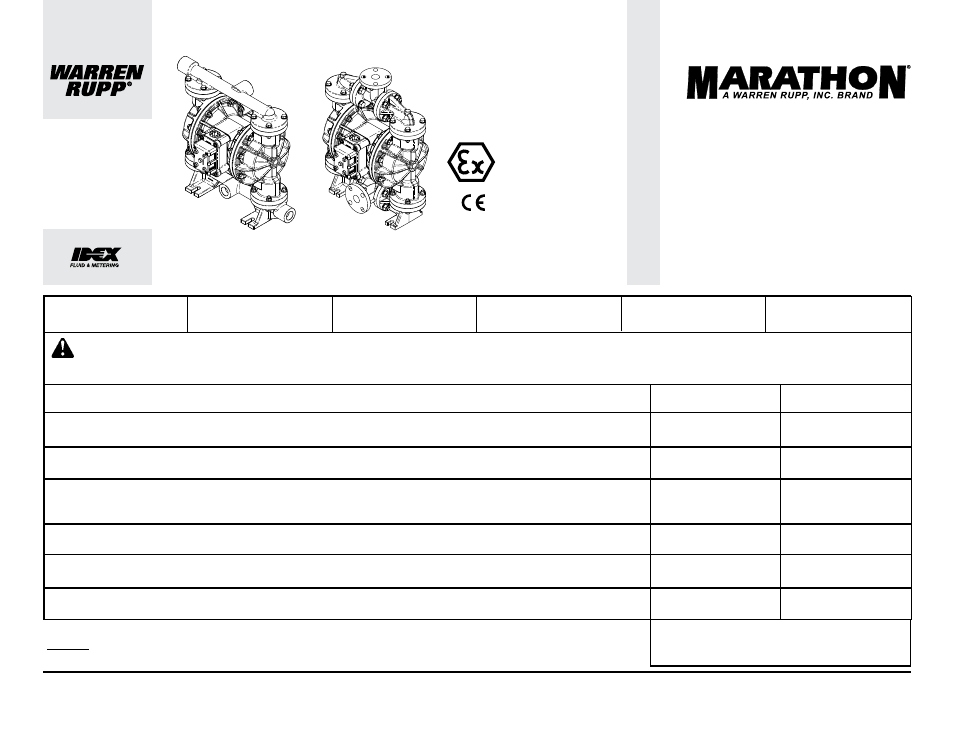

M1F
Non-Metallic
Design Level 3
Ball Valve
Air-Operated
Double Diaphragm Pump
ENGINEERING, PERFORMANCE
& CONSTRUCTION DATA
INTAKE/DISCHARGE PIPE SIZE
1" ANSI Flange or
PN10 25mm DIN Flange
CAPACITY
0 to 53 gallons per minute
(0 to 200 liters per minute)
AIR VALVE
No-lube, no-stall
design
SOLIDS-HANDLING
Up to .25 in. (6mm)
HEADS UP TO
100 psi or 231 ft. of water
(7 bar or 70 meters)
DISPLACEMENT/STROKE
.19 gallon / .72 liter
Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
See page 2
for ATEX ratings. See pages 2, 38 and 39
for ATEX ratings.
INLINE PORTED SIDE PORTED
2.50 64
17.12 435
19.94 506
18.18 462
SUCTION PORT
1" FNPT
SUCTION PORT (OPTIONAL)
1" FNPT
DISCHARGE PORT (OPTIONAL)
1" FNPT
A
9.81 249
2X 2.15 55
4.96 126
.50 13
DISCHARGE PORT
1" FNPT
AIR INLET
1/2 FNPT
4.06 103
10.09 256
4X .53 13
MTG. SLOT
STANDARD INTEGRAL MUFFLER
GENERAL NOTES
OPTIONAL SUCTION & DISCHARGE SIDE PORTS WILL BE PLUGGED AT 1.
FACTORY, NOT SHOWN
STANDARD INTEGRAL MUFFLER (SHOWN) COVERS 1" FNPT EXHAUST PORT 2.
FOR OPTIONAL MUFFLER STYLES OR PIPING EXHAUST AIR IN SUBMERGED
APPLICATIONS
S1F NON-METALLIC
IN-LINE PORTED OPTION
DIMENSIONAL TOLERANCE = .125 [3mm]
B.1 REMOVED ALL TABULATED DIMENSIONS EXCEPT "A" MF 4/23/2010
A.1 RELEASED FOR GENERAL USE MF 2/4/2010
REV REVISION CHG DATE APP DATE ECN
Standard Integral
Muffler Option
Mesh & Sound
Dampening Muffler
Option
A 11.81 [300] 13.50 [343]
THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE WITHOUT THE EXPRESS WRITTEN PERMISSION OF IDEX AODD
MADE FROM
ASS'Y REFERENCE PUMP REFERENCE
MATERIAL
PART NUMBER
DESCRIPTION
DRAWING NUMBER
IDEX AODD
REV B.1
UNLESS OTHERWISE SPECIFIED
TOLERANCES
.XX .XXX .010 .005
ANGULAR 1/2
SURFACE FINSH 63
DO NOT SCALE DRAWING DIMENSIONS ARE INCHES
SHEET
C
6 7 8
A
8 7 6 5 4 3 2 1
D
B
D
C
B
A
450.468.000
OUTLINE, PUMP, S1F, ONE PIECE MANIFOLD
1 1 of
S1F NON-METALLIC
17.04 433
A
.50 13
17.12 435
20.75 527
2.50 64
9.81 249
4.96 126
3.63 92
3.62 92
90
4.00 102
10.19 259
4X .44
1.
.125 [3mm]
H.1 REVISED DRAWING MF 4/23/2010
REV REVISION CHG DATE APP DATE ECN
A 11.81 [300] 13.50 [343]
THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE WITHOUT THE EXPRESS WRITTEN PERMISSION OF IDEX AODD
MADE FROM
ASS'Y REFERENCE PUMP REFERENCE
MATERIAL
PART NUMBER
DESCRIPTION
DRAWING NUMBER
IDEX AODD
REV
H.1
UNLESS OTHERWISE SPECIFIED
TOLERANCES
.XX .XXX .010 .005
ANGULAR 1/2
SURFACE FINSH 63
DO NOT SCALE DRAWING DIMENSIONS ARE INCHES
SHEET
C
6 7 8
A
8 7 6 5 4 3 2 1
D
B
D
C
B
A
450.307.000
OUTLINE, PUMP, S1F, CENTER PORTED
1 3 of
S1F NON-METALLIC
SUCTION PORT
.56 X .69 SLOTTED BOLTING CONFIGURATION
FITS TO EITHER:
1" ANSI 125# FLANGE CONNECTION OR
PN10 25mm DIN FLANGE CONNECTION
DISCHARGE PORT
.56 X .69 SLOTTED BOLTING CONFIGURATION
FITS TO EITHER:
1" ANSI 125# FLANGE CONNECTION OR
PN10 25mm DIN FLANGE CONNECTION
MANIFOLD CAN ROTATE
FROM VERTICAL CENTERLINE
AIR INLET
1/2 FNPT
STANDARD INTEGRAL MUFFLER
GENERAL NOTES
STANDARD INTEGRAL MUFFLER (SHOWN) COVERS 1" FNPT EXHAUST PORT
FOR OPTIONAL MUFFLER STYLES OR PIPING EXHAUST AIR IN SUBMERGED
APPLICATIONS
S1F NON-METALLIC
CENTER PORTED OPTION
DIMENSIONAL TOLERANCE =
MTG. SLOT
Standard Integral Muffler Option
Mesh & Sound
Dampening Muffler Option
