SANDPIPER M1F Non-Metallic - Manual (Page 20)

m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 18
Note:
Item 55
The diaphragm is
to be installed with
the convex side
facing toward the
outer chambers.

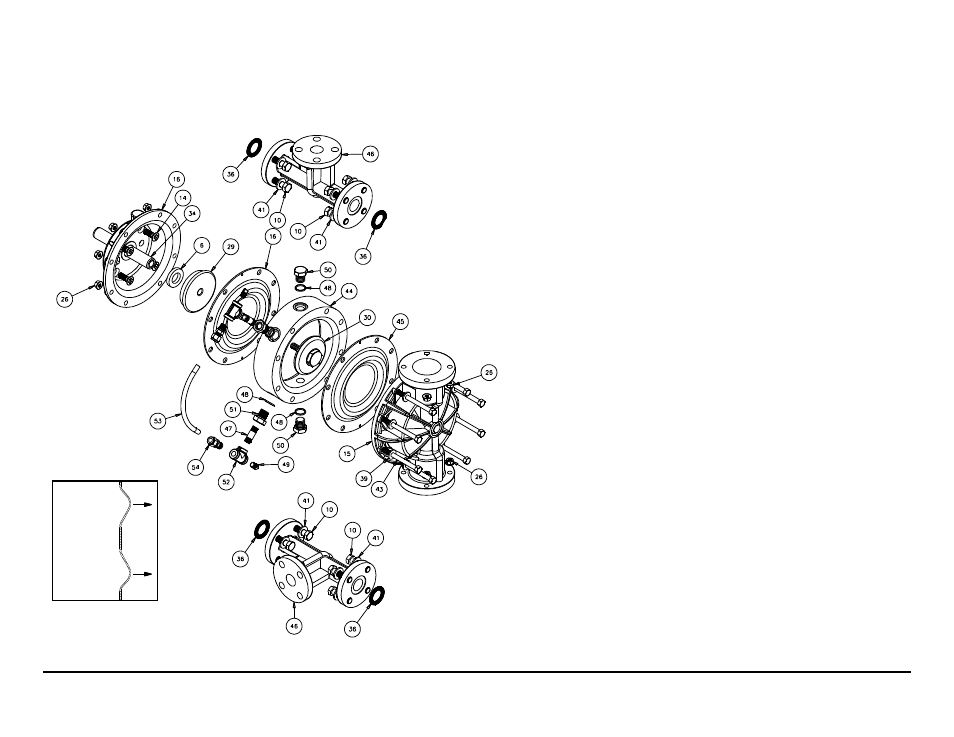

Option For TPE
Equipped Pumps Drawing
M1F SPILL CONTAINMENT REPAIR PARTS LIST FOR TPE
EQUIPPED PUMPS
Item Part Number Description Qty
43 170-114-115 Capscrew, Hex HD 3/8 - 16 x 4.50 16
(Replace 170-052-115)
170-114-308 Capscrew, Hex HD 3/8 - 16 x 4.50 16
(Replace 170-052-115)
44 196-159-552 Chamber, Spill Containment 2
196-159-520 Chamber, Spill Containment 2
46 518-180-520 Manifold, Spill Containment 2
(Replace 518-179-520)
518-180-552 Manifold, Spill Containment 2
(Replace 518-179-552)
47 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
48 560-078-611 O-ring 8
49 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
50 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
51 618-031-110 Threaded Bushing 4
618-031-308 Threaded Bushing 4
52 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
53 860-056-606 Tube, Sight 2
54 866-060-110 Connector, Tube 4
55 286-092-354* Diaphragm, Pumping 2
18 286-108-600 Diaphragm, Overlay is not used 2
*Note: The Diaphragm is to be installed with the convex side facing toward
the outer chamber. See drawing.
