SANDPIPER M1F Non-Metallic - Manual (Page 16)

m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 14

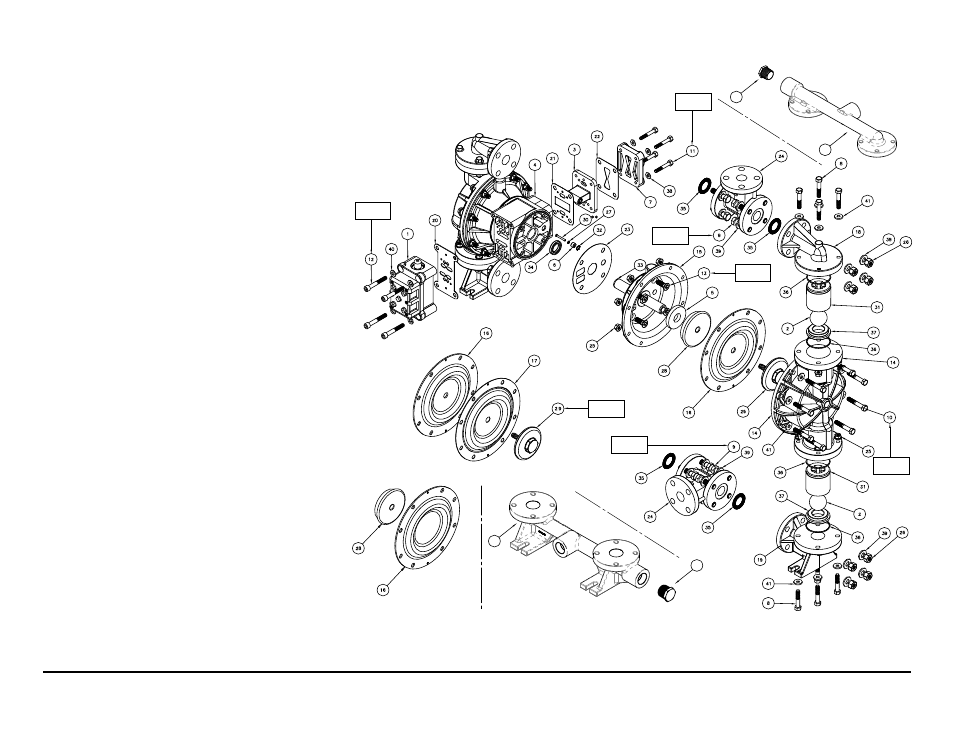

Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-217-000 AIR END KIT (For Polypropylene Center Section)
Seals, O-rings, Gaskets, Retaining Rings, Air Valve
Sleeve & Spool Set and Pilot Valve Assembly
476-218-000 AIR END KIT (Stroke Indicator Option, For
Polypropylene Center Section)
Seals, O-rings, Gaskets, Retaining Rings, Air Valve,
Sleeve & Spool Set and Pilot Valve Assembly
476-197-354 WETTED END KIT
Santoprene Diaphragms, Santoprene Balls
and PTFE Seals
476-197-360 WETTED END KIT
Nitrile Diaphragms, Nitrile Balls and PTFE Seals
476-197-363 WETTED END KIT
FKM Diaphragms, FKM Balls and PTFE Seals
476-197-365 WETTED END KIT
Neoprene Diaphragms, Neoprene Balls and
PTFE Seals
476-197-635 WETTED END KIT
Neoprene Diaphragms, PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
476-197-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay
Diaphragms, TFE Balls and TFE Seals
476-197-659 WETTED END KIT
One-Piece Bonded Diaphragms,
PTFE Balls, PTFE Seals
476-198-655 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay Diaphragms,
PTFE Pumping Diaphragms, PTFE Balls and
PTFE Seals
476-198-354 WETTED END KIT
Santoprene Diaphragms, Santoprene Pumping
Diaphragms, Santoprene Check Balls and PTFE Seals
476-198-659 WETTED END KIT
One-Piece Bonded Diaphragms, PTFE Pumping
Diaphragms, PTFE Balls, PTFE Seals
ELECTRONIC LEAK DETECTOR KITS
032-037-000 110 VAC / 220 VAC
032-045-000 12 - 32 VDC
IMPORTANT NOTE: Polypropylene pumps are shipped with the 1" NPT Pipe Plug (Item 64) installed in the end ports of both suction and discharge one-piece manifolds. To convert to the Inline porting
positions for pump installation and operation, first remove the pipe plugs and re-install in the center ports. Apply PTFE tape or pipe sealant to threads of the plug before installation.
64
63
62
64
Torque:
120 in. lbs.
Torque:
180 in. lbs.
Torque:
120 in. lbs.
Torque:
200 in. lbs.
Torque:
200 in. lbs.
Torque:
180 in. lbs.
Torque:
320 in. lbs.
ONE-PIECE BONDED OPTION
OVERLAY OPTION
INLINE SUCTION
MANIFOLD OPTION
INLINE DISCHARGE
MANIFOLD OPTION
