SANDPIPER M1F Non-Metallic - Manual (Page 8)

m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 6

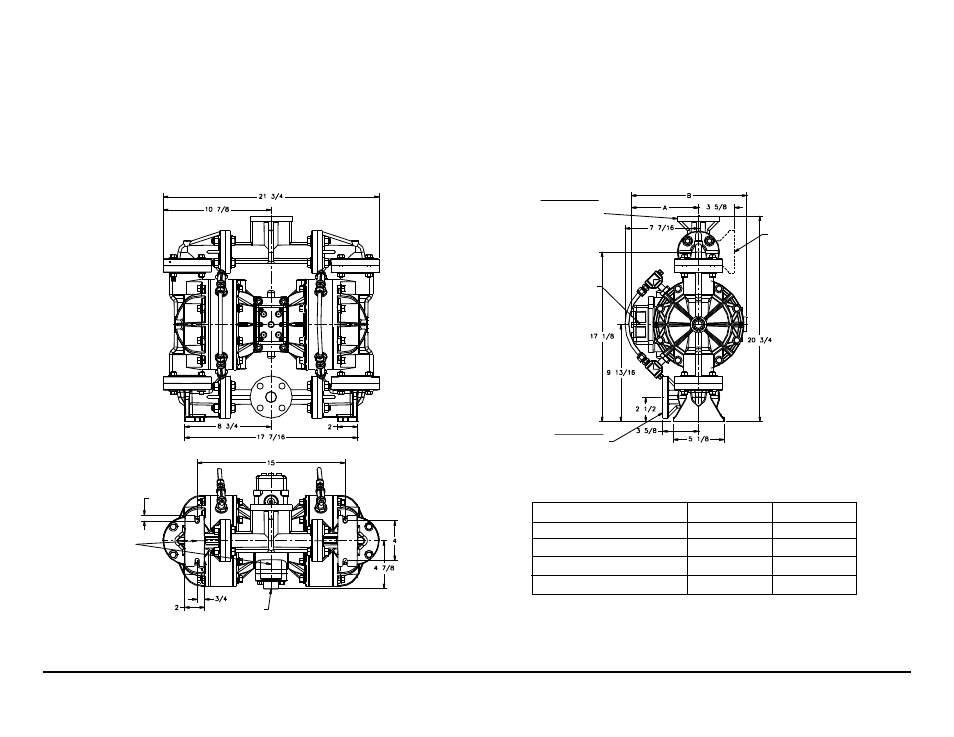

Dimensions: M1F Non-Metallic
with Spill Containment Dimensions in Inches
Dimensions in Inches
Dimensional tolerance: ± 1 /
8
"
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
DISCHARGE PORT
9/16 X 11/16 SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
SUCTION PORT
9/16 X 11/16 SLOTTED BOLTING
CONFIGURATION FITS TO EITHER 1” ANSI 125#
FLANGE CONNECTION OR PNIO 25mm DIN
FLANGE CONNECTION
BOLT PATTERN IS
SYMMETRICAL
ABOUT CENTERLINES
9/16 TYP.
4 PLACES
AIR INLET
1/2” NPT
MANIFOLD CAN ROTATE
±90° FROM VERTICAL
CENTERLINE
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT FOR OPTIONAL
MUFFLER STYLES OR PIPING EXHAUST AIR IN
SUBMERGED APPLICATIONS
DIMENSION A B
Standard Pump 5 5/8" 10 1/4"
Pulse Output Kit 5 5/8" 10 1/4"
Mesh Muffler 8 9/16" 11 1/8"
Sound Dampening Muffler 8 9/16" 11 1/8"
