SANDPIPER M1F Non-Metallic - Manual (Page 22)

m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 20

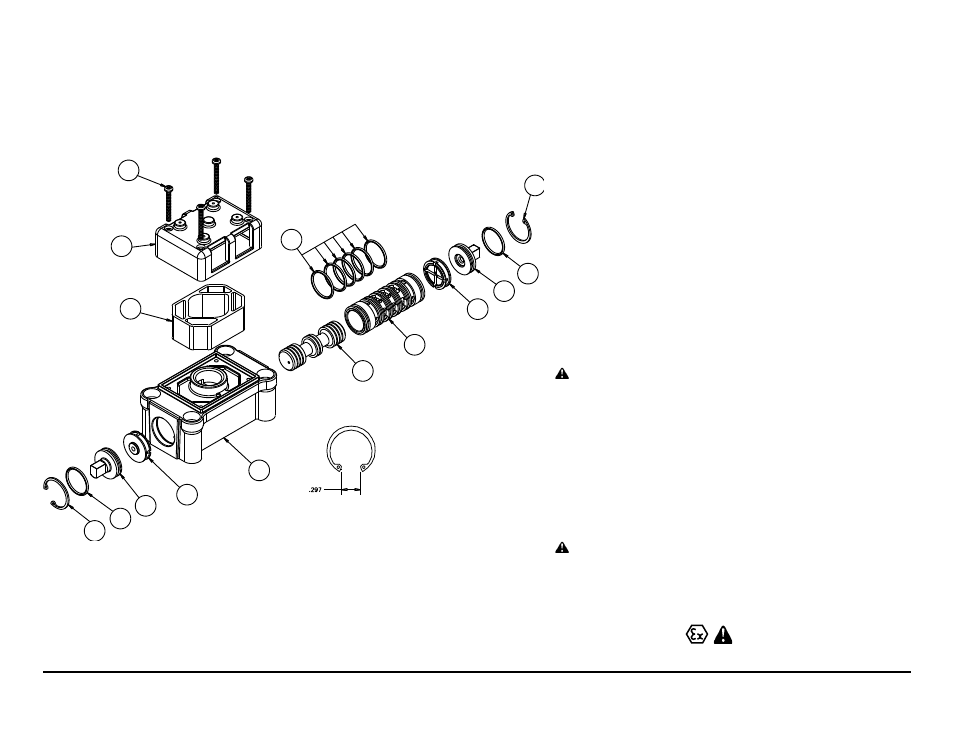

Air Distribution Valve Assembly Drawing
AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-140-000 Air Valve Assembly 1
1-A 031-139-000 Sleeve and Spool Set 1
1-B 095-094-551 Body, Air Valve 1
1-C 132-029-552 Bumper 2
1-D 165-096-551 Cap, Muffler 1
1-E 165-115-558 Cap, End 2
1-F 530-028-550 Muffler 1
1-G 560-020-360 O-ring 8
1-H 675-044-115 Ring, Retaining 2
1-J 710-015-115 Screw, Self-tapping 4
For Pumps with Alternate Mesh, Sound Dampening Mufflers or Piped
Exhaust:
1 031-141-000 Air Valve Assembly 1
(Includes all items used on 031-140-000 minus
items 1-D, 1-F & 1-J)
AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-140-001 Air Valve Assembly 1
1-A 031-139-000 Sleeve and Spool Set 1
1-B 095-094-559 Body, Air Valve 1
1-C 132-029-552 Bumper 2
1-D 165-096-559 Cap, Muffler 1
1-E 165-115-558 Cap, End 2
1-F 530-028-550 Muffler 1
1-G 560-020-360 O-ring 8
1-H 675-044-115 Ring, Retaining 2
1-J 710-015-115 Screw, Self-tapping 4
For Pumps with Alternate Mesh, Muffler or Piped Exhaust:
1 031-141-001 Air Valve Assembly 1
(Includes all items used on 031-140-001 minus
items 1-D, 1-F & 1-J)
1-J
1-D
1-F
1-G
1-H
1-G
1-E
1-C
1-A
1-A
1-B
1-C
1-E
1-G
1-H
Note: ATEX Compliant
NOTE: CHECK GAP AFTER ASSEMBLY
TO INSURE COMPLETE
INSTALLATION OF RETAINING RING
