SANDPIPER M1F Non-Metallic - Manual (Page 26)

m1fnmdl3sm-rev0713 Model M1F Non-Metallic Page 24
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes All Items Used on Composite Repair Parts List Except as Shown)
Item Part Number Description Qty
56 893-097-000 Solenoid Valve, NEMA4 1
57 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
58 241-001-000 Connector, conduit 1
59 170-029-330 Capscrew, Hex HD 5/16 - 18 x 1.50 4
60 618-051-150 Plug 2
For Explosion Proof Solenoid Coils used in North America and
outside the European Union.
57 219-009-001 Solenoid Coil, 120VAC 60 Hz 1
219-009-002 Solenoid Coil, 240VAC 60 HZ 1
219-009-003 Solenoid Coil, 12VDC 1
219-009-004 Solenoid Coil, 24VDC 1
219-009-005 Solenoid Coil, 110VAC 50 Hz 1
219-009-006 Solenoid Coil, 230VAC 50 Hz 1
Note: Item 58 (Conduit Connector) is not required

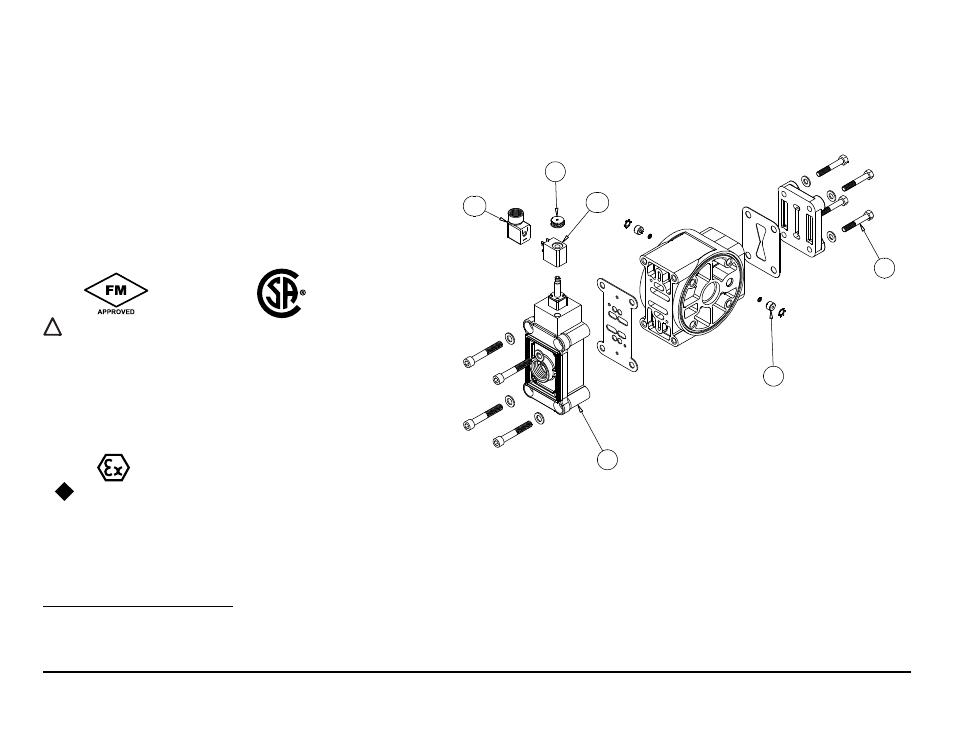

Solenoid Shifted Air Valve Drawing
58
56
57
56
60
59
IEC EEX m T4
*Special Conditions For Safe Use
A fuse corresponding to its rated current (max. 3*I
rat
according IEC 60127-2-1) or a motor protecting switch with short-circuit and thermal instantaneous tripping (set to rated current) shall be connected in
series to each solenoid as short circuit protection. For very low rated currents of the solenoid the fuse of lowest current value according to the indicated IEC standard will be sufficient. The fuse may be
accommodated in the associated supply unit or shall be separately arranged. The rated voltage to the fuse shall be equal to or greater than the stated rated voltage of the magnet coil. The breakage
capacity of the fuse-link shall be as high as or higher than the maximum expected short circuit current at the location of the installation (usually 1500 A). A maximum permissible ripple of 20% is valid for
all magnets of direct-current design.
II 2G EEx m c T5
II 2D c IP65 T100°C
For ATEX Compliant Solenoid Coils used in the European Union
57 219-011-001 Solenoid Coil, Single mounting 12 VDC, 3.3W / 267mA 1
219-011-002 Solenoid Coil, Single mounting 24 VDC, 3.3W / 136mA 1
219-011-003 Solenoid Coil, Single mounting 110/120 VAC, 3.4W / 29mA 1
219-011-004 Solenoid Coil, Single mounting 220/240 VAC, 3.4W / 15mA 1
Note: Item 37 (Conduit Connector) is not required
*
II 2G EE x m c II T5
II 3/2 G E x m c II T5
II 2D c IP65 T100°c
Compressed Air Temperature Range: Maximum Ambient Temperature to plus 50°C
