Assembling and connecting the external battery cabinet > Connecting the power cables
34020846EN/AD - Page 54
1. Installation

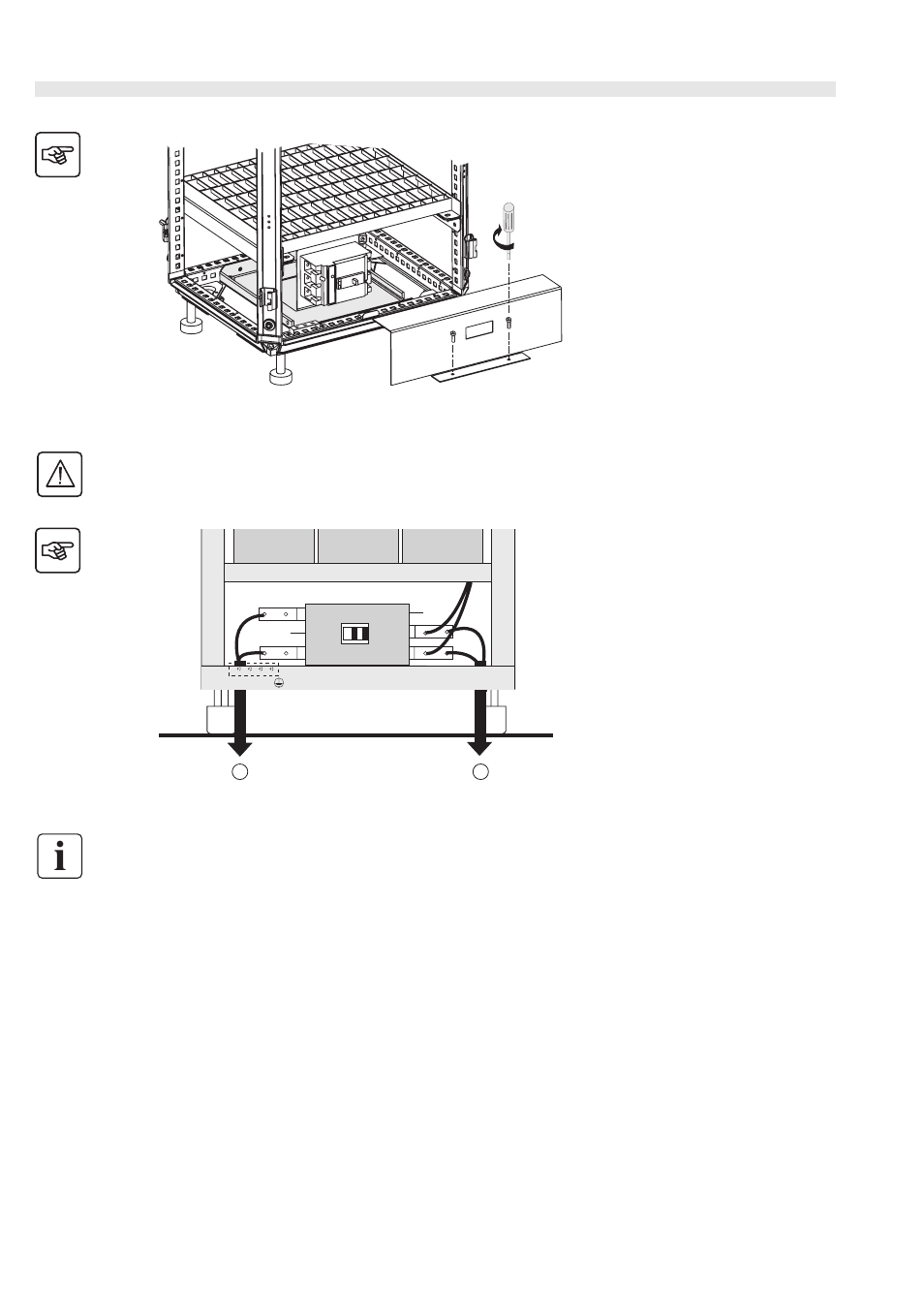

Connecting the power cables
4. Connect the control-wire cables (See
“Connecting the control-wire cables”,
page 55.).
5. Secure the protective cover after
connecting the batteries to the circuit
breaker.
This operation must be carried out by qualified personnel.
The door must be open.
The protective cover must be removed.
The battery circuit breaker must be open.
Key
(1) To the UPS cabinet
(2) To the battery or auxiliary battery
cabinet 2
1. Connect the earthing conductor to
the earthing bar in the battery
cabinet(1).
2. Connect the positive conductor (+)
to the positive terminal.
3. Connect the negative conductor (-)
to the negative terminal.
4. Secure the protective cover after
connecting the batteries to the circuit
breaker.
For more information, see the "Battery circuit-breaker kit in a cabinet" installation manual no. 34021530.
x2
5
+
-
1 2
B +
B-
