APC GALAXY 7000 - Manual (Page 11)

Possible installations >
34020846EN/AD - Page 11
1. Installation

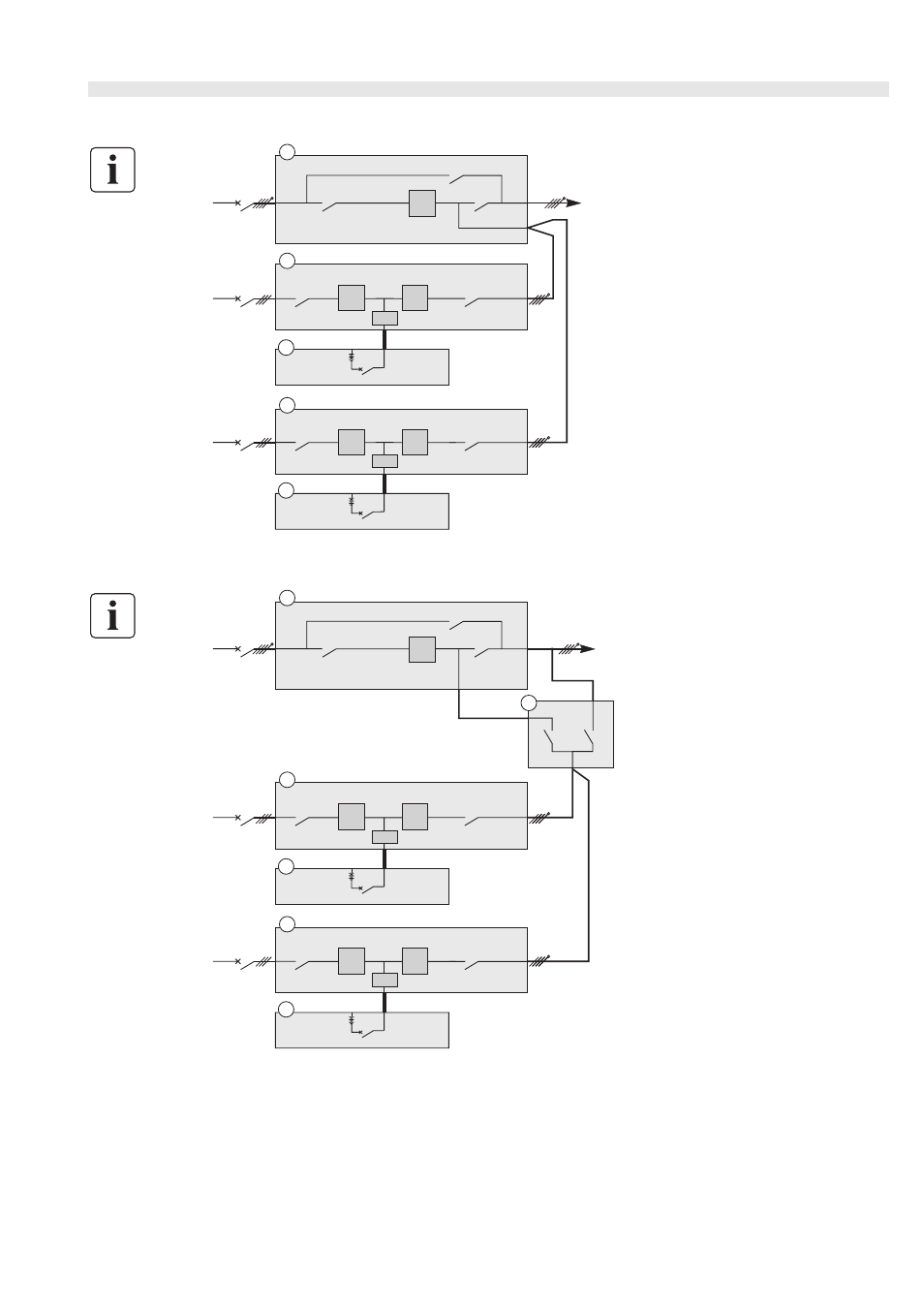

Parallel UPSs with SSC (static-switch cabinet)
Parallel UPS with SSC and SSC maintenance cabinet
UPS1 cabinet (1)
PFC rectifier module A
Inverter module B
Battery chopper C
Batteries (2)
SSC (3)
Static-switch on AC bypass line D
UPS 1 cabinet (1)
PFC module A
Inverter module B
Battery chopper C
Batteries (2)
SSC (3)
Backup static switch module D
SSC maintenance cabinet (4)
Normal AC
Bypass AC
Normal AC
Q5N
Q3BP
Q4S
Q1 Q5N
+ - QF1
Q1 Q5N
1
3
1
A B
D
A B
C
C
+– QF1
+– QF1
2
2
Load
Normal AC
Bypass AC
Normal AC
Q5N
Q3BP
Q4S
Q1 Q5N
+ - QF1
Q1 Q5N
1
3
1
A B
D
A B
C
C
+– QF1
+– QF1
2
2
QN
4
QM
Load
