34020846EN/AD - Page 17
1. Installation

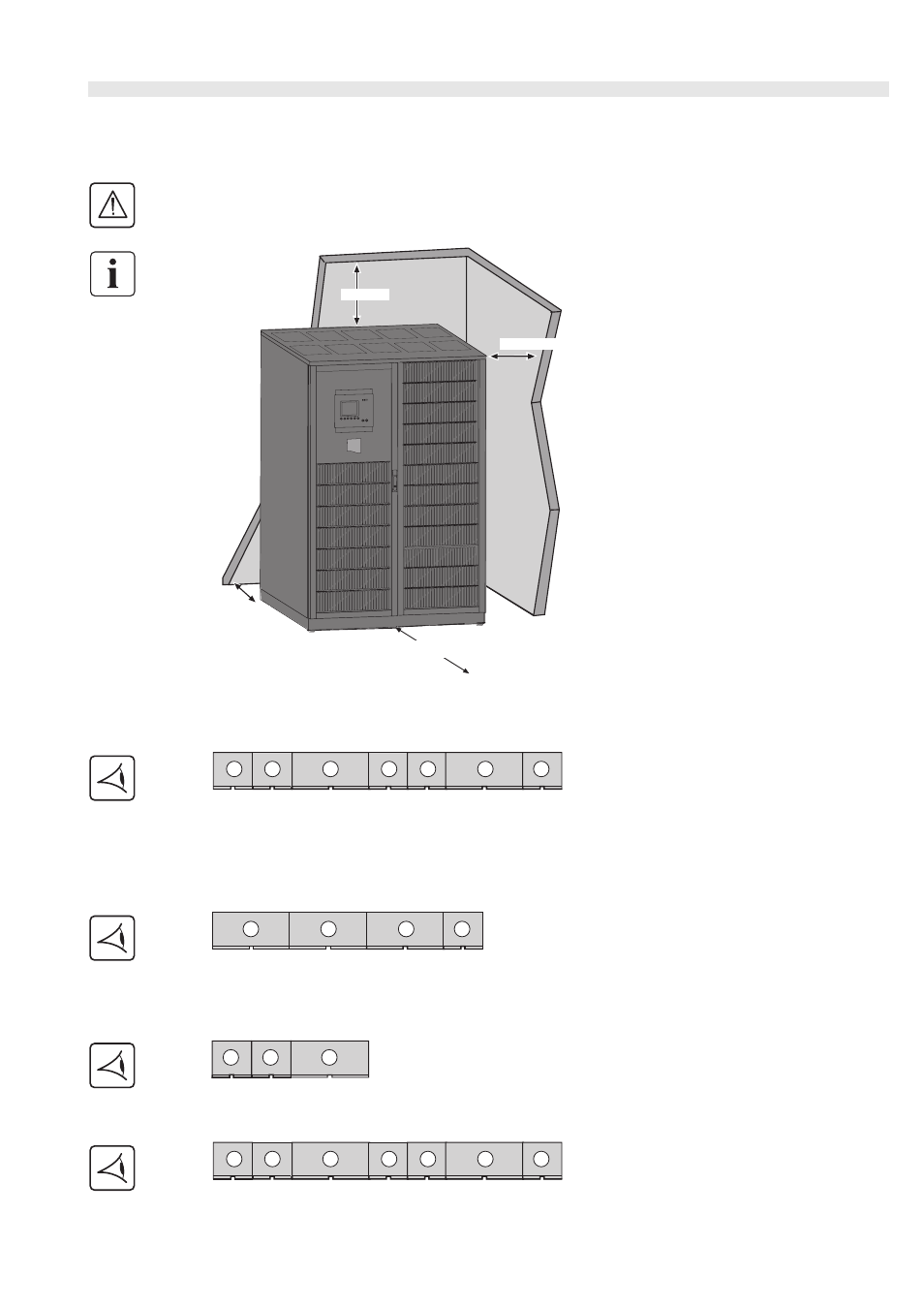

Position in room
UPS cabinets
SSCs
Layout example for an SSC with two parallel UPS units
External bypass cabinets
Layout example for an external bypass cabinet with three UPS units
Battery / auxiliary cabinets
Layout example for two battery cabinets with one UPS unit
Layout example for two battery cabinets and two auxiliary cabinets in a parallel system with an SSC
The UPS must be installed in a room with restricted access (qualified personnel only).
To ensure correct ventilation, leave nothing
on top of the UPS.
Leave one meter of free space in front of the
UPS for door opening.
The cabinet rests on four cylindrical feet, 60
mm in diameter, positioned in the four corners
of the cabinet to spread the weight.
If 500 mm of free space is not maintained
above the UPS, abnormal temperature rise
may occur.
The UPS can operate correctly back to the
wall, but it is preferable to leave some space
for easier maintenance.
The distance between the bottom panel and
the floor must be less than 10 mm.
Auxiliary cabinet 2 (1)
Battery cabinet 2 (2)
UPS2 cabinet (3)
Auxiliary cabinet 1 (4)
Battery cabinet 1(5)
UPS1 cabinet (6)
SSC (7)
UPS1 cabinet (1)
UPS2 cabinet (2)
UPS3 cabinet (3)
External bypass cabinet (4)
Battery cabinet 1 (1)
Battery cabinet 2 (2)
UPS cabinet (3)
Auxiliary cabinet 2 (1)
Battery cabinet 2 (2)
UPS2 cabinet (3)
Auxiliary cabinet 1 (4)
Battery cabinet 1 (5)
UPS1 cabinet (6)
SSC (7)
>300 mm
>600 mm
>500 mm
>600 mm
>1000 mm
1 2 3 4 5 6 7
1 2 3 4
3 2 1
1 2 3 4 5 6 7
