Assembling and connecting the external battery cabinet >
34020846EN/AD - Page 53
1. Installation
1.11 Assembling and connecting the external battery cabinet

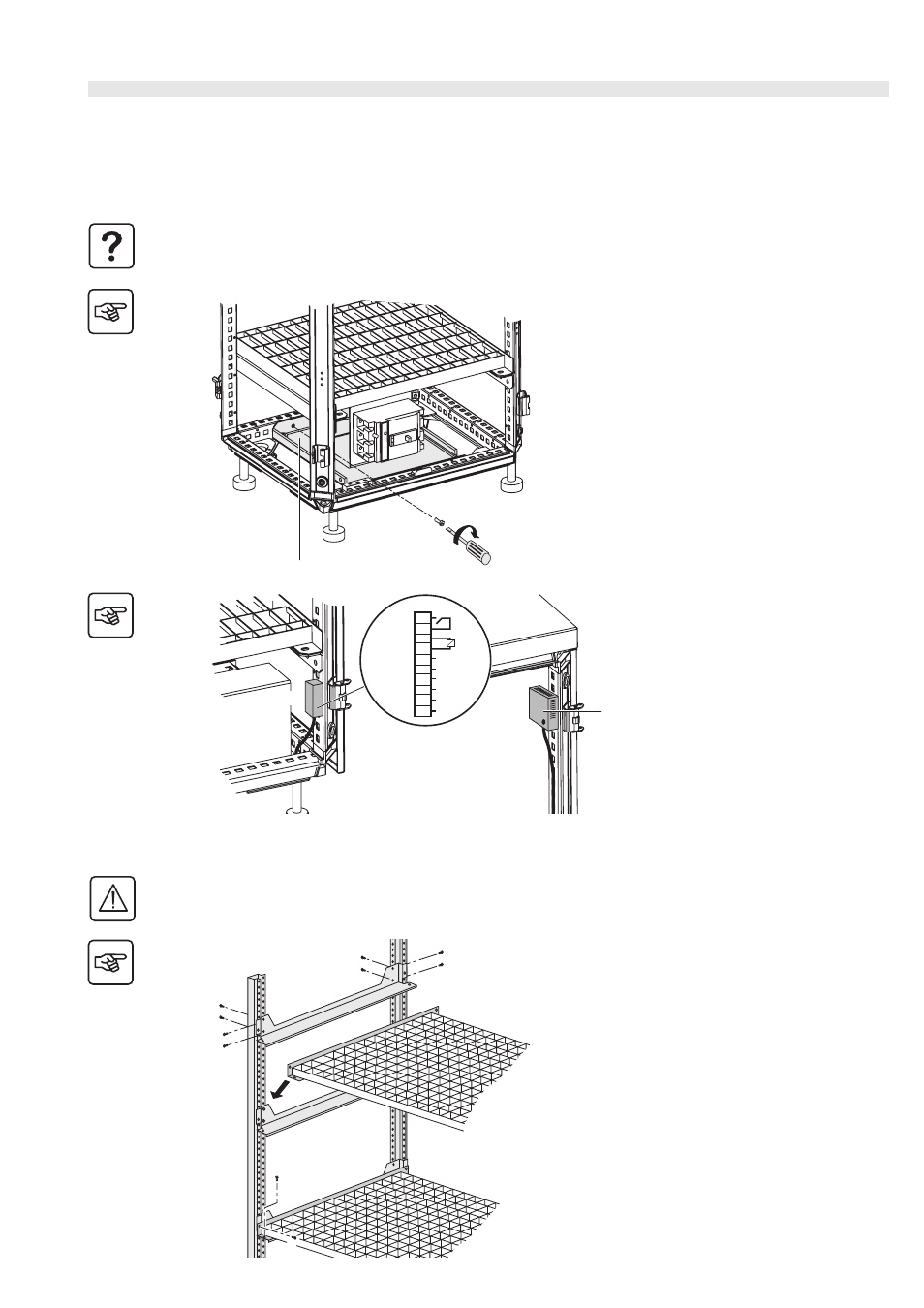

Assembling the empty battery cabinet
Mounting the battery circuit-breaker kit
Mounting the shelves
Please contact our Sales department when selecting the battery circuit breaker.
Only one circuit breaker is necessary even if there are several battery cabinets.
1. Secure the plate.
2. Secure connector XR1.
3. Secure the temperature sensor.
Assembly of the battery cabinet must be carried out by certified personnel (standard EN 50091-1-2).
The minimum clearance between the top of battery cells and the next shelf is 150 mm.
1. Secure the corner supports (6 screws per
support).
2. Install the shelf.
3. Secure the shelf with two screws in each
corner.
1
x4
XR1
3
XR1
1
2
3
4
5
6
7
8
9
10
BC-
BC+
+12V
-12V
2
2
1
1
1
3
3
