LT Security LTN7600 Series NVR (V2.2.3) User Manual
Page 115
User Manual of DS-9600/8600/7700/7600 Series NVR
115
2. Select record files to export.
1) Select an alarm input in the list and click Quick Export button to enter Export
interface.
2) Clicking Details button will take you to the interface with detailed information of
all channels triggered by the selected alarm input.
Note:
Event types contain Alarm Input and Motion.
3) Clicking Quick Export button will export record files of all channels triggered by
the selected alarm input.

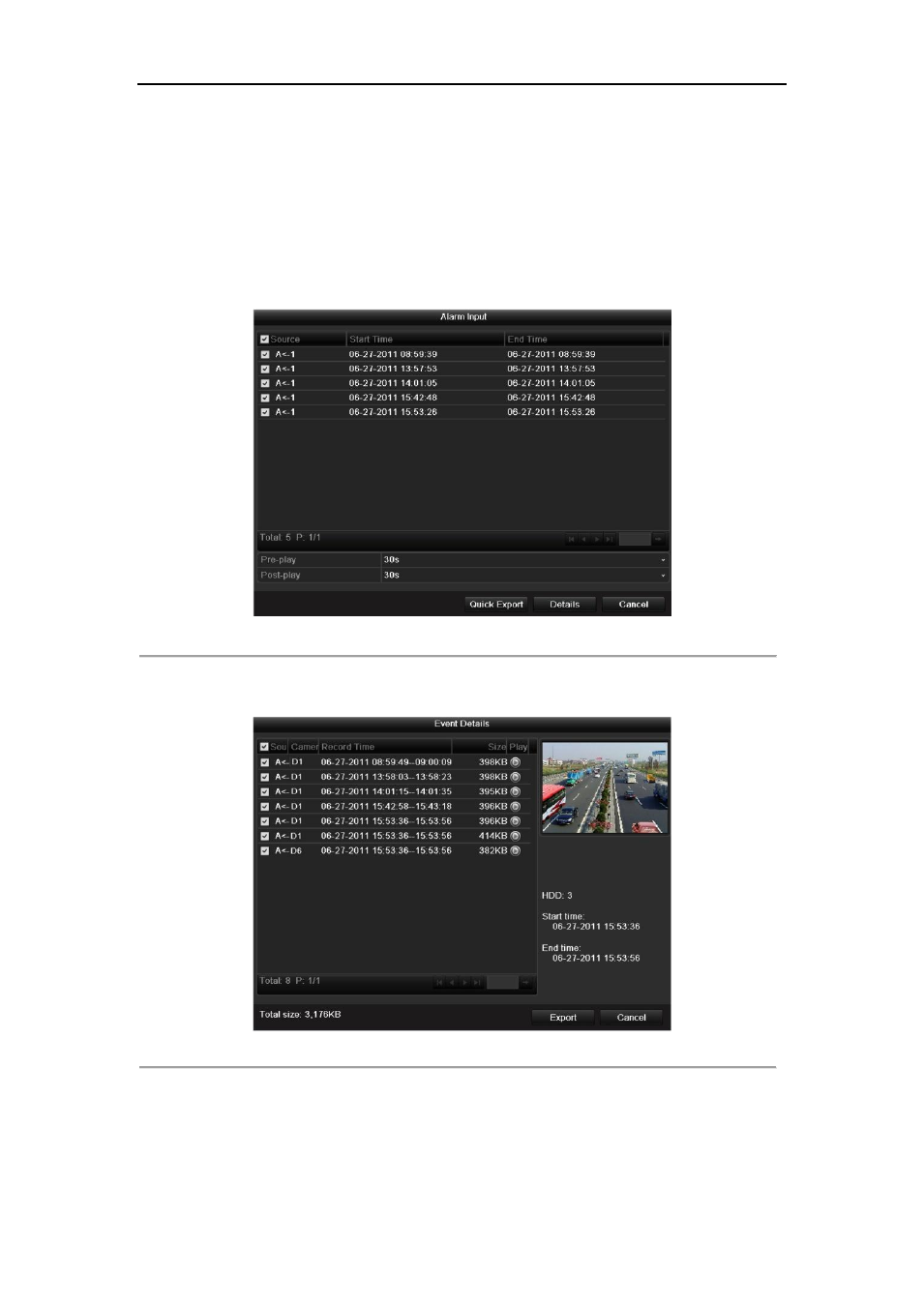

Figure 7. 21 Result of Event Search
4) Click Details button to view detailed information of the record file, e.g. start time,
end time, file size, etc.
Figure 7. 22 Event Details Interface
3. Export.
Click the Export button and start back up.
Note:
If the inserted USB device is not recognized:
•
Click the Refresh button.
