Manual No. 4801-3008 Rev 8-08 Evolution Bird Scale Quick Start Manual 6 of 10
2.7 Enter the Number of Scales Connected to the Controller.
• Use the arrow keys to select the "8. Installation" menu from the
main menu then press the right-arrow key. This menu is only
accessible from the installer mode.
• Press the right-arrow key once again to select the "1. # Of Scales"
menu.
• Use the adjustment buttons to set the proper number scales.
Adjustable from 1 to 4 scales.

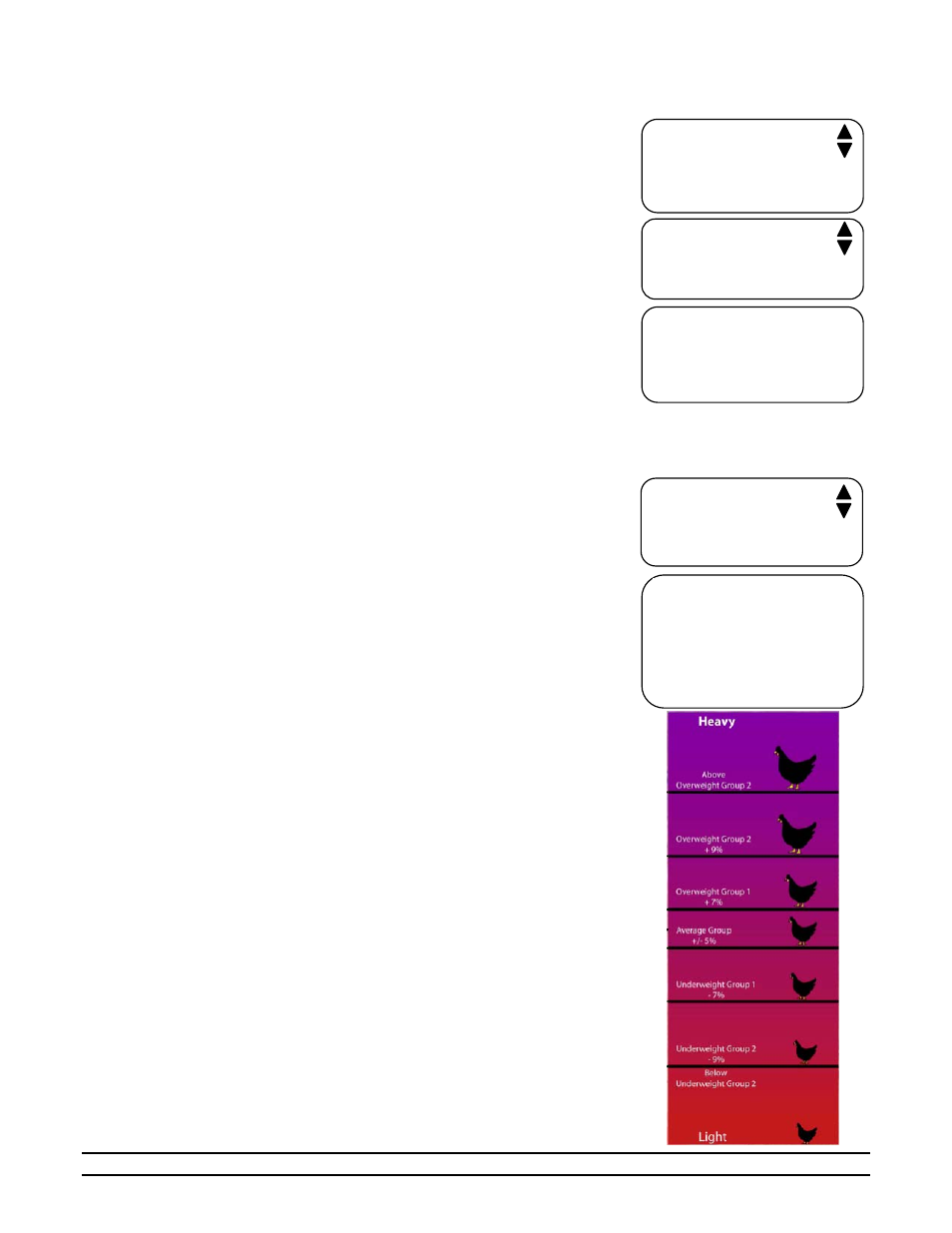

2.8 Define Weight Groups.
• Use the arrow keys to select the "8. Installation" menu from the main menu then press the right-arrow key
(only accessible from the installer mode).
• Use the arrow keys to select the "2. Weigh Groups" menu then
press right-arrow key.
• If coming from the step above (# Of Scales), press the back arrow
once, press the down arrow once then press the right arrow.
• Use the adjustment buttons to set the following parameters:
# of Groups:
This is the number of additional pairs of groups that are added to
the basic groups Select the number of weight groups as follows:
None : Total number of groups = 3
1 : Total number of groups = 5
2 : Total number of groups = 7
Group Size Mode:
Set the group size mode: % or Absolute mode. It is strongly
recommended using the relative group size (%) since this mode avoids
having to change the weight limits as the bird grow.
Average group:
Select the weight range (in pounds or in % depending on the chosen group
size) over which a bird is considered as being part of the average group.
Group 1:
Select the weight range (in pounds or in %) above/below the average group
that defines the first additional weight group (overweight 1/ underweight 1).
This menu is only shown if at least 1 additional group has been enabled
above.
Group 2:
Select the weight range (in pounds or in %) above/below the
oveverweight1/ underweight 1 groups that defines the second additional
group (overweight 2/ underweight 2). This menu is only shown if at least 2
additional groups have been enabled above.
Recommended % setting would be 5% for average group, 7% for group 1
and 9% for group 2.
8. Installation
2. Weigh groups
8.2 Weigh Groups
# of groups: 2
Group size mode: %
Average group 5
Group 1 7
Group 2 9
Main Menu
Bird Weigher Vx.x
8. Installation
8. Installation
1. # of scale
8.1 Installation
# of scales
1
Min: 1 Max: 4
