Hired-Hand Evolution Series Bird Scale Quick-Start Guide User Manual
Page 5
Manual No. 4801-3008 Rev 8-08
Evolution Bird Scale Quick Start Manual
4 of 10
2.1

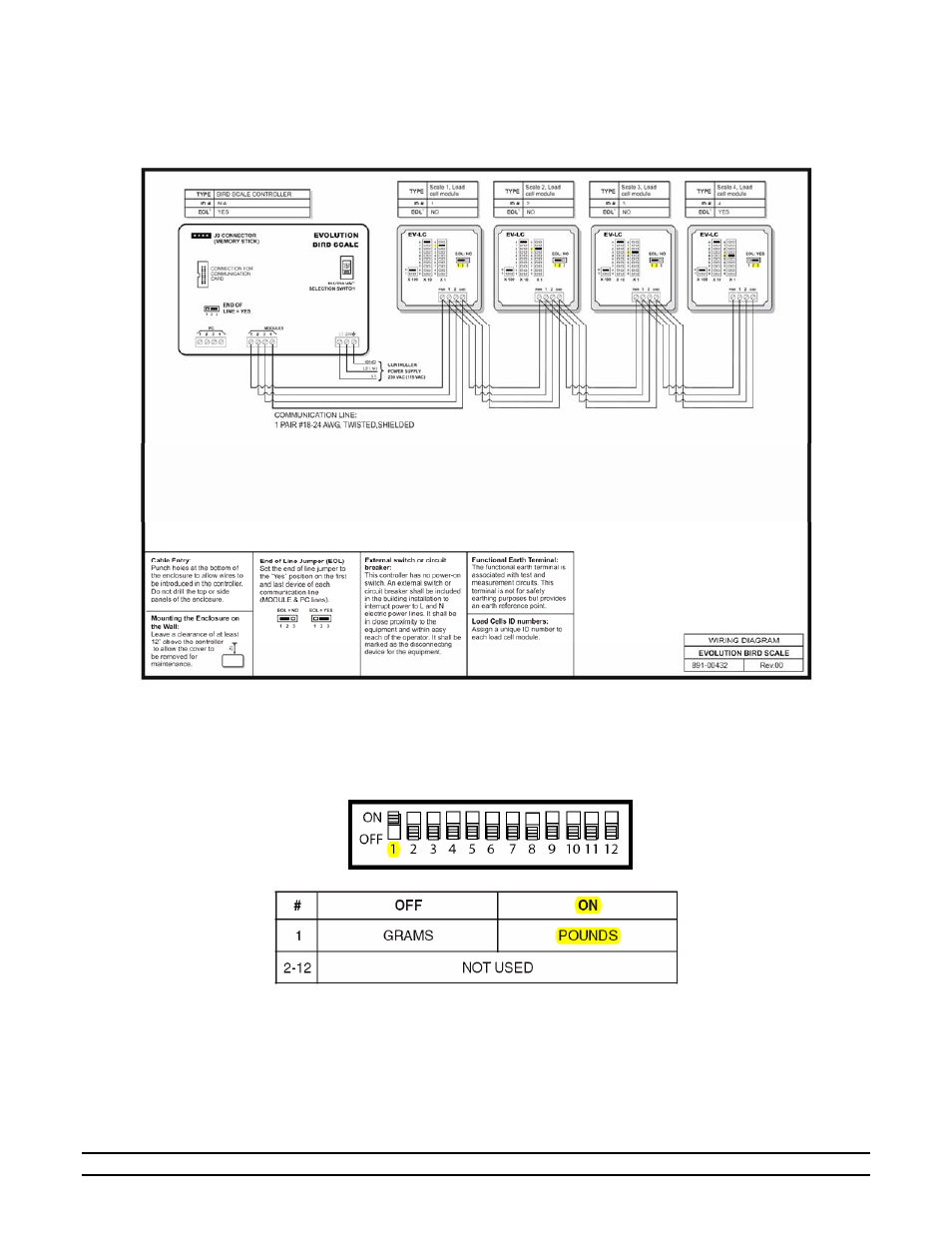

Connect the Control according to the Wiring Diagram in the Manual.
2.2
Set the Internal Switch to Pounds
The internal switches are located inside of the front cover of the controller. When the controller is shipped from the
factory, all the switches are set to OFF.
