Feed manager, Inset a – Hired-Hand Evolution Series 3000/3001: Feed Manager User Manual
Page 18
Part No. 4801-2994 Rev 10-05
FEED MANAGER
Page 18 of 22
8.4

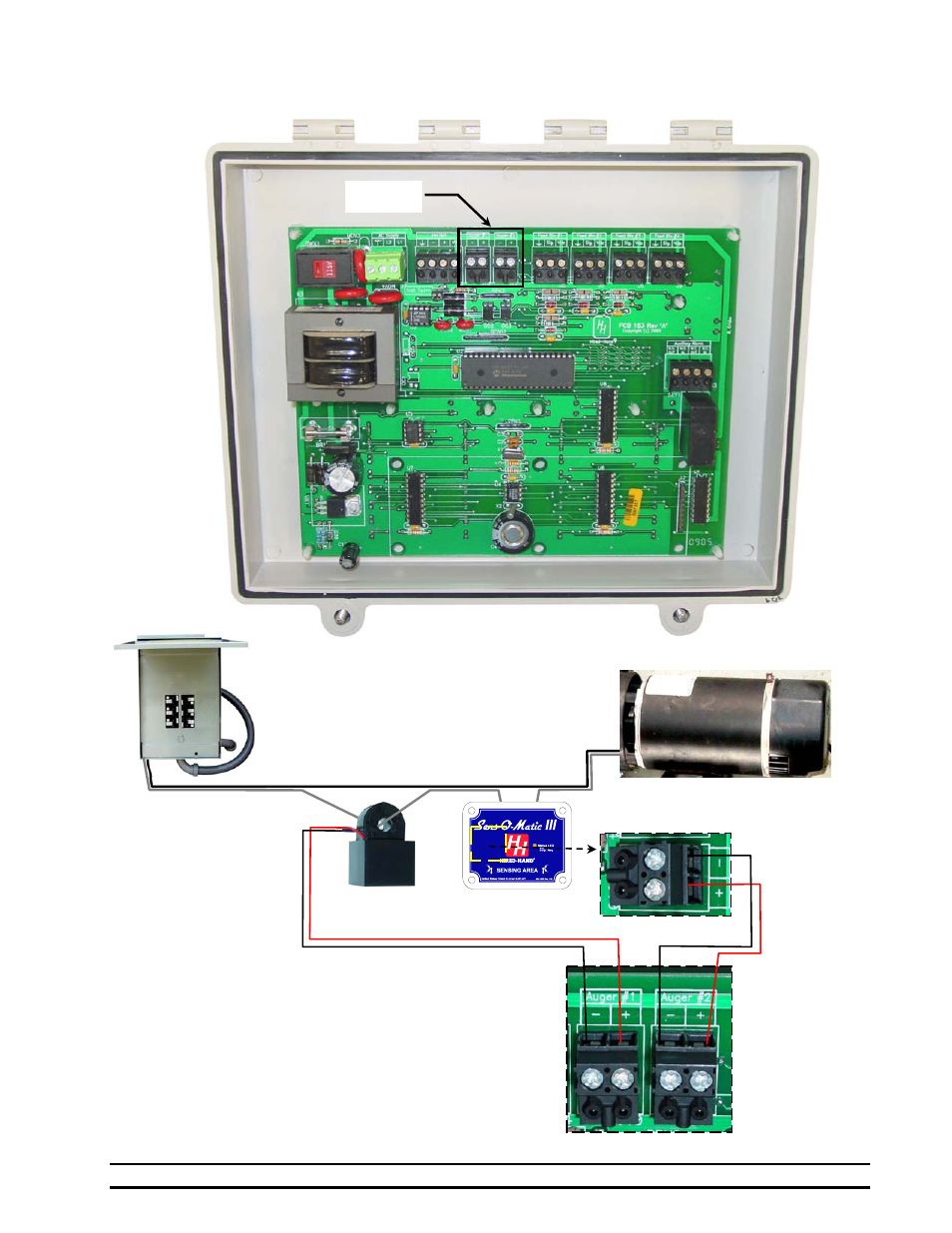

Connecting a Current Sensor or Sens-O-Matic III to the Feed Manager
Current
Sensor
Feed Auger Motor
L2
L1
Feed Manager
Auger #1 and
Auger #2 Circuit
Board
Connections
(Exploded View)
Black
Red
Feed Manager
Inset A
OR
Inset
A
Sens-O-Matic III Circuit Board
Run Sensor Connections (Exploded View)
NOTE: Either a Current Sensor or a
Sens-O-Matic III may be
used to monitor the Feed
Auger Motor Runtime.
Run Sensor
Auger #1
Auger #2
Breaker Box
