Hired-Hand Evolution Series 3000/3001: Add-On Ventilation Kits User Manual
Page 4
Hired-Hand Manufacturing., Inc.
• 1733 Co Rd 68 • Bremen, Alabama 35033 • Phone 256-287-1000 • Fax 256-287-2000
Manual Part No. 4801-5308 rev 09-05
Page 4 of 12
STEP 7

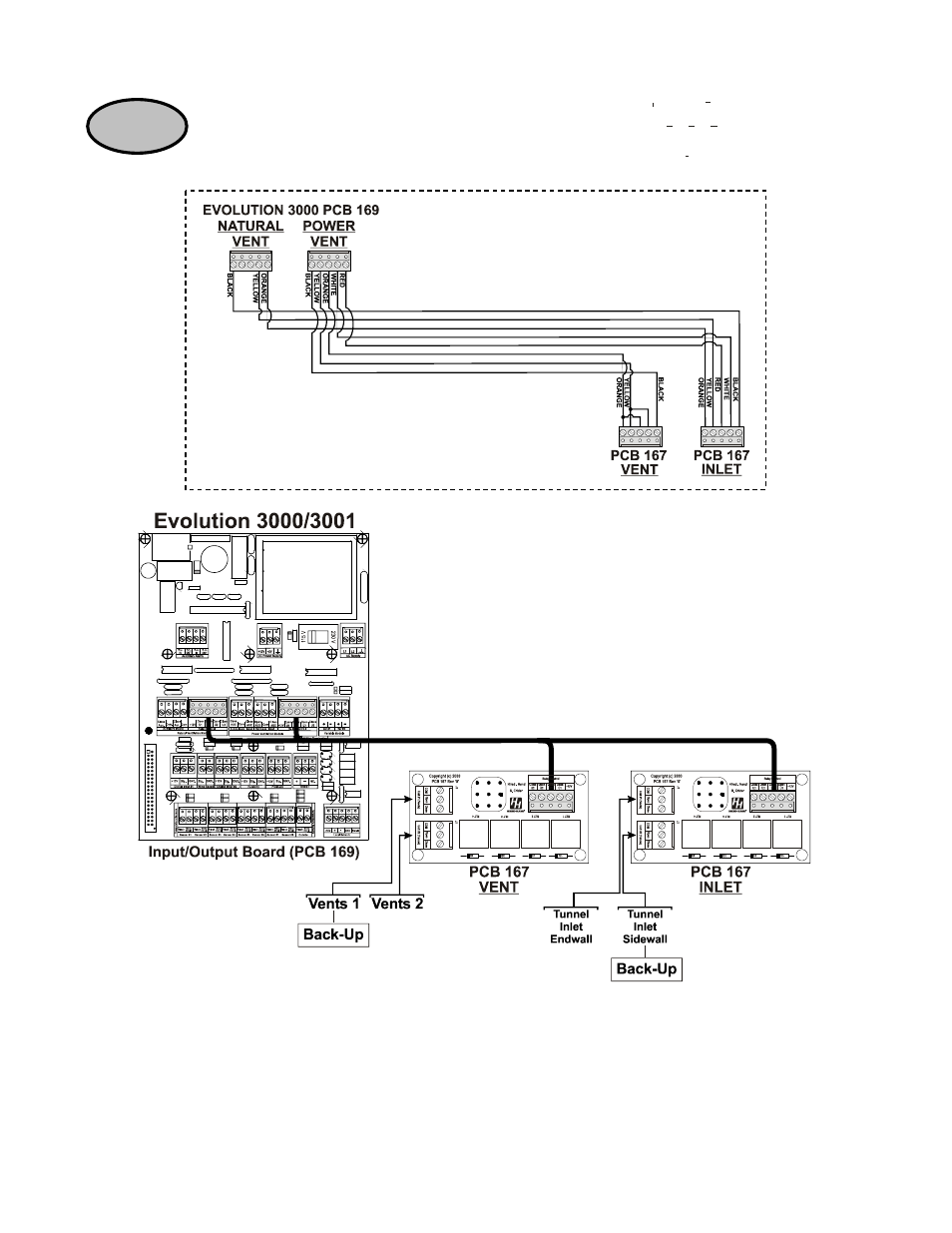

(For the 2-Stage Inlet Kit) Locate the harness that connects between the Ventilation Board (PCB 167) and
the Input/Output Control Board (PCB 169). See Figure 1 on Page 6 of this document for the location of
the boards. Use the wire labels and colors below to verify the wire harness is oriented correctly and
connect the harnesses from the Ventilation boards (PCB 167) to the Relay Control on the Input/Output
Control Board (PCB 169) as shown below.
Harness
from PCB 167 to PCB 169
Natural Ventilation
Board (PCB 167)
Power Ventilation
Board (PCB 167)
(or)
