System 500™ Power Curtain™ Controller
4

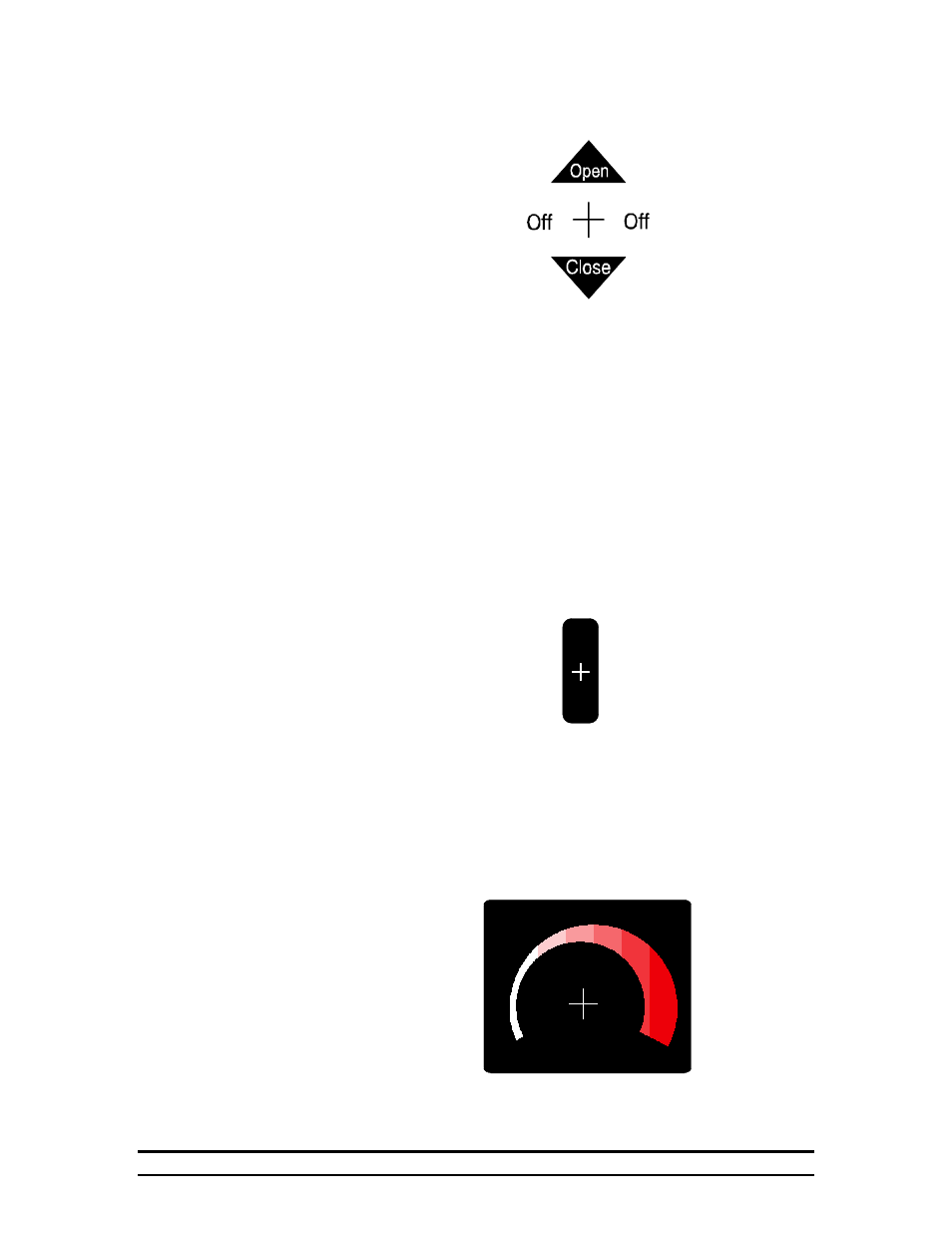

6.2.1.2.
Open/ Close/Off
The open\close\off switch is used for manual control of the curtains.
This switch is only operable when the automatic/manual switch is in
the manual position. At other times, this switch is not operable, thus
its position is not significant. However, it is a good practice to always
leave the switch in the off position.
The “OPEN” position of the switch allows current to flow to the PVR-
H, directing power to the “open” windings of the curtain machine. The
“CLOSE” position of the switch allows current to flow to the PVR-H,
directing power to the “close” windings of the curtain machine. The
“OFF” position does not allow current to the PVR-H, but is not a safe
electrical disconnect for the curtain machine.
6.2.1.3.
Alternate Program Switch
PROGRAM
(Programa)
A
B
Each of the 256 stage programs has another “shadow” program. This
separate program is provided to make the change between brooding
and full house operation. Position A is a program tailored for
brooding, whereas program B is for full house operation.
6.2.1.4.
Target Temperature
TARGET TEMPERATURE
(Temperatura Optima)
INCREASE
DECREASE
(Disminuir)
(Aumentar)
The target temperature knob is used to set the temperature the
controller seeks to maintain (Target Temperature). This setting is very
important, because all system operations other than the timer are
