Hired-Hand Universal Ray Tube Heaters: AG1 Series User Manual
Page 9

9
2.0
Installation • Wiring

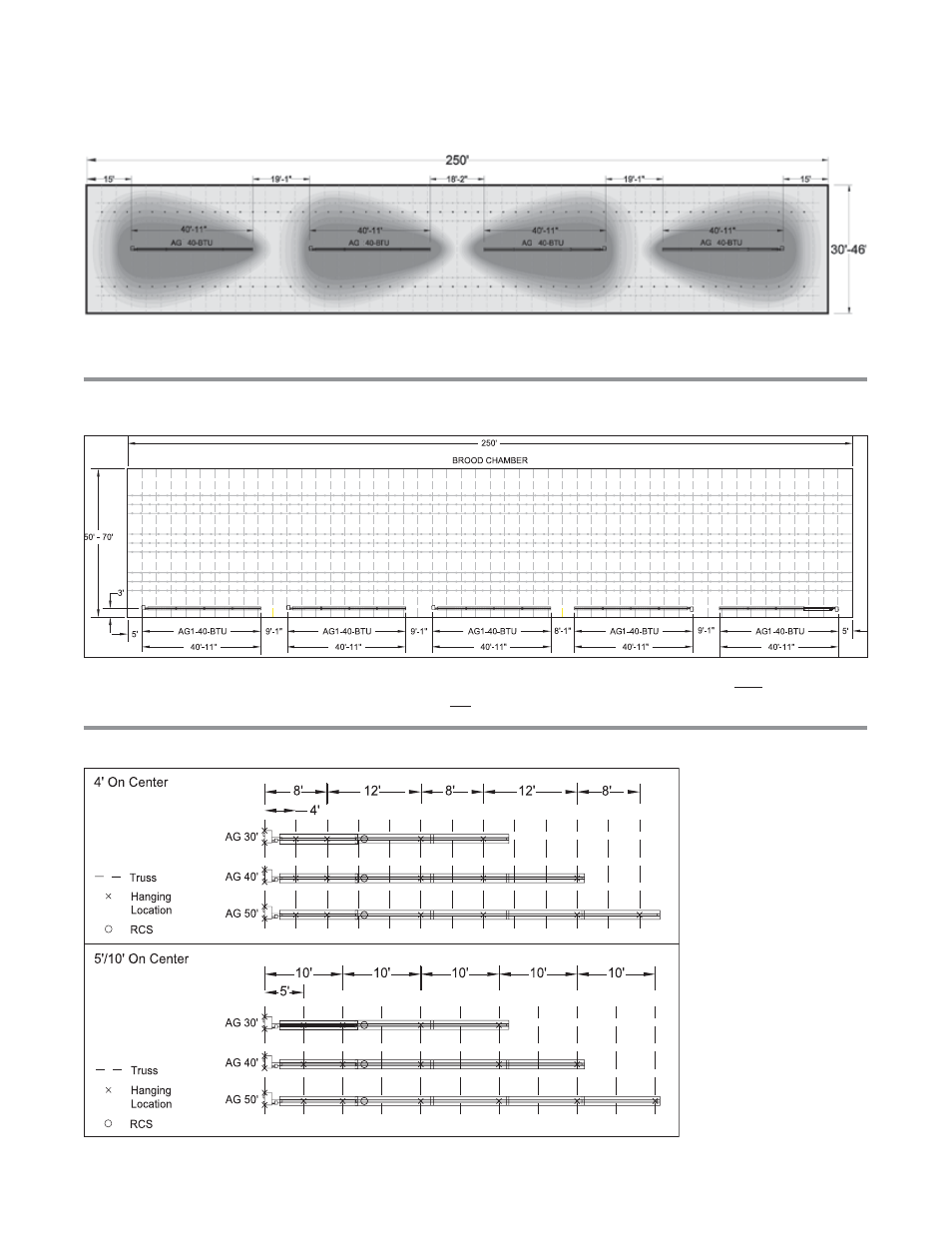

Figure 2.4
•
Sample Brooder Installation Diagrams
A. Center House Installation
B. Side Wall Installation
AG1
Series
C. 30 ft., 40 ft. and 50 ft. Tube Brooder Installation (houses with 4 ft. and 5 ft. on center truss locations).
NOTE: Utilize elongated hangers (TP-19E) on houses 50 feet or more with center house mounting to allow for
a wider throw pattern.
NOTE:
Mount Reflector at a 45° angle toward center. NOTE: Standard hangers (TP-19B) can only be used when
sidewall mounting. Elongated hangers (TP-19E) are not to be used.
1
1
1
1
NOTE: Sidewall
installations may require
additional hangers
depending on spacing.
