Hired-Hand Bunsen Jet Brooders: Super-Saver Bunsen Jet (Radiant Brooder with Pilot Ignition) User Manual
Page 9
Super Saver Bunsen Jet Brooder with SPI
7

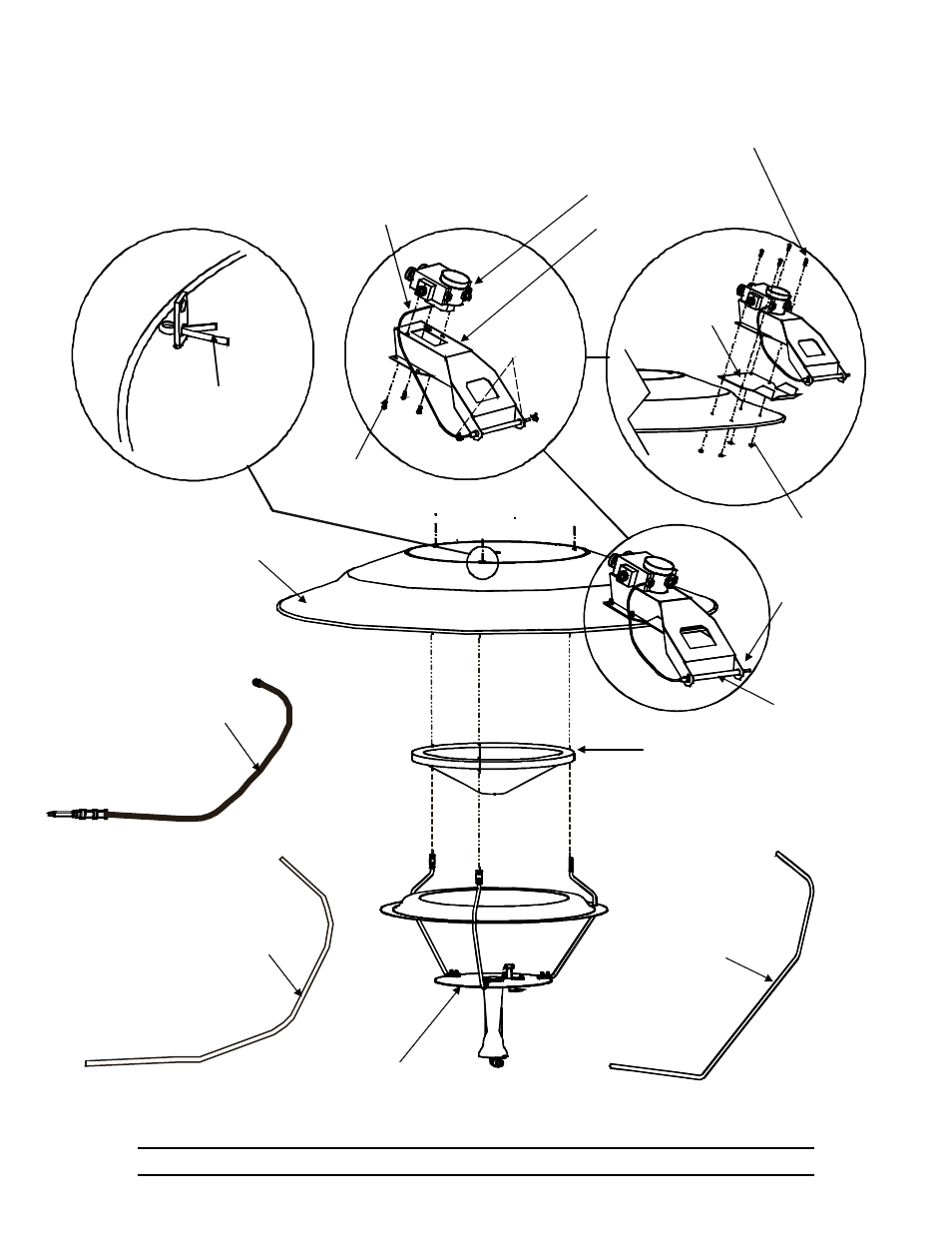

Figure 5.
Final Brooder Assembly
Gas valve bracket
and gas valve.
Cotter Pin
Heat shield
Canopy
Thermocouple
Ceramic
Element
Pilot Tube
Gas Tube
Burner Unit
Assembly
Capillary
Tubing
Gas Valve
Gas Valve
Bracket
10-24 X 1/4
Screws
8-32 X 1/4
Screws
8-32 X 1/2
Nuts
Thermostat
Bulb
NOTE: Insert
thermostat bulb
Into holes of
bracket
Retaining
Clamps
