HATZ Diesel 4M42 - Manual (Page 68)

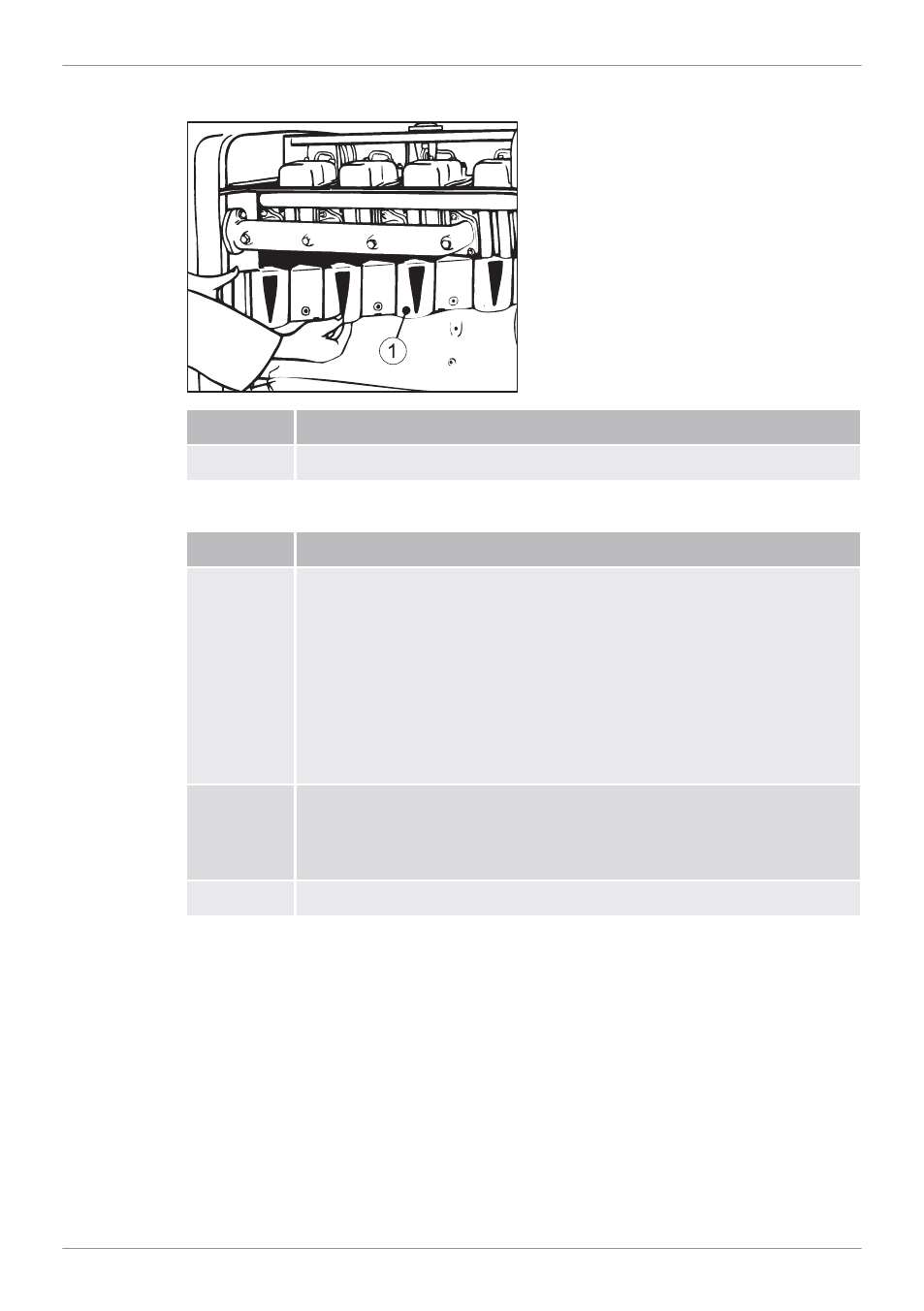

Overview
Pos. Designation
1 Baffle plate
Preparation
Step Activity
1 Unscrew the following on encapsulated engines:
▪ Hood
▪ Side wall with speed control lever
▪ Cover plate on operating side
▪ Exhaust air duct
▪ Cover plate on exhaust side
(see the chapter 5 Engine design, page 25).
1 Remove the following on engines without a capsule:
▪ Side trim panel
▪ Cooling air guide for lubrication oil cooler
2 Unscrew the baffle plate (1)
Maintenance 2-4L41C, 2-4M41, 2-4M41Z, 4L42C, 4M42
68 Operator's Manual HATZ
