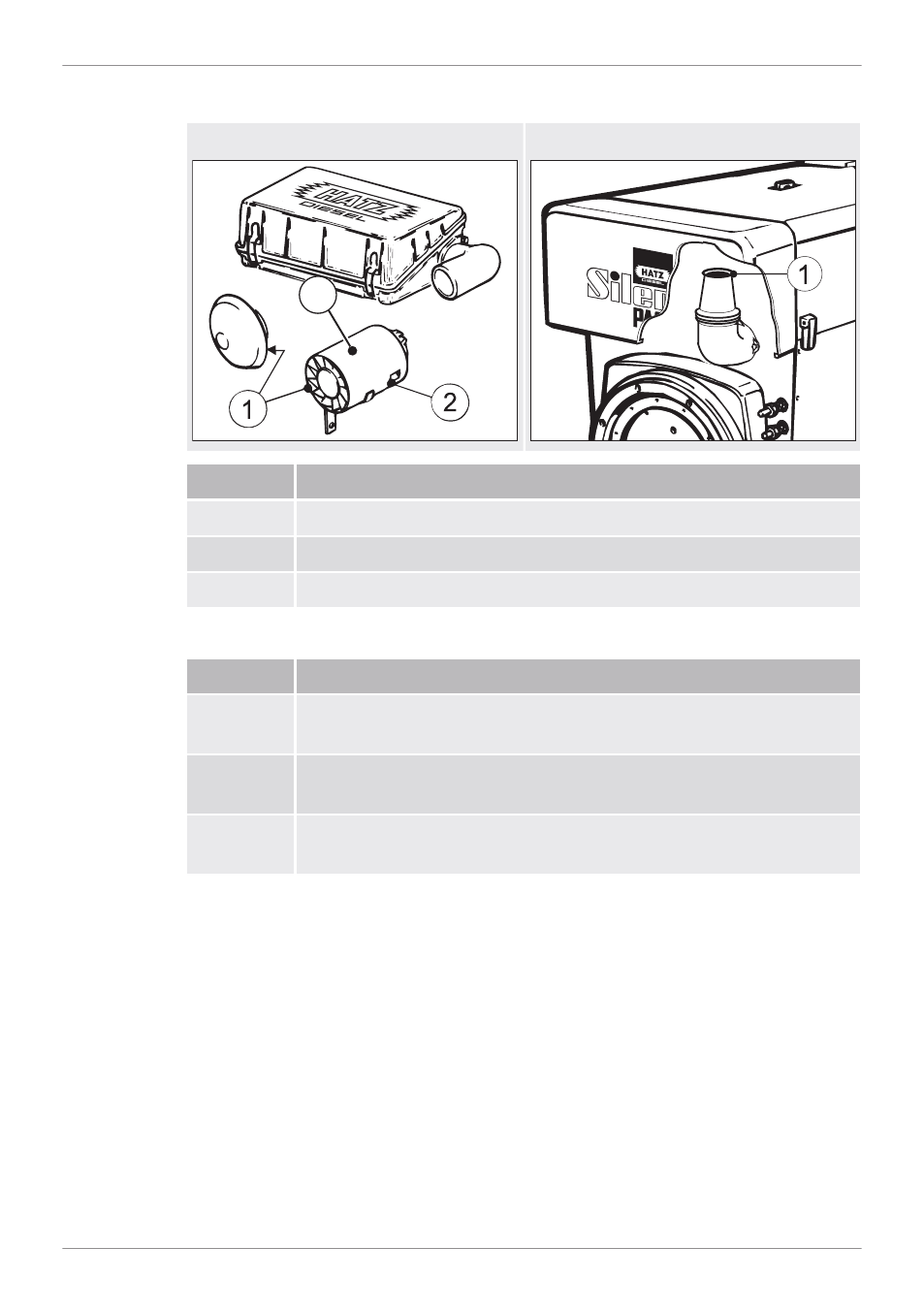

Overview
2-4M41 and 4M42
3
2-4L41C and 4L42C
Pos. Designation
1 Intake opening for combustion air
2 Dust outlet opening
3 Cyclone (option)
Procedure
Step Activity
1 Check the intake opening (1) for coarse contamination such as
leaves, heavy dust deposits, etc., and clean if necessary.
2 Check that the dust outlet opening (2) at the bottom of the cy-
clone precleaner is clear.
3 If the dirt contamination is oily, remover the cyclone (3) and
clean it.
2-4L41C, 2-4M41, 2-4M41Z, 4L42C, 4M42 Maintenance
HATZ Operator's Manual 61
