18
Installing the Motherboard

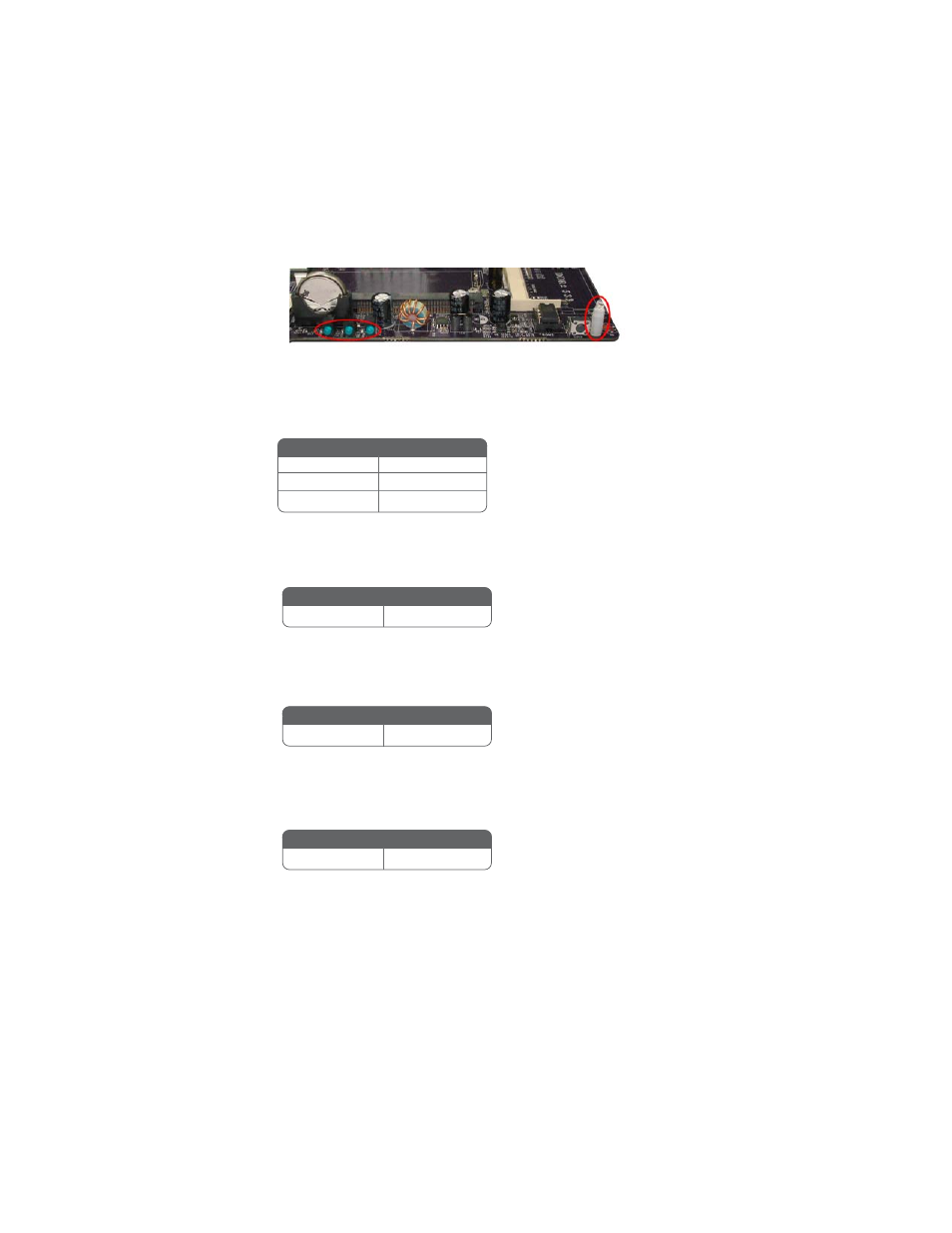

LED1~4
LED1 (System Power LED)
The system power LED can be used to indicate system power status. The LED is on
when the system is operating. The LED keeps blinking when the system is in S1/S3
sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
System Status LED
S0 On
S1/S3 Blinking
S4/S5 Off
LED2 (HDD LED)
The LED2 can be used to indicate HDD status. The LED keeps blinking when
the system is in Active state.
System Status LED
Active Blinking
LED3 (LAN LED)
The LED3 can be used to indicate LAN status. The LED keeps blinking when the
system is in Active state.
System Status LED
Active Blinking
LED4 (Reader Card LED)
The LED4 can be used to indicate Reader Card status. The LED keeps blinking when
the system is in Active state.
This concludes Chapter 2. The next chapter covers the BIOS.
System Status LED
Active Blinking
