14
Installing the Motherboard

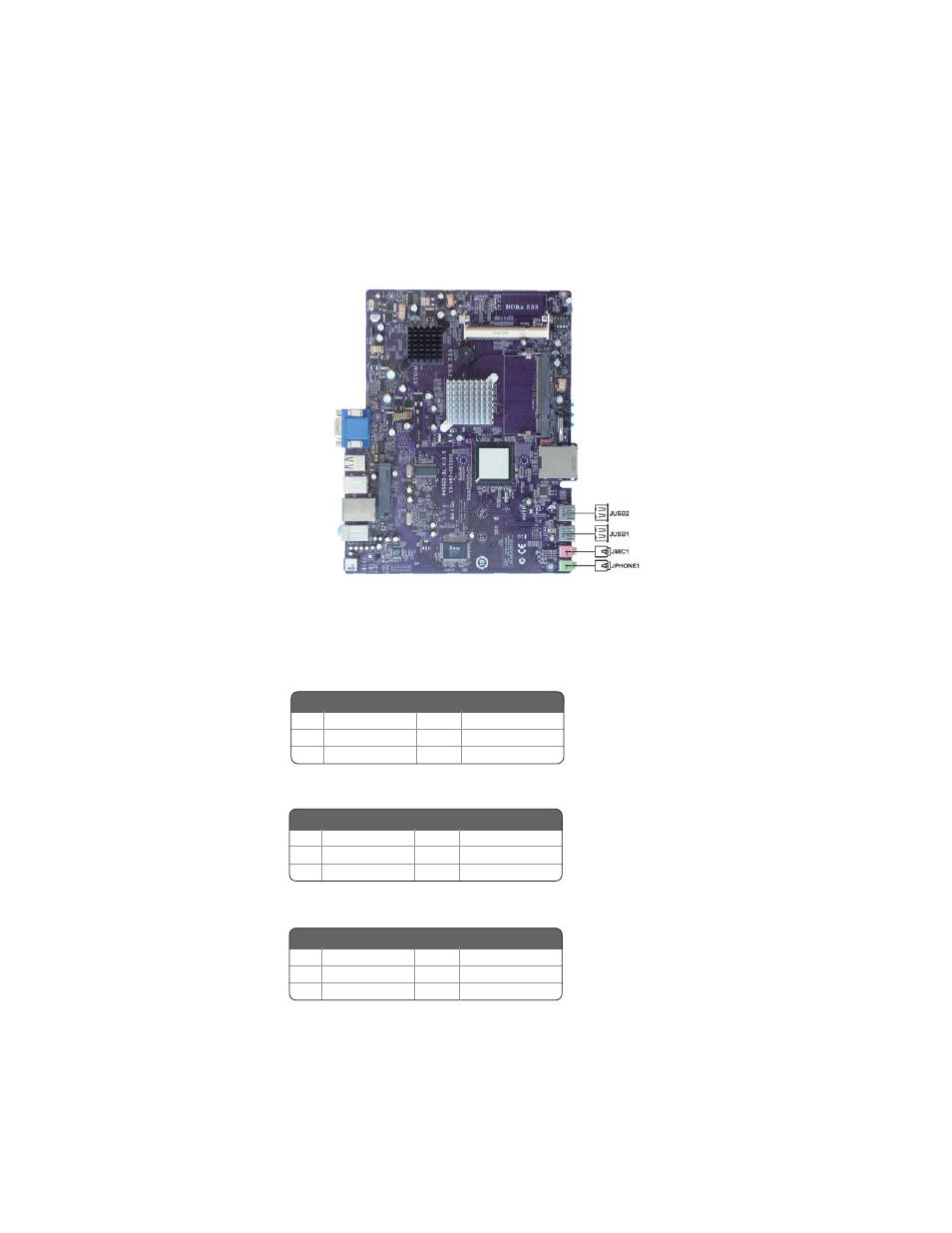

Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
JUSB1~2: Front Panel USB Ports
The motherboard has four USB ports installed on the rear edge I/O port array.
Additionally, some computer cases have USB ports at the front of the case. If you
have this kind of case, use auxiliary USB connector to connect the front-mounted
ports to the motherboard.
JPHONE1: Front Audio Line-out Jack
JMIC1: Front Audio Microphone Jack
5
Pin Signal Name Pin Signal Name
GND 2 MIC2_L
MIC2_R 4 MIC2_JD
N/C GND 6
1
3
1
3
5
Pin Signal Name Pin Signal Name
USBVCC 2 USBP4-(DATA-)
USBP4+(DATA+) 4 GND
GND
GND 6
5
Pin Signal Name Pin Signal Name
GND 2 LINE2_L
LINE2_R 4 LINE2_JD
N/C GND 6
1
3
